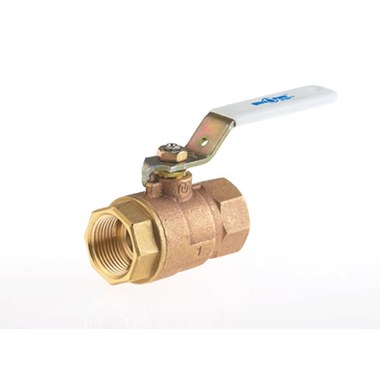

MILWAUKEE UPBA100S-114 Ball Valve

Product Description

The MILWAUKEE UPBA100S-114 is a lead-free, 2-piece ball valve suitable for different plumbing tasks. This valve features a durable cast bronze body and a robust 316 stainless steel ball. It has a standard port with an orifice diameter of 1.06 inches and nominal dimensions of 1-1/4 inches. The threaded design allows easy connection in diverse applications.

• Blow-out proof stem enhances safety.
• Non-shock design reduces pressure spikes.
• Includes RPTFE seat filled with 15% glass for added strength.

Product Highlights

This valve is ideal for high-pressure plumbing applications and ensures reliable operation.

Product Information

Standard Information

• Brand: MILWAUKEE
• MPN: UPBA100S-114

Technical Specifications

• Body Material: Cast Bronze
• End Style: Threaded
• Nominal Size: 1-1/4 inches
• Port Type: Standard
• Softgoods Material: RPTFE
• Ball Material: 316 Stainless Steel
• Inlet to Outlet Length: 3-1/2 inches
• Orifice Size: 1.06 inches
• Pressure Rating: 600 psig
• Series: UPBA100S
• Top to Inlet Center: 2.66 inches
• Trim Material: 316 Stainless Steel Stem and RPTFE Seat
• Type: 2-Piece
