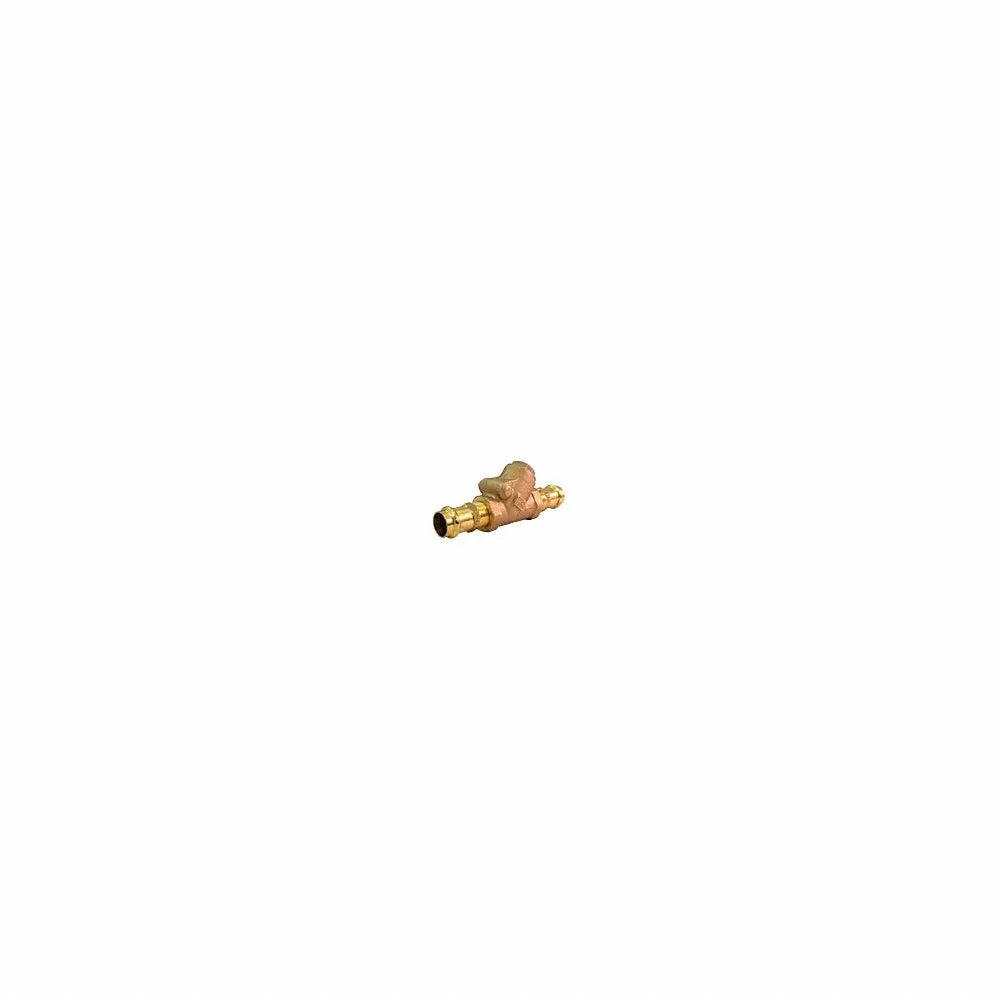

MILWAUKEE UP509-P2-114 Swing Check Valve

Product Description

The Milwaukee UP509-P2-114 is a swing check valve intended for horizontal installation. Made from lead-free bronze, this valve is ideal for potable water systems. It features a press connection type on both ends, each with a diameter of one and one-quarter inches.

• Valve Size: 1 1/4 Inch
• Body Material: Lead Free Bronze
• Connection Type: Press x Press

Product Highlights

This valve supports smooth flow in horizontal setups with efficient functionality.

Product Information

Standard Information

• Item: Swing Check Valve
• Application: Potable Water

Technical Specifications

• Cap To Inlet Center: 2.13 inches
• Connection Type: Press x Press
• Length: 7.63 inches
• Material: Bronze
• Mechanism And Body Design: Horizontal Swing
• Overall Height: 2.13 inches
• Pipe Size: 1.25 inches
• Temperature: 250°F
• Cracking Pressure: 0.5 psi
• Disc Material: Brass
• Flow Rate: 54 GPM
• Max Pressure (CWP): 200 psi
• Operating Temperature: -20°F to 150°F
• Valve Body Style: T-Style
• Valve Series: UP509
• NSF Certifications: NSF 61
