Milwaukee Tool 2205-20 Fork Meter 200 A (Each) Replacement MPN

Product Description

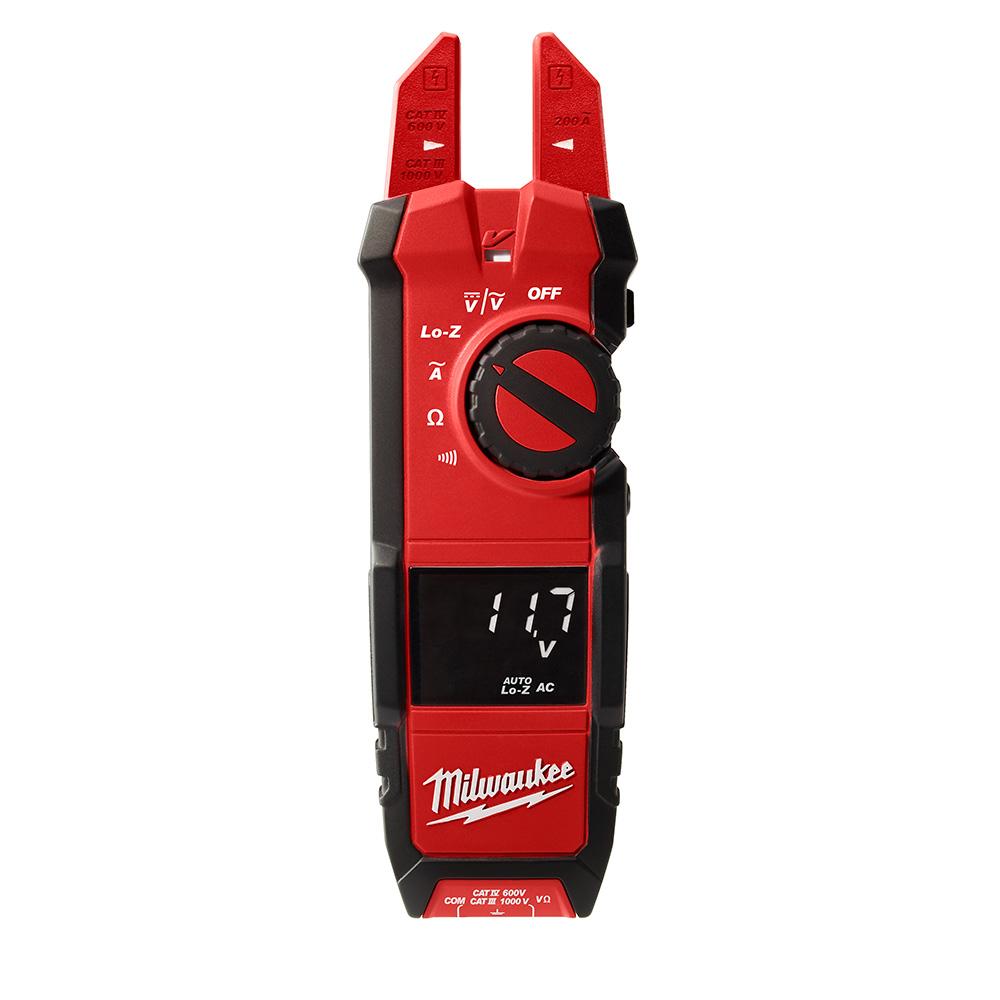

The Milwaukee fork meter is a heavy duty True-RMS electrical tester for professional residential, commercial, and industrial applications. The 2205-20 tool combines functions for current measurement, voltage measurement, voltage detection, and task lighting. It features a wide fork opening of 0.63 inches and a maximum current measurement of 200 amps. The high contrast white-on-black display enables easy reading, even in low-light conditions.

• Measures up to 200 A with a 0.63 in jaw opening
• Wide voltage range up to 1000 V AC/DC
• True-RMS for accurate measurements across all applications

Product Highlights

This electrical tester is essential for anyone needing reliable measurements in various settings.

Product Information

Standard Information

• Catalog Number: 2205-20
• Manufacturer: Milwaukee Tool

Technical Specifications

• Voltage Rating: 1000 VAC/VDC
• Amperage Rating: 200 A
• Display Type: High Contrast White on Black LCD
• Jaw Capacity: 0.63 inches
• AC Current Accuracy: +/- 2% + 5 Digits
• Frequency Rating: 50/60 Hz
• Operating Temperature: 14 to 122 degrees F
• Battery Type: AA Alkaline
• Safety Rating: CAT IV 600 V / CAT III 1000 V
• Weight: 1.08 lbs
