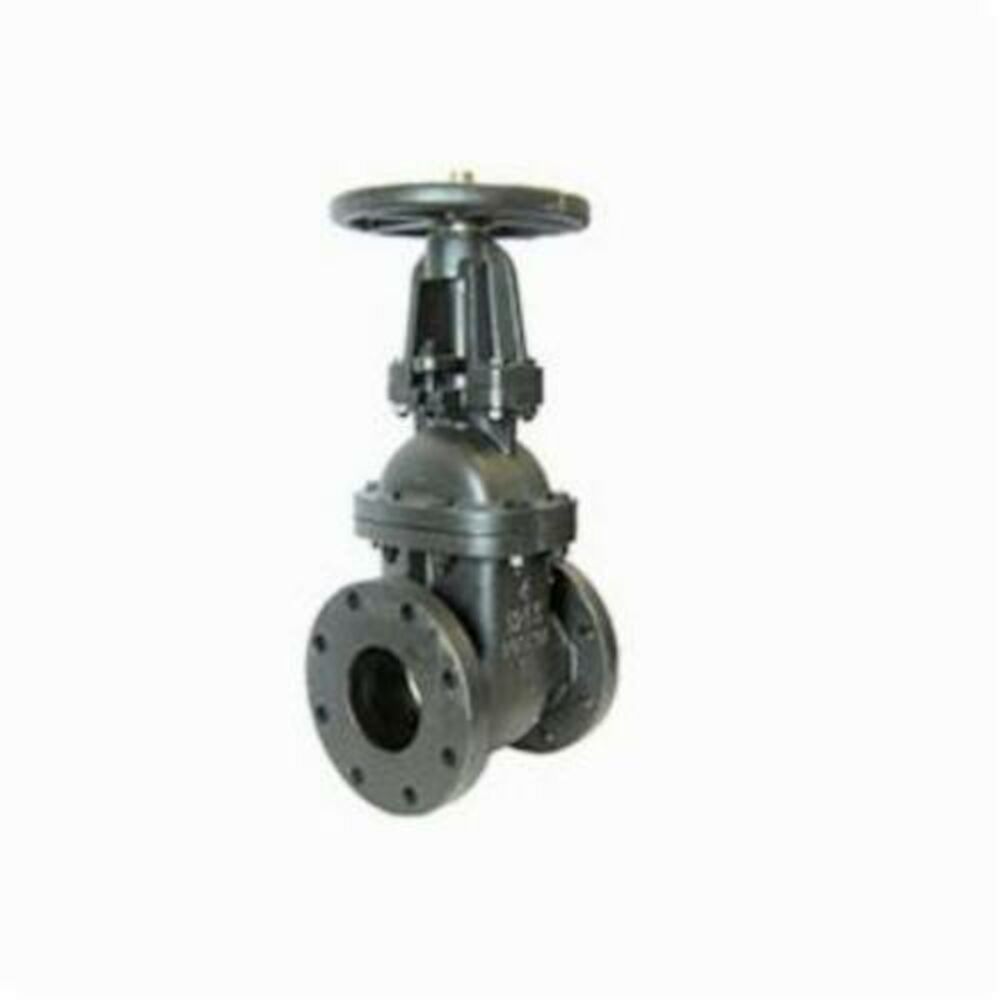

Milwaukee F2885M-400 Cast Iron Flanged Gate Valve

Product Description

The Milwaukee F2885M-400 is a four-inch flanged gate valve made for fluid control. This valve features a cast iron body with brass trim and a handwheel for manual operation. It is designed with a pressure rating of two hundred psi WOG. The valve includes a separate yoke bolted to the bonnet and a solid wedge disc.

• Flanged end style for secure connection
• Outside stem and yoke (OS&Y) design for durability
• Handwheel for easy manual actuation

Product Highlights

This gate valve is essential for controlling the flow of fluids in various plumbing applications. It is reliable and easy to operate with a cast iron construction for long-lasting performance.

Product Information

Standard Information

• Brand: Milwaukee Valve
• Domestic/Import: Import

Technical Specifications

• Actuator Type: Hand Wheel
• Body Material: Cast Iron
• End Style: Flanged
• Inlet to Outlet Length: 9 inches
• Nominal Size: 4 inches
• Pressure Rating: 200 psi WOG
• Series: F-2885-M
• Softgoods Material: Graphite Packing/Body Gasket
• Top to Inlet Center: 22-3/4 inches
• Trim Material: Brass
• Hand Wheel Diameter: 10 inches
