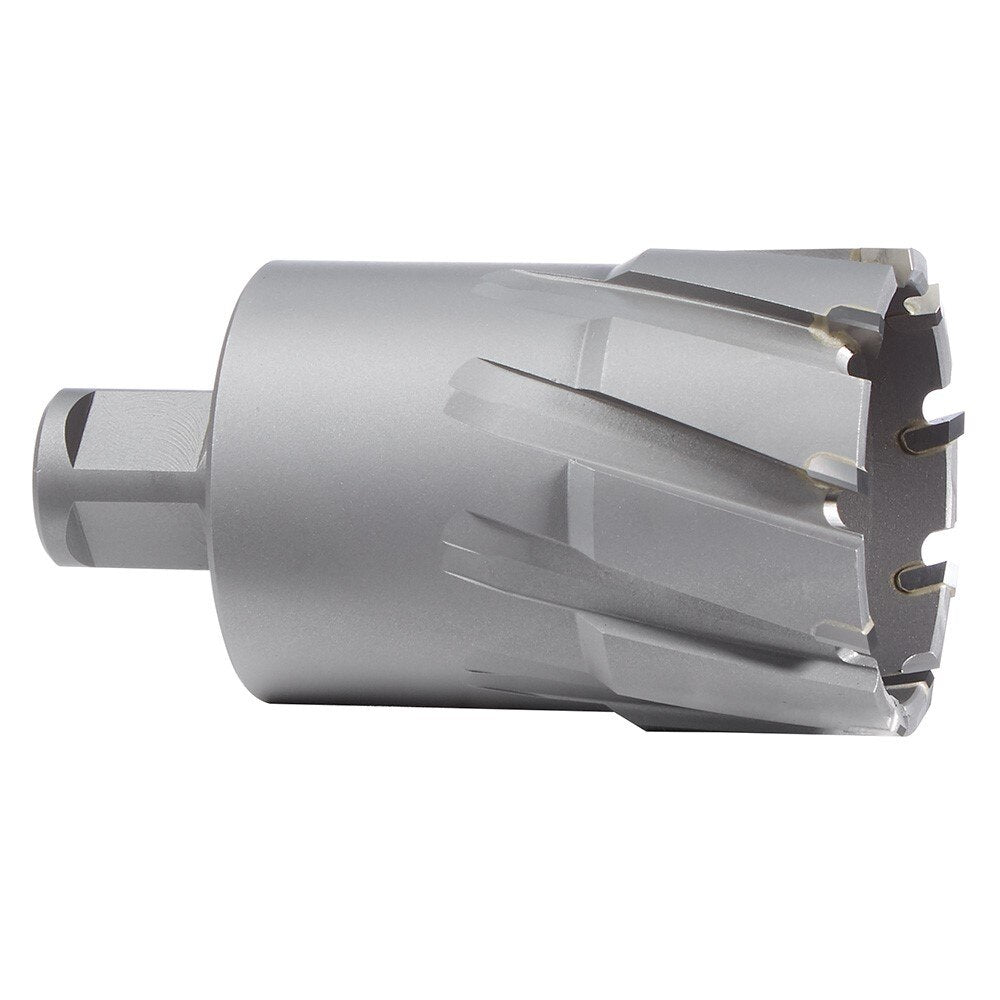

Milwaukee 49-59-4212 Tct Annular Cutter 2-1/8 in

Product Description

The MILWAUKEE 49-59-4212 is a tungsten carbide tipped (TCT) annular cutter designed for fast, clean hole cutting in hard metal materials. It features an advanced tooth geometry that simultaneously cuts, cleans, and clears chips from the bore while drilling, reducing heat buildup and extending tool life. The thin-wall design displaces less material than standard twist drills or competing annular cutters of the same diameter, producing burr-free holes at higher speeds. Rated for use in stainless steel, cast iron, and other hard metals, this cutter is a production-grade tool for licensed tradespeople and fabricators working with structural and industrial materials.

This annular cutter is suited for hard metal applications in commercial fabrication, mechanical contracting, structural steel work, and industrial maintenance settings. The 3/4-inch Weldon shank is compatible with most small and large magnetic drill presses when used with the appropriate arbor. It is sold as a single cutter and requires pilot pin 49-59-0014 for standard annular cutter operation. Typical users include ironworkers, pipefitters, millwrights, and general contractors performing on-site drilling in ferrous metals including stainless steel and cast iron.

Key Features

• Advanced tooth geometry cuts, cleans, and clears material simultaneously during drilling
• Thin-wall design removes less material for faster hole completion and reduced tool wear
• Produces burr-free holes in hard metals including stainless steel and cast iron
• 3/4-inch Weldon shank fits most small and large magnetic drill presses with correct arbor
• Compatible pilot pin: 49-59-0014

Compatibility

Fits most small and large magnetic drill presses equipped with a 3/4-inch Weldon shank arbor. Use with pilot pin 49-59-0014 for standard annular cutter operation.

Installation Notes

Installation should be performed by a qualified tradesperson familiar with magnetic drill press operation. Before mounting or removing the cutter, ensure the drill press is powered off and unplugged. Secure the Weldon shank fully into the arbor chuck and tighten the set screw before beginning any cut. Always use the appropriate pilot pin to prevent cutter walk on the workpiece surface.

Technical Specifications

• Cutting Diameter: 2-1/8 inches
• Cutter Length: 3.65 inches
• Shank Type: 3/4-inch Weldon
• Tip Material: Tungsten Carbide Tipped (TCT)
• Application: Hard metals including stainless steel and cast iron
• Package Weight: 0.8 pounds
• Package Length: 4.7 inches
• Package Width: 2.4 inches
• Package Height: 2.35 inches
• Sold As: Each
• UPC: 0045242513918

Standard Information

• Brand: MILWAUKEE
• Manufacturer Part Number: 49-59-4212
