Milwaukee 49-59-2000 Hss Annular Cutter 2 Inch Dia

Product Description

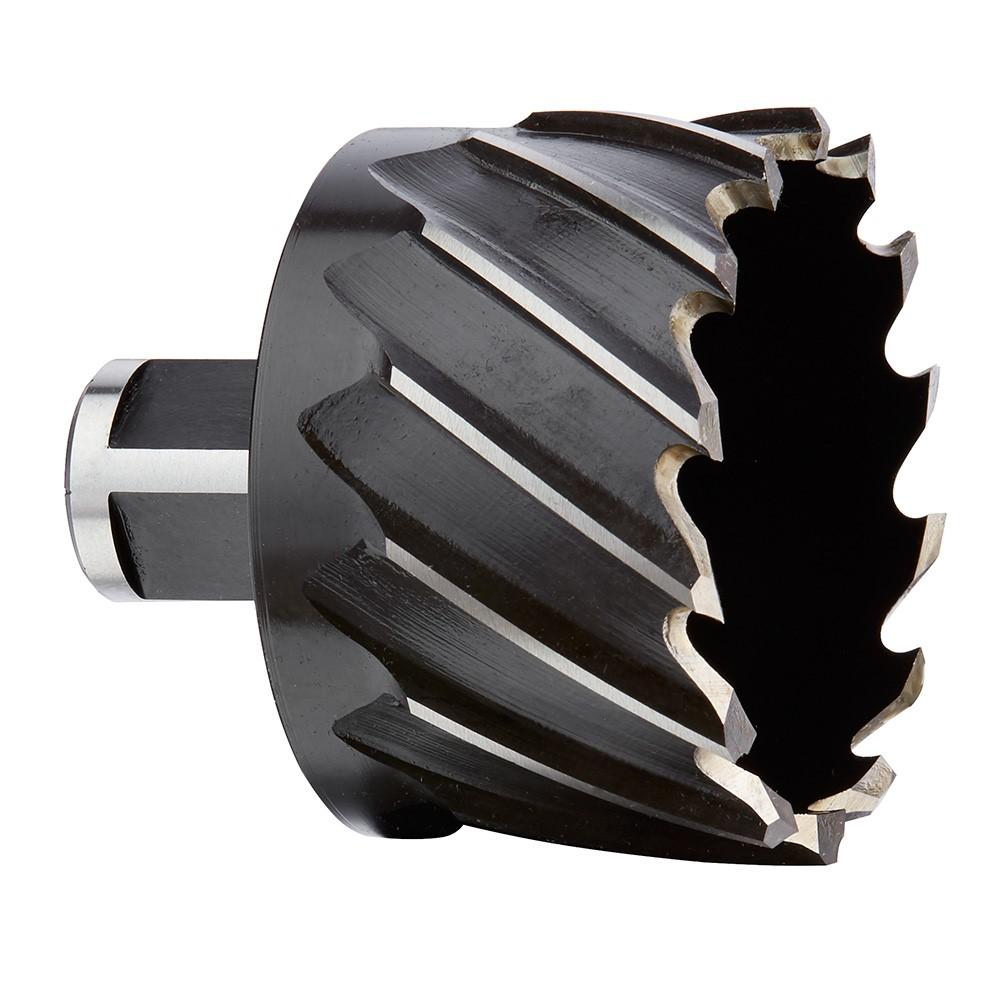

The MILWAUKEE 49-59-2000 is a high speed steel (HSS) annular cutter designed for fast, clean hole-cutting in mild steel applications ranging from sheet metal to thick plate. The cutter features a thin-wall construction paired with an advanced tooth geometry that cuts and clears material simultaneously during drilling, reducing cycle time and producing burr-free holes. The 3/4-inch Weldon shank is compatible with most small and large magnetic drill presses, with the appropriate arbor required for larger units. At 0.51 pounds, it is a lightweight tool built for repeated use in fabrication, structural, and mechanical installation work performed by ironworkers, pipefitters, and maintenance mechanics.

The 49-59-2000 is suited for mild steel drilling in industrial, commercial, and on-site fabrication environments. Its 2-inch cutting diameter makes it a common choice for conduit knockout work, pipe flange preparation, and structural steel hole placement. The thin-wall design displaces less material than standard twist drill equivalents of the same diameter, which speeds up production and extends cutter life on high-volume jobs. The ejector pin used with this cutter is part number 49-59-0011, sold separately.

Key Features

• Advanced tooth geometry cuts and clears chips in a single pass for faster, burr-free holes
• Thin-wall construction removes less material than comparable-diameter twist drills
• 3/4-inch Weldon shank fits most small magnetic drill presses and large units with correct arbor
• Rated for mild steel applications including sheet metal and thick plate
• Compatible ejector pin: 49-59-0011 (sold separately)

Compatibility

Designed for use with magnetic drill presses accepting a 3/4-inch Weldon shank. Large magnetic drill presses require the correct arbor adapter. Ejector pin 49-59-0011 is recommended for use with this cutter.

Installation Notes

Installation should be performed by a qualified tradesperson familiar with magnetic drill press operation. Secure the magnetic base fully to a clean, flat steel surface before drilling and verify the workpiece is clamped or otherwise restrained. Always cut power to the drill press and allow the cutter to come to a complete stop before changing tooling or clearing chips. Use appropriate cutting fluid for mild steel to maintain cutter life and reduce heat buildup.

Technical Specifications

• Cutting Diameter: 2 inches
• Cutter Length: 2.358 inches
• Shank Size: 3/4 inch Weldon
• Material: High Speed Steel (HSS)
• Package Weight: 0.51 pounds
• Package Length: 2.45 inches
• Package Width: 3.85 inches
• Package Height: 2.35 inches
• UPC: 0045242207732
• Sold As: Each

Standard Information

• Brand: MILWAUKEE
• Manufacturer Part Number: 49-59-2000
