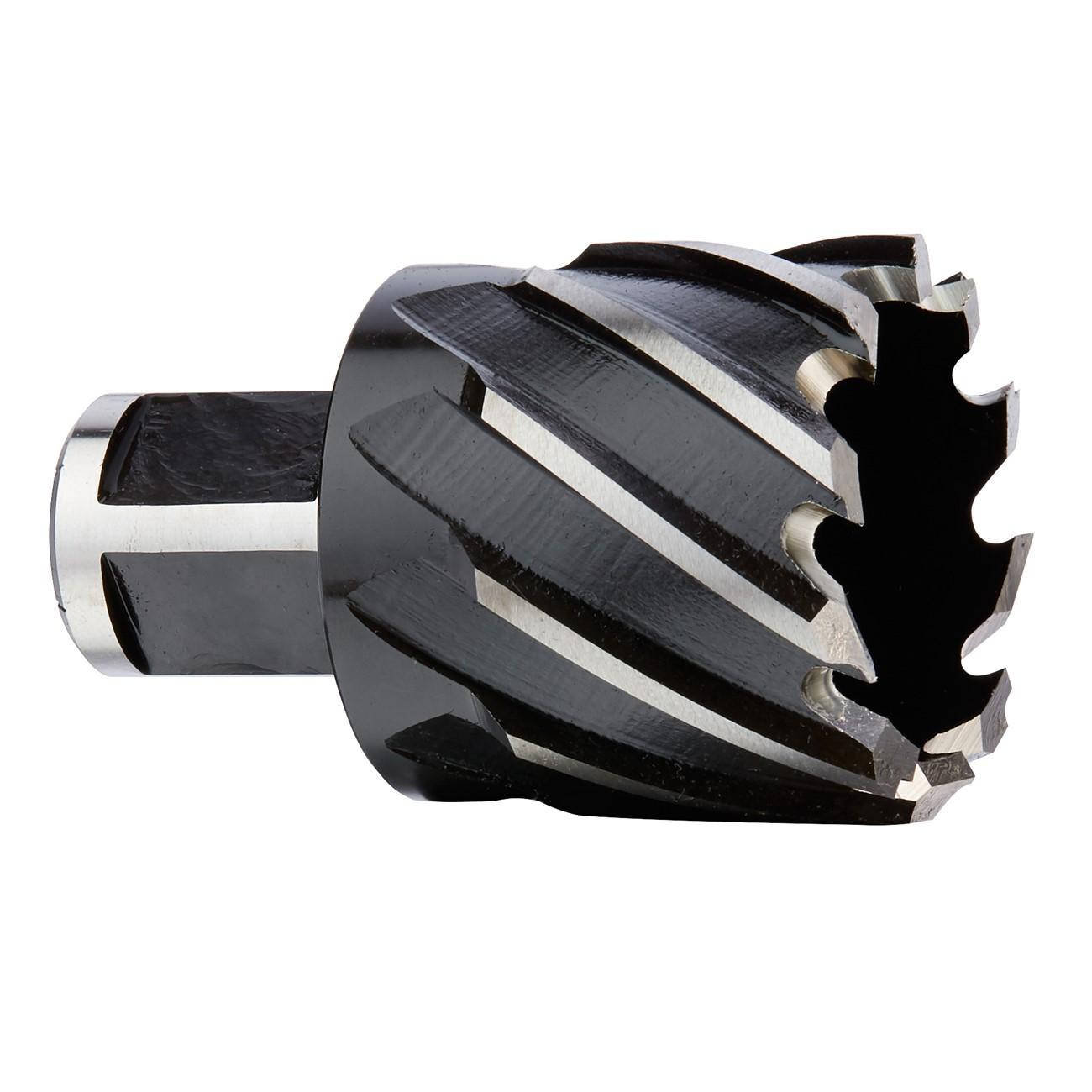

Milwaukee 49-59-1750 Hss Annular Cutter 1-3/4 in

Product Description

The MILWAUKEE 49-59-1750 is a high speed steel (HSS) annular cutter designed for cutting clean, burr-free holes in sheet metal and mild steel plate. It features a thin-wall construction paired with an advanced tooth geometry that cuts, cleans, and clears material in a single pass. This reduces the volume of displaced material compared to standard twist bits or hole saws, resulting in faster drilling and extended cutter life. The 3/4 inch Weldon shank makes it compatible with most small and large magnetic drill presses when used with the appropriate arbor. It is sized at 1-3/4 inches in diameter.

This annular cutter is suited for metalworking applications in fabrication shops, structural steel work, and field installations where a magnetic drill press is the primary tool. It performs in mild steel applications ranging from thin sheet metal to thicker plate. Tradespeople in ironwork, pipefitting, and general steel fabrication will find this cutter well matched to repetitive hole-cutting tasks where speed and hole quality matter. Compatible pilot pin for use with this cutter is 49-59-0011.

Key Features

• Advanced tooth geometry cuts, cleans, and clears material during drilling for faster hole completion
• Thin-wall design displaces less material than comparable twist bits or hole saws
• Produces burr-free holes in sheet metal and mild steel
• 3/4 inch Weldon shank fits most small magnetic drill presses and large magnetic drill presses with the correct arbor
• Use with pilot pin 49-59-0011

Compatibility

Designed for use with magnetic drill presses accepting a 3/4 inch Weldon shank. Large magnetic drill presses require the correct arbor adapter. Pilot pin 49-59-0011 is specified for use with this cutter.

Installation Notes

Installation is performed by metalworkers and fabricators using a magnetic drill press. Secure the workpiece and confirm the magnetic base has full contact with the steel surface before beginning the cut. Inspect the Weldon shank seating and set-screw tightness before operation. Always use cutting fluid appropriate for HSS tooling in steel to extend cutter life and maintain hole quality.

Technical Specifications

• Cutting Diameter: 1-3/4 inches
• Cutter Length: 2.358 inches
• Shank Type: 3/4 inch Weldon
• Material: High Speed Steel (HSS)
• Application: Sheet metal and mild steel
• Weight: 0.42 pounds
• Package Dimensions: 3.7 inches x 2.05 inches x 2.2 inches
• Sold As: Each
• UPC: 0045242207695

Standard Information

• Brand: MILWAUKEE
• Manufacturer Part Number: 49-59-1750
