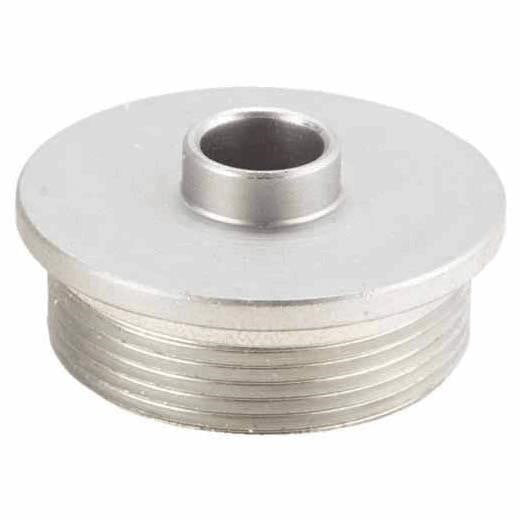

Milwaukee 49-54-0720 Routing Template Guide Assembly

Product Description

The MILWAUKEE 49-54-0720 is a dovetail and general routing template guide assembly designed for use with 1/2 inch router base configurations. This guide assembly attaches to a compatible router base and serves as a precision bushing system that directs the router bit along a template path, allowing repeatable cuts for joinery, cabinetry, and general woodworking applications. It is a replacement or supplemental accessory for routers equipped with a standard template guide bushing port. Woodworkers, carpenters, and millwork installers who rely on MILWAUKEE routing systems will find this a direct-fit solution for guided routing work.

This template guide assembly is suited for residential and commercial carpentry applications where accurate, template-driven routing is required. Typical use cases include dovetail joint production, dado routing, hinge mortising, and pattern routing on wood, MDF, and composite materials. The assembly is sold as a single unit and is intended for professional-grade router setups where repeatability and fit consistency are critical to finished work quality.

Key Features

• Designed for 1/2 inch router base compatibility for dovetail and general routing tasks
• Template guide bushing system enables repeatable, template-driven cuts
• Compact profile at 3.8 inches long, 5.6 inches wide, and 0.8 inches tall for easy fitment
• Lightweight construction at 0.15 pounds minimizes added load on the router
• Sold as a complete assembly — single unit ready for installation

Compatibility

Designed as an OEM-style replacement and accessory for MILWAUKEE routers equipped with a standard 1/2 inch template guide bushing port. Verify router base compatibility with the specific MILWAUKEE router model before installation.

Installation Notes

Installation of this template guide assembly should be performed by a qualified carpenter or woodworking professional familiar with router tooling and accessories. Power down and unplug the router completely before attaching or removing any template guide components. Ensure the bushing is fully seated and secured in the router base before beginning any routing pass. Follow all applicable safety guidelines for router operation, including proper workpiece clamping and appropriate personal protective equipment.

Technical Specifications

• Router Base Size: 1/2 inch
• Length: 3.8 inches
• Width: 5.6 inches
• Height: 0.8 inches
• Weight: 0.15 pounds
• Sold As: Each
• UPC: 0045242190317

Standard Information

• Brand: MILWAUKEE
• Manufacturer Part Number: 49-54-0720
