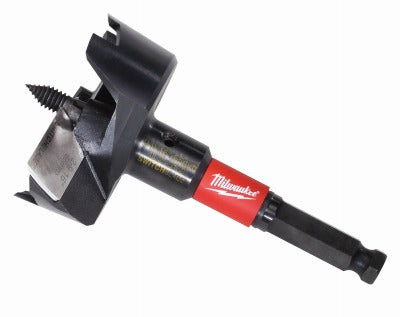

Milwaukee 48-25-5150 Switchblade Self-feed Bit 2-9/16 in

Product Description

The Milwaukee Electric Tool Corp 48-25-5150 is a 2-9/16 inch Switchblade Self-Feed Bit designed for drilling large-diameter holes in wood framing materials including beams, planks, boards, logs, and timber lumber. The replaceable blade is constructed from hardened steel and features an aggressive feed screw design that reduces the effort required to drive through dense wood. A hexagonal shank provides a secure grip in the drill chuck. This bit requires a minimum chuck size of 1/2 inch and is recommended for use in continuous torque drills. Licensed electricians, plumbers, and HVAC installers rely on this tool for routing pipe, vents, gas lines, and bulk wire through structural lumber.

This self-feed bit is suited for residential and light commercial rough-in work where large-bore holes are needed through dimensional lumber, engineered beams, or log structures. Common applications include running electrical conduit, PVC drain lines, gas supply tubing, and HVAC flex duct through floor joists and wall plates. The included replaceable blade system extends the service life of the bit body, making it a practical choice for high-volume drilling tasks on job sites. Compatible with the 48-25-5550 replacement blade set for continued field serviceability.

Key Features

• 2-9/16 inch cutting diameter for pipe, vent, and wire routing applications
• Hardened steel replaceable blades with aggressive feed screw design for faster boring
• Hexagonal shank for secure chuck engagement and reduced slippage
• Requires minimum 1/2 inch chuck; recommended for continuous torque drills
• Includes 2 replaceable blades, 2 feed screws, 2 set screws, and 1 hex wrench
• Compatible with 48-25-5550 replacement blade set for field blade changes

Compatibility

Compatible with continuous torque drills equipped with a minimum 1/2 inch chuck. Replacement blades available via Milwaukee Electric Tool Corp part 48-25-5550.

Installation Notes

This bit is installed and used by electricians, plumbers, and HVAC technicians during rough-in phases of construction. Ensure the drill chuck is tightened securely on the hexagonal shank before operation. Always confirm that structural members being drilled meet applicable building code requirements for hole size and placement. Blade replacement is performed with the included hex wrench while the drill is powered off and unplugged.

Technical Specifications

• Cutting Diameter: 2-9/16 inches
• Shank Type: Hexagonal
• Minimum Chuck Size: 1/2 inch
• Blade Material: Hardened Steel
• Weight: 23.08 pounds
• Package Quantity: 24 per case
• Unit of Measure: EA

Standard Information

• Brand: Milwaukee Electric Tool Corp
• Manufacturer Part Number: 48-25-5150
