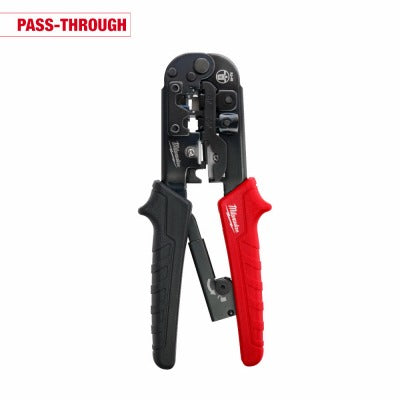

Milwaukee 48-22-3074 Pass-through Crimper Stripper

Product Description

The Milwaukee Electric Tool 48-22-3074 is a ratcheting pass-through crimper and stripper designed for low-voltage data and communication wiring work. The pass-through blade design trims excess conductor flush during the crimp cycle, preventing unintended contact at the connector. A built-in stripping nest and cutting blades handle wire prep in a single tool, reducing the number of hand tools a technician carries on a job. The full-cycle ratcheting mechanism locks out until the crimp is complete, ensuring consistent termination on every connector. Ergonomic grip handles reduce hand fatigue during repetitive crimping tasks.

This tool is intended for installers working with modular and pass-through style connectors on low-voltage communication cabling. It supports RJ45 pass-through connectors used in structured data cabling, as well as RJ11, RJ12, and RJ22 modular connectors common in telephone and peripheral wiring. Typical install scenarios include network drops, telephone terminations, and low-voltage rough-in work in both residential and light commercial settings. Low-voltage technicians and electricians performing data and communication rough-in use this tool as a primary hand crimp solution.

Key Features

• Pass-through blade trims excess conductor flush during crimp, eliminating unintended contact
• Compatible with RJ45 pass-through, RJ11, RJ12, and RJ22 modular connectors
• Full-cycle ratcheting mechanism prevents incomplete terminations with easy-release function
• Built-in stripping nest and cutting blades reduce prep time and tool count
• Ergonomic grip handles reduce hand strain during repetitive crimping

Compatibility

Designed for use with RJ45 pass-through connectors and RJ11, RJ12, and RJ22 modular connectors in low-voltage data and communication wiring applications.

Installation Notes

This tool is installed and operated by low-voltage technicians or licensed electricians performing data and communication wiring work. No power source is required; de-energize any active circuits before terminating conductors on live panels or patch points. Follow applicable low-voltage wiring standards and local codes when installing structured cabling systems. Inspect the ratchet mechanism and blades before use and replace the tool if the ratchet release or cutting edges show signs of wear.

Technical Specifications

• Weight: 5.03 pounds
• Unit of Measure: EA
• Package Quantity: 6

Standard Information

• Brand: Milwaukee Electric Tool Corp
• Manufacturer Part Number: 48-22-3074
