Milwaukee 48-20-5412 Carbide Tipped SDS-Max Core Drill Bit

Product Description

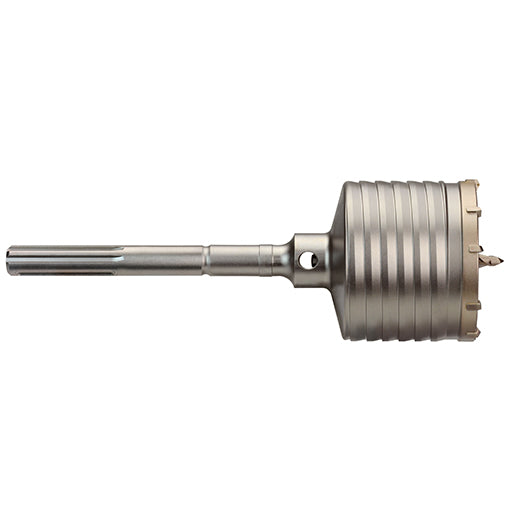

Milwaukee 48-20-5412 is a one-piece carbide tipped core drill bit designed for drilling large holes with shallow depth requirements. The core bit operates by cutting a kerf, requiring the operator to remove the inside core before deeper drilling can start. This bit is compatible with SDS-Max rotary hammers and comes with several diameter options ranging from one and a half inches to six inches. The overall length is eleven and three-eighths inches with a three-inch drilling depth.

• Asymmetrical and alternating teeth for faster material pulverization
• Thick-wall core body for durability even in larger hammers
• Optional centering tip to reduce bit walking and ensure precise drilling

Product Highlights

This drill bit is ideal for applications on brick, block, and concrete.

Product Information

Standard Information

• Brand: Milwaukee Tool
• MPN: 48-20-5412

Technical Specifications

• Type: 1-Piece
• Diameter: 2-5/8 inches
• Overall Length: 11-3/8 inches
• Cutting Depth: 3 inches
• Shank Size: 45/64 inches
• Shank Type: SDS-Max
• Cutting Edge Material: Carbide
• UPC: 045242315543
