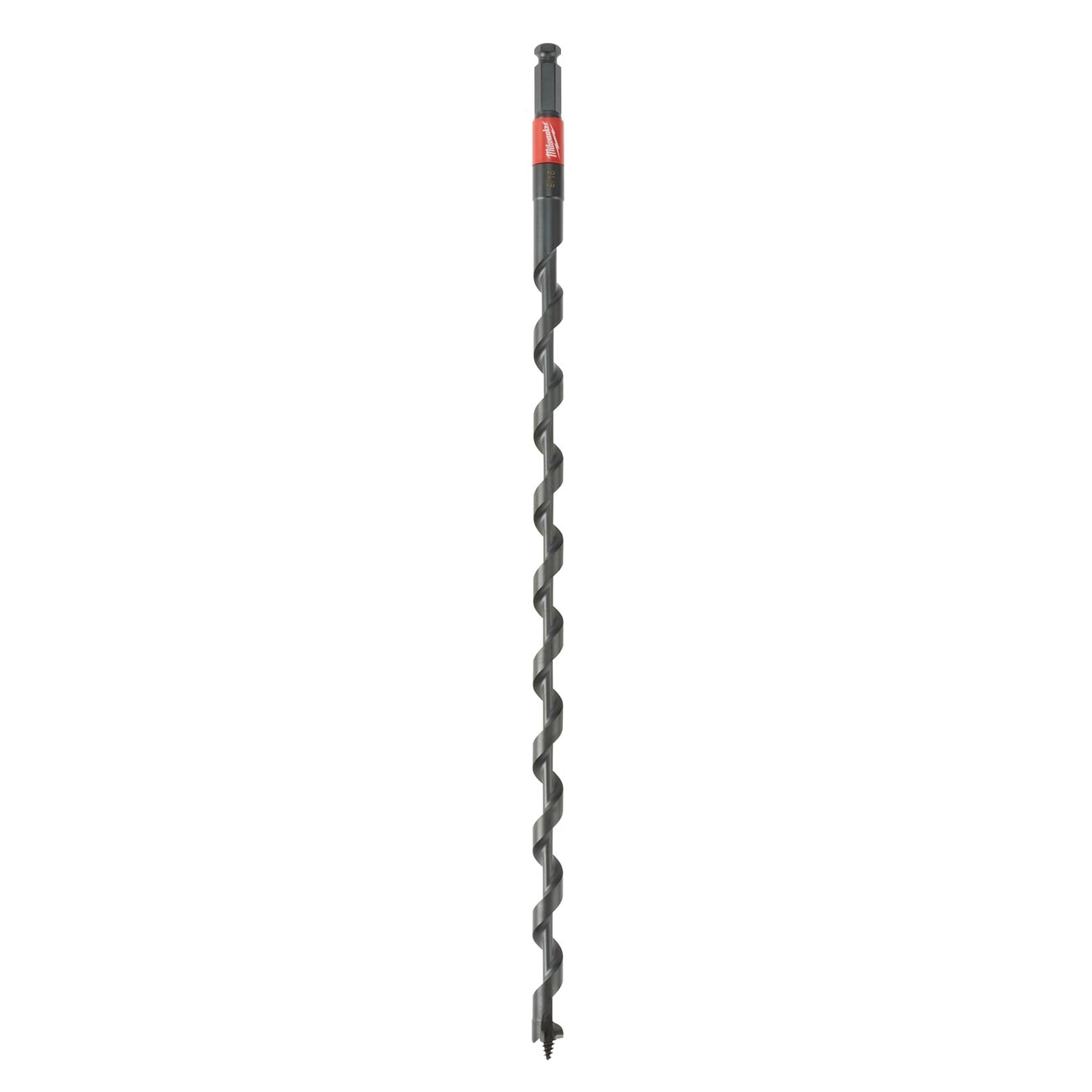

Milwaukee 48-13-6802 Shockwave Lineman Auger Bit 1/2 in

Product Description

The MILWAUKEE 48-13-6802 is a Shockwave lineman impact auger bit engineered for power utility linemen who need clean, fast holes in wooden utility poles. The bit features a single spur design that scores the edge of each hole, producing a cleaner finish that lets bolts slide through without resistance. A reinforced anti-friction PTFE coating reduces friction during drilling and simplifies bit removal from the pole. The aggressive feed screw and cutting edge pull the bit through wood while an optimized wide flute geometry ejects chips quickly, reducing clogs and improving overall drilling speed. This bit ships as a single piece.

This auger bit is intended for use in wooden utility poles and is recommended for clean wood only. It is designed for impact drivers or drills equipped with a 7/16 inch quick-connect chuck, making it a standard choice for field linemen working on wood pole installations, service upgrades, and crossarm hardware applications. The solid stemmed core provides added structural strength during high-torque impact driving.

Key Features

• Single spur design scores the hole edge for a cleaner finish and easier bolt installation
• Reinforced anti-friction PTFE coating for smoother drilling and easier removal from wood poles
• Aggressive feed screw and cutting edge pull the bit through material for faster drilling speeds
• Optimized wide flute geometry rapidly ejects chips to clear the hole and reduce clogs
• 7/16 inch hex shank for fast connection into 7/16 inch quick-connect chucks
• Solid stemmed core for added strength under impact driving loads

Compatibility

Designed for use with impact drivers and drills fitted with a 7/16 inch quick-connect chuck. Intended for drilling into wooden utility poles; recommended for clean wood only.

Installation Notes

Installation is typically performed by licensed power utility linemen following applicable utility and OSHA safety standards. De-energize and follow proper lockout/tagout procedures before drilling near electrical infrastructure. Confirm the bit shank is fully seated in the chuck before applying power. Do not use this bit on treated poles with embedded hardware or on materials other than clean wood.

Technical Specifications

• Bit Diameter: 1/2 inch
• Flute Length: 21 inches
• Shank Size: 7/16 inch hex quick-connect
• Coating: Reinforced anti-friction PTFE
• Package Weight: 0.71 pounds
• Package Length: 25.2 inches
• Package Width: 1.25 inches
• Package Height: 1.2 inches
• Quantity Included: 1 piece
• UPC: 0045242531905

Standard Information

• Brand: MILWAUKEE
• Manufacturer Part Number: 48-13-6802
