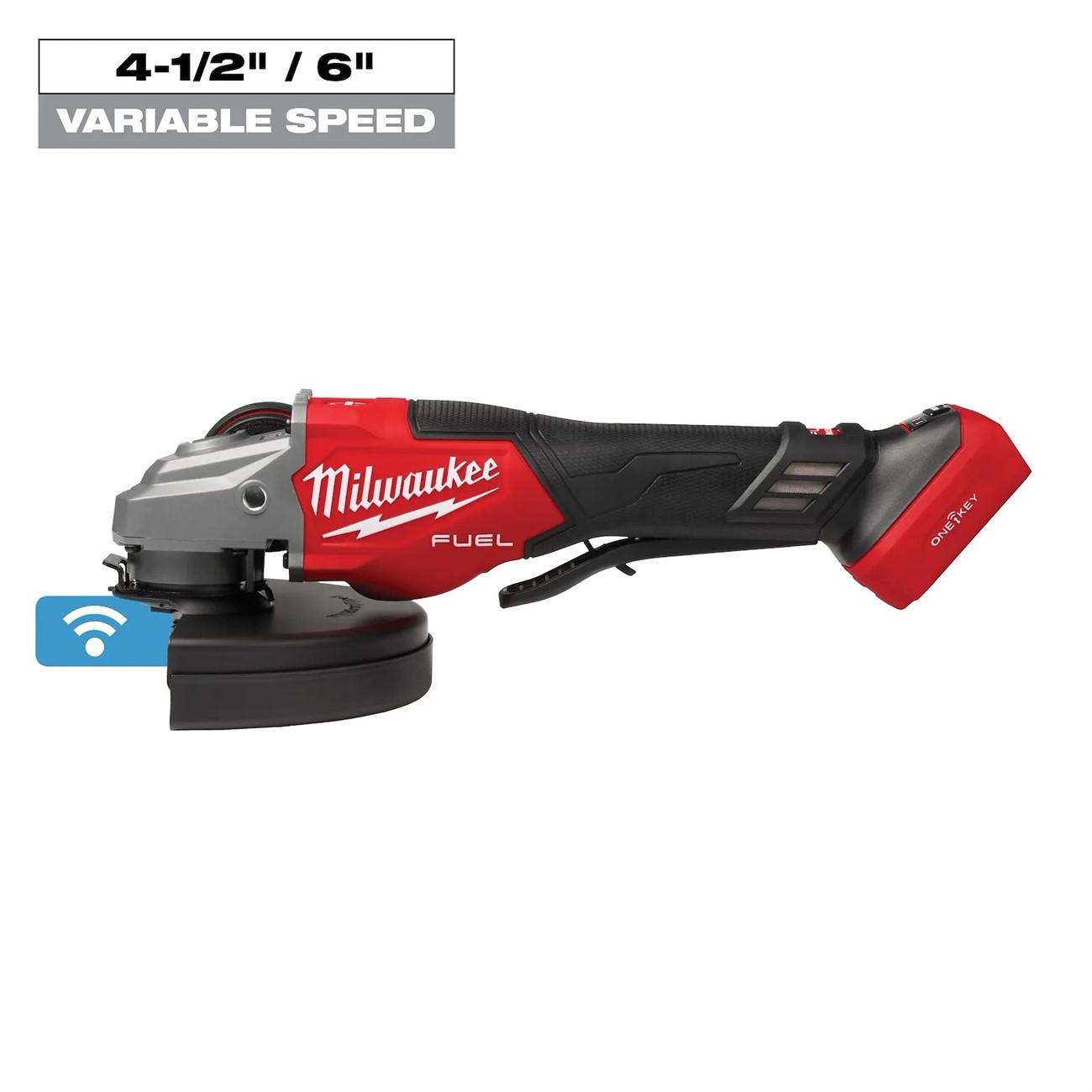

Milwaukee 3674-20 Variable Speed Angle Grinder Paddle

Product Description

The MILWAUKEE 3674-20 is an M18 FUEL cordless variable speed braking angle grinder with a paddle switch, designed for professional grinding and cutting applications in the trades. Powered by a POWERSTATE brushless motor, it delivers between 5,000 and 8,400 RPM across four selectable speed settings, giving technicians and fabricators precise control over material removal. The RAPIDSTOP brake brings the wheel to a halt quickly after trigger release, reducing exposure risk on the job. REDLINK PLUS electronics manage performance and protection between tool and battery. This grinder handles disc sizes from 4.5 inches up to 7 inches and uses a 5/8-inch-11 spindle compatible with standard grinding and cutting accessories.

The 3674-20 is built for demanding trade applications including metal fabrication, weld grinding, masonry cutting, and surface prep in both residential and commercial environments. The compact body profile allows the tool to reach into confined spaces while still handling large-diameter discs. The variable speed dial lets the operator match wheel speed to the material and application, reducing the risk of workpiece damage. It is compatible with all M18 batteries and supports ONE-KEY asset tracking and tool customization for fleets managed by contractors and service companies.

Key Features

• POWERSTATE brushless motor delivers 5,000-8,400 RPM for sustained power in grinding and cutting
• RAPIDSTOP brake halts wheel rotation quickly after paddle switch release for enhanced jobsite safety
• Four-position variable speed dial allows matched control for different materials and disc sizes
• Electronic clutch provides kickback protection during bind-up events
• Anti-vibration side handle reduces operator fatigue during extended use
• 5/8-inch-11 spindle accepts common grinding and cutting accessories in 4.5 inch to 7 inch sizes
• ONE-KEY compatible for tool customization, tracking, and fleet management

Compatibility

Compatible with all M18 batteries. Accepts grinding and cutting accessories with a 5/8-inch-11 arbor in disc diameters from 4.5 inches to 7 inches.

Installation Notes

Installation and disc changes should be performed by qualified users following ANSI B7.1 and applicable jobsite safety requirements. Always power down and remove the battery pack before changing accessories or guards. Verify that the accessory maximum RPM rating meets or exceeds the tool speed setting before operation. Inspect the disc and guard before each use and do not operate with a damaged or missing guard.

Technical Specifications

• Speed Range: 5,000-8,400 RPM
• Speed Settings: 4
• Disc Capacity: 4.5 inches to 7 inches
• Spindle Thread: 5/8-inch-11
• Switch Type: Paddle
• Motor Type: POWERSTATE brushless
• Length: 16.85 inches
• Width: 4.13 inches
• Height: 8.97 inches
• Weight: 8.38 pounds
• UPC: 0045242250141

Standard Information

• Brand: MILWAUKEE
• Manufacturer Part Number: 3674-20
