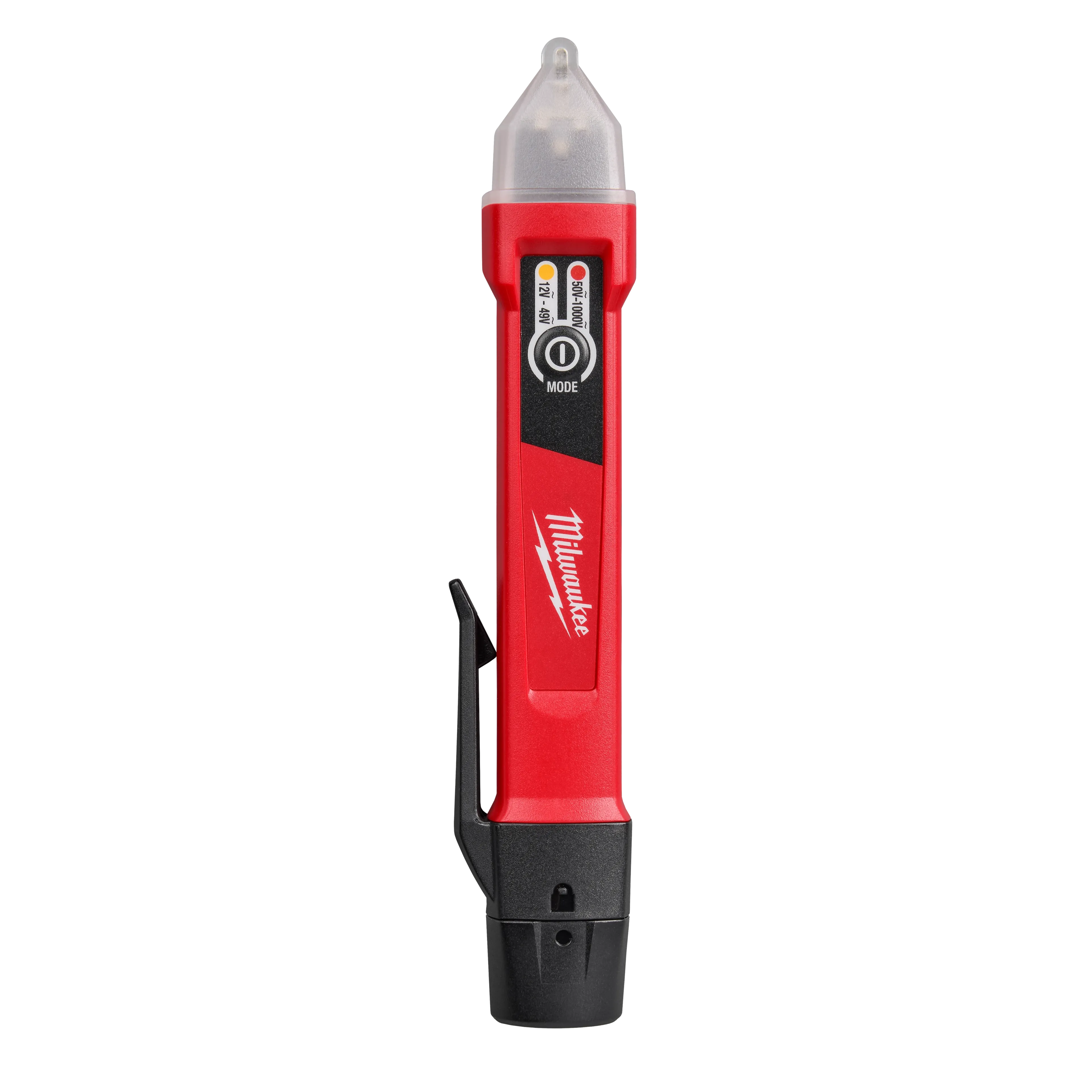

Milwaukee 320820 Dual Range Voltage Detector 2 AAA (320820)

Product Description

The Milwaukee 320820 dual range non-contact voltage detector detects AC voltage without physical contact and differentiates low and high voltage levels. It indicates low voltage (12–49 V AC) with a yellow visual indicator and high voltage (50–1000 V AC) with a red visual indicator, and provides audible alerts. The handheld pen-style tester is CAT IV 1000V rated, IP54 protected, powered by two AAA batteries, and includes a reinforced tip and belt clip.

• Dual detection ranges: 12–49 V AC (low) and 50–1000 V AC (high) with visual (yellow/red) and audible indicators
• Safety and durability: CAT IV 1000 V rating, IP54 water and dust protection, reinforced tip and durable belt clip
• Power and serviceability: powered by two AAA batteries with quarter-turn cap for battery replacement

Product Highlights

Non-contact AC voltage detection (12–49 V and 50–1000 V), CAT IV 1000 V safety rating, IP54 protection, powered by 2 AAA batteries

Product Information

Standard Information

• Brand: MILWAUKEE
• Manufacturer Part Number: 320820

Technical Specifications

• Brand: Milwaukee
• Manufacturer Part Number: 320820
• Model: 3208-20
• Form Factor: Pen-style handheld tester
• Detection Type: Non-contact AC voltage detection
• Lower Voltage Range: 12 V - 49 V AC
• Higher Voltage Range: 50 V - 1000 V AC
• Combined Detection Range: 12 V - 1000 V AC
• Safety Rating: CAT IV 1000 V
• Ingress Protection: IP54 (water and dust protection)
• Power Source: 2 AAA batteries
• Number of Batteries Required: 2
• Batteries Included: Yes
• Switch Type: Push button
• Indicators: Visual (yellow for low, red for high) and audible
• Tip Design: Reinforced tip
• Mounting: Durable belt clip
• Battery Access: Quarter-turn cap for battery replacement
• Weight: 0.14 lb
• Dimensions: 5.64 x 1.05 x 1.02 inches (L x W x H)
• In the Box: Dual Range Voltage Detector (3208-20), 2 AAA Batteries, Manual
