Milwaukee 22-09-0105 Pcba Assembly

Product Description

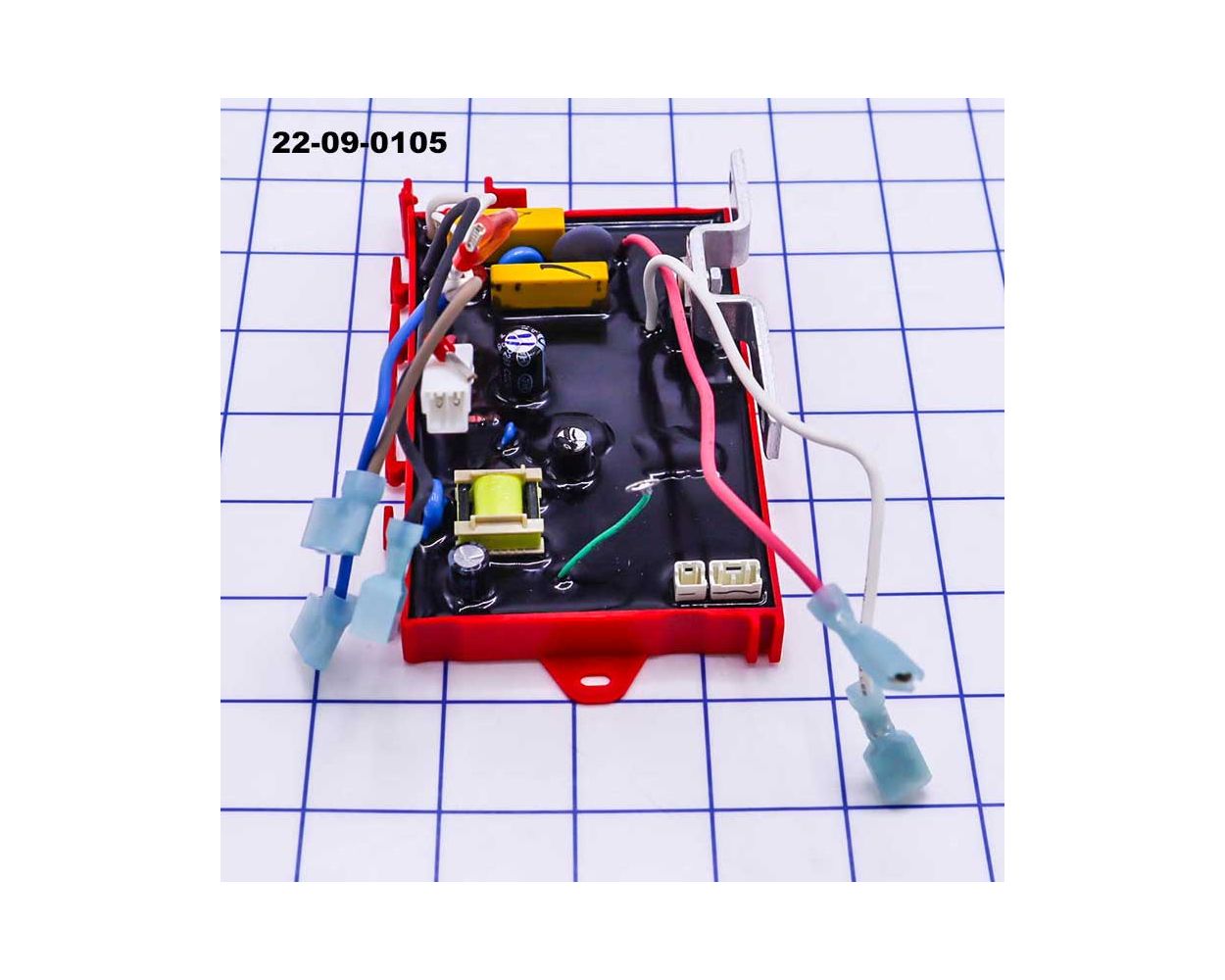

The MILWAUKEE 22-09-0105 is a printed circuit board assembly (PCBA) designed as an OEM replacement component for Milwaukee power tools and accessories. A PCBA integrates the electronic components and circuitry that control tool operation, manage power delivery, and enable onboard diagnostics or protection features. This part is sourced directly from Milwaukee and is intended for professional repair technicians and authorized service centers performing component-level repairs on Milwaukee equipment.

This PCBA assembly is used in the repair and refurbishment of Milwaukee power tools and accessories. It is suited for service shop environments where board-level replacement is required to restore proper electronic function. Specific applicable tool models were not provided in the product data; consult Milwaukee service documentation or your Milwaukee distributor to confirm fitment for the unit being serviced.

Key Features

• OEM Milwaukee replacement PCBA for factory-spec electronic performance
• Supports component-level repair rather than full tool replacement
• Designed to restore original control and power-management functions
• Sourced from Milwaukee Parts and Accessories for quality assurance

Compatibility

Designed as an OEM-style replacement PCBA for Milwaukee power tools and accessories. Specific compatible model numbers were not included in the available product data; verify compatibility against the Milwaukee parts catalog or service bulletin for the target tool before ordering.

Installation Notes

PCBA replacement should be performed by a qualified electronics repair technician or an authorized Milwaukee service center. Disconnect and fully de-energize the tool or equipment before removing any electronic assemblies. Use appropriate ESD precautions when handling the board to prevent damage to sensitive components. Refer to the Milwaukee service manual for the specific tool model to confirm correct installation procedure and any applicable torque or connector seating requirements.

Technical Specifications

• Component Type: Printed Circuit Board Assembly (PCBA)
• Part Classification: OEM Replacement Electronic Assembly

Standard Information

• Brand: MILWAUKEE
• Manufacturer Part Number: 22-09-0105
