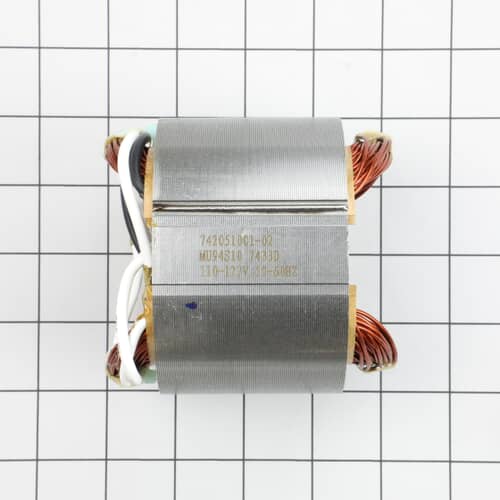

Milwaukee 18-70-0290 120 Volt Field

Product Description

The MILWAUKEE 18-70-0290 is a 120-volt field component designed as an internal winding assembly used in electric power tools. The field generates the electromagnetic force that drives the armature, converting electrical energy into rotational output. This type of component is a direct OEM-style replacement part installed by power tool repair technicians and qualified electricians performing tool servicing. Operating at 120 volts, it is matched to standard North American single-phase power and is built to restore tool performance to factory specification.

This field assembly is suited for use in Milwaukee power tools requiring a 120-volt field winding replacement. It is typically installed during motor rebuild or field failure service on corded power tools. Tool repair shops and on-site service technicians performing motor component replacement will find this part applicable to applicable Milwaukee tool service scenarios where the original field has failed due to thermal damage, open windings, or insulation breakdown.

Key Features

• 120-volt rated field winding for standard North American single-phase power compatibility
• OEM Milwaukee replacement part ensures factory-matched electrical and mechanical fit
• Designed for motor rebuild and field replacement service applications
• Restores electromagnetic drive function to corded power tool motors

Compatibility

Designed as an OEM-style replacement field assembly for compatible Milwaukee corded power tools requiring a 120-volt field winding. Refer to the Milwaukee parts diagram or service manual for your specific tool model to confirm fitment before installation.

Installation Notes

Field replacement should be performed by a qualified power tool repair technician or licensed electrician familiar with motor component service. Always disconnect the tool from all power sources before disassembly. Refer to the applicable Milwaukee service documentation for disassembly sequence and reassembly procedures. Improper installation can result in motor failure or electrical hazard.

Technical Specifications

• Voltage: 120 volts
• Component Type: Field Winding Assembly

Standard Information

• Brand: MILWAUKEE
• Manufacturer Part Number: 18-70-0290
