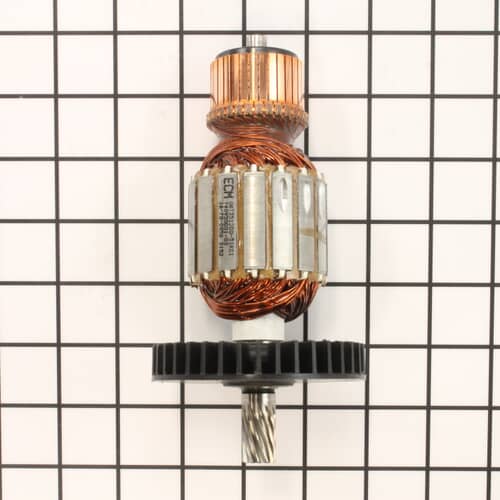

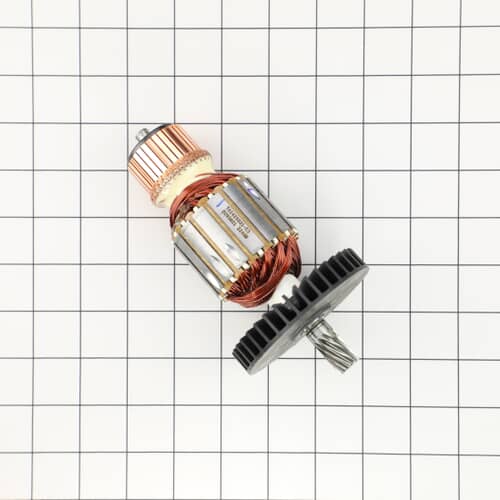

Milwaukee 16-70-0056 Armature Assembly

Product Description

The MILWAUKEE 16-70-0056 is a replacement armature assembly designed for use in Milwaukee power tools. The armature is the rotating component inside an electric motor, converting electrical energy into mechanical motion. When an armature fails due to wear, heat damage, or electrical fault, the motor loses torque or stops functioning entirely. This replacement assembly restores original motor performance and extends tool service life. It is a factory-compatible part intended for installation by experienced power tool service technicians or electricians performing equipment repair.

This armature assembly is used in the repair and reconditioning of Milwaukee power tools. It is suited for professional repair shops, authorized service centers, and field technicians who service Milwaukee equipment. Specific tool model compatibility is determined by cross-referencing the part number 16-70-0056 against the relevant Milwaukee service documentation or parts diagram for the tool being repaired.

Key Features

• Direct replacement armature assembly for Milwaukee power tools
• Restores original motor torque and rotational output upon installation
• Designed to meet OEM fit and function specifications
• Suitable for professional repair and service applications

Compatibility

Designed as an OEM-style replacement armature assembly for compatible Milwaukee power tools. Verify fitment by confirming part number 16-70-0056 against the tool's official Milwaukee parts diagram before ordering.

Installation Notes

Armature assembly replacement should be performed by a qualified power tool service technician. Disconnect the tool from all power sources and, for battery-operated tools, remove the battery pack before beginning disassembly. Use appropriate hand tools and follow the manufacturer's service manual for disassembly and reassembly procedures. Improper installation can result in motor damage, electrical fault, or unsafe tool operation.

Technical Specifications

• Component Type: Armature Assembly

Standard Information

• Brand: MILWAUKEE
• Manufacturer Part Number: 16-70-0056
