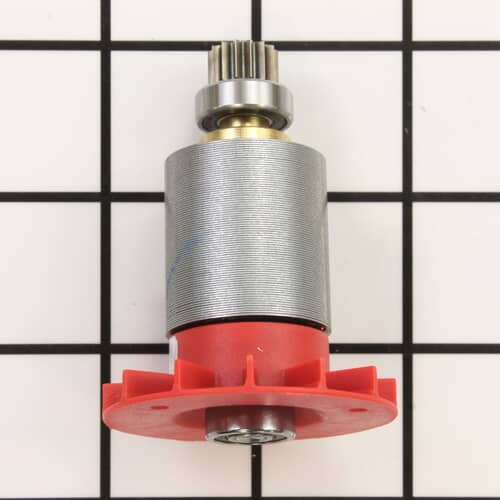

Milwaukee 16-07-2603 Service Armature

Product Description

The MILWAUKEE 16-07-2603 is a service replacement armature designed for use in Milwaukee power tools. The armature is the rotating electromagnetic core of a universal or series-wound motor, converting electrical energy into the mechanical rotation that drives the tool. When an armature fails due to winding burnout, commutator wear, or physical damage, replacing it with an OEM-equivalent service part restores full motor output without requiring a complete tool replacement. This part is sourced as a genuine Milwaukee service component intended for repair depots, field technicians, and experienced power tool service professionals.

This armature is intended for installation in compatible Milwaukee power tools requiring an armature replacement. It is commonly used in professional repair shop environments and by authorized service technicians performing motor-level repairs on Milwaukee corded tools. Consult the applicable Milwaukee tool service manual or parts diagram to confirm fitment before ordering.

Key Features

• OEM Milwaukee service replacement armature for motor-level repairs
• Restores full motor rotation and output upon installation
• Direct-fit design eliminates the need for modification during installation
• Sourced as a genuine Milwaukee parts and accessories component

Compatibility

Designed as an OEM-style replacement armature for compatible Milwaukee power tools. Verify fitment using the Milwaukee parts diagram or service documentation for the specific tool model before installation.

Installation Notes

Armature replacement should be performed by a qualified power tool service technician. Disconnect and unplug the tool completely before disassembly. Proper motor reassembly requires attention to brush seating, commutator condition, and bearing alignment. Refer to the Milwaukee service manual for the applicable tool model for disassembly and reassembly procedures.

Technical Specifications

• Part Type: Service Armature

Standard Information

• Brand: MILWAUKEE
• Manufacturer Part Number: 16-07-2603
