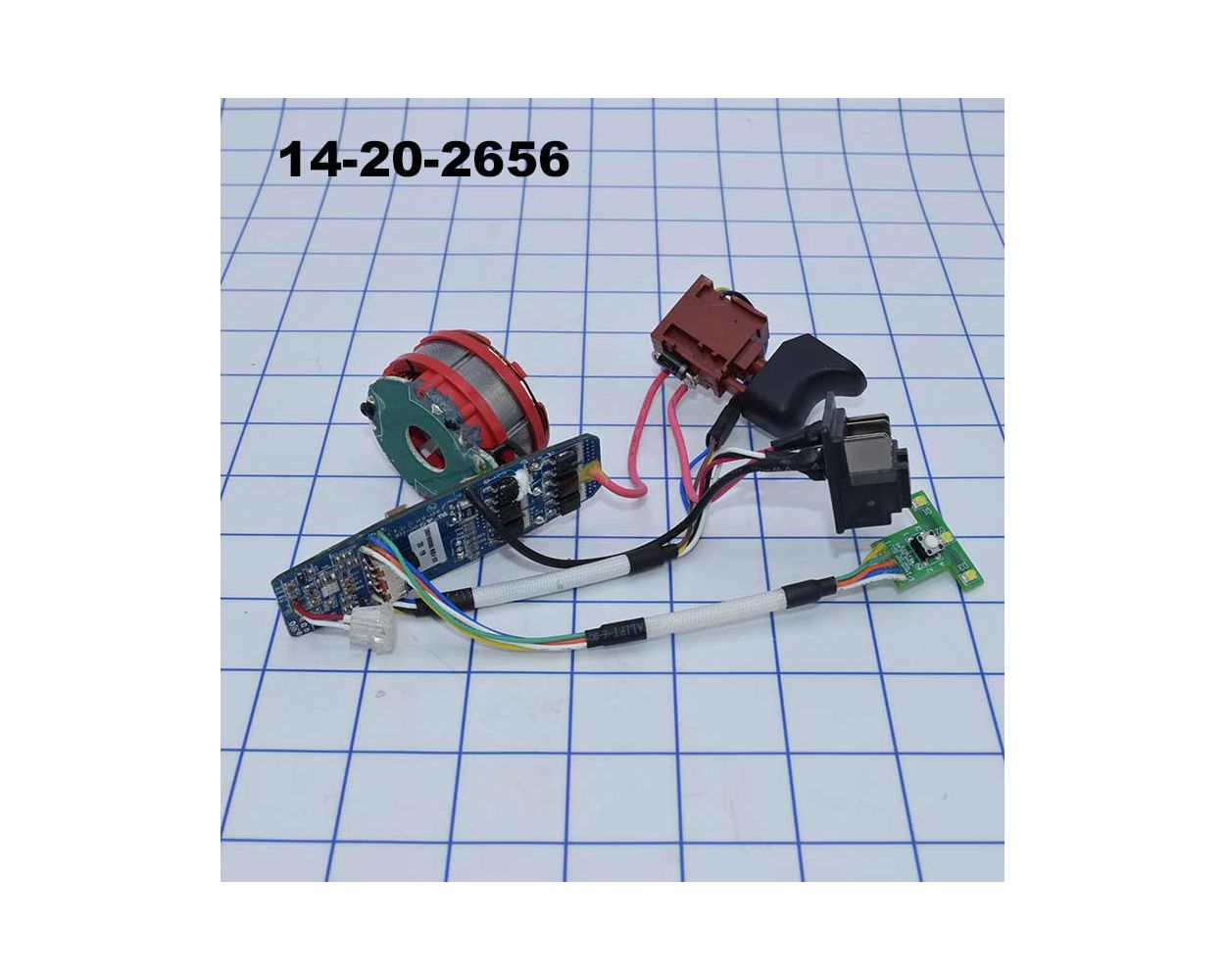

Milwaukee 14-20-2656 Electronics Assembly

Product Description

The MILWAUKEE 14-20-2656 is a factory replacement electronics assembly designed to restore proper function to compatible Milwaukee power tools. This component serves as the internal control and switching circuitry that manages power delivery and operational performance within the tool. It is intended for use by qualified repair technicians and service centers performing component-level repairs on Milwaukee power tool units. Replacing a failed electronics assembly restores the tool to factory operating condition without requiring full unit replacement.

This electronics assembly is suited for service and repair applications where the original internal electronics have failed due to wear, overload, or electrical fault. It is installed during bench-level power tool repair, typically in a shop or service center environment. Technicians performing warranty or out-of-warranty repairs on Milwaukee tools will source this assembly as a direct OEM replacement part.

Key Features

• OEM replacement electronics assembly for Milwaukee power tools
• Restores factory power delivery and switching performance
• Direct fit designed to match original factory specifications
• Intended for component-level repair by qualified technicians

Compatibility

Designed as an OEM-style replacement electronics assembly for compatible Milwaukee power tool models requiring internal electronic component service.

Installation Notes

Installation should be performed by a qualified power tool repair technician. Disconnect the tool from all power sources and remove the battery pack before beginning any disassembly. Electrostatic discharge precautions are recommended when handling electronic assemblies. Refer to the applicable Milwaukee service documentation for disassembly sequence and fastener guidance.

Technical Specifications

• Part Type: Electronics Assembly

Standard Information

• Brand: MILWAUKEE
• Manufacturer Part Number: 14-20-2656
