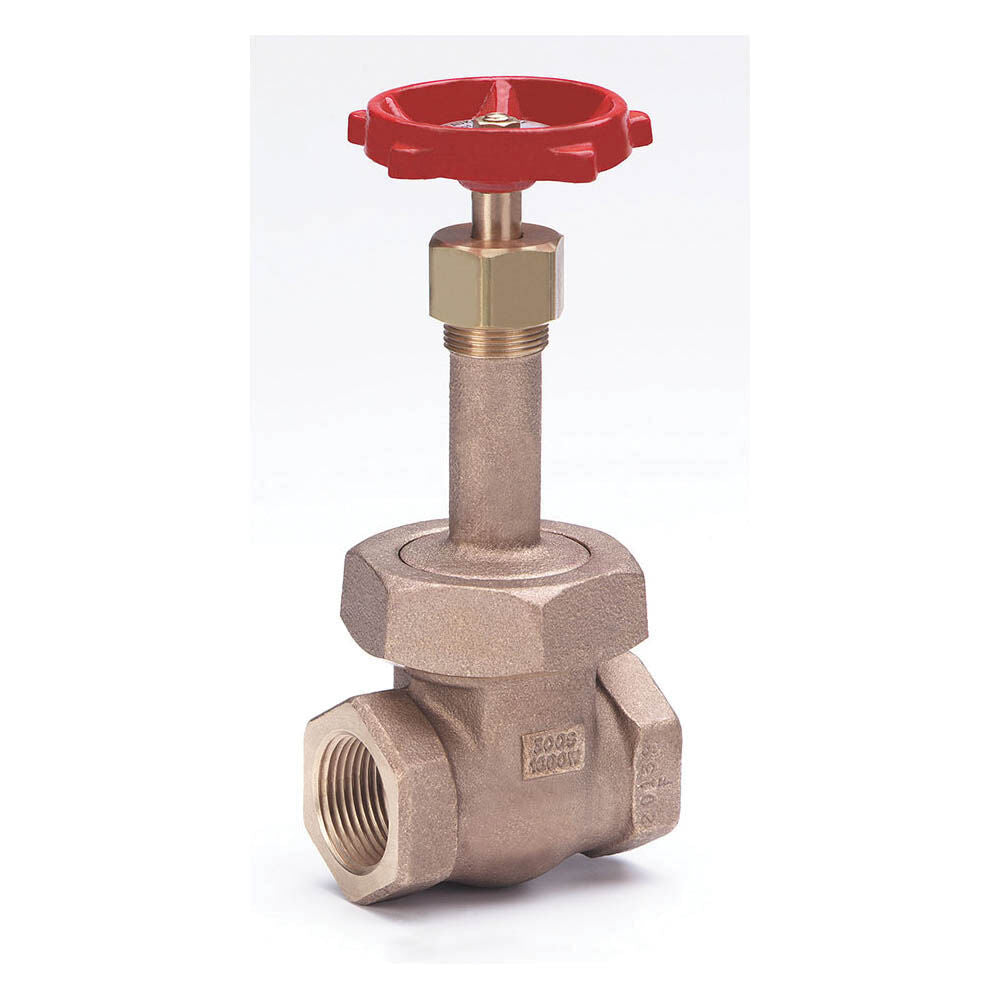

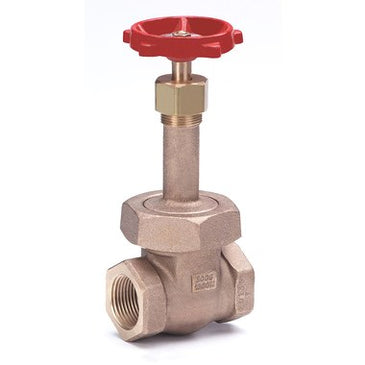

MILWAUKEE 1184-2 Bronze Gate Valve - 2 inch FNPT

Product Description

The Milwaukee 1184-2 is a durable bronze gate valve designed for plumbing applications. It features a two-inch nominal size with a threaded FNPT connection. The valve is operated manually with a handwheel, allowing for precise flow control. The design includes a union bonnet and a rising stem, ensuring reliable operation. A solid wedge disc and stainless-steel seat provide an effective seal under pressure. The valve is rated for a maximum of 1000 psi WOG, making it suitable for various plumbing tasks.

• Constructed from bronze for enhanced corrosion resistance
• Manual operation through a rising stem and handwheel
• Includes a solid wedge disc with stainless-steel seat for secure sealing

Product Highlights

This valve is ideal for controlling water flow in piping systems where durability and reliability are essential.

Product Information

Standard Information

• Brand: Milwaukee Valves
• Bonnet Type: Union

Technical Specifications

• End Connection: Threaded
• Material: Bronze
• Pressure Rating: 1000 psi WOG
• Product Type: Rising Stem
• Size: 2 inches
• End Style: FNPT
• Actuator: Handwheel
• Inlet to Outlet Length: 3-3/4 inches
• Top to Inlet Center: 11-3/4 inches
• Body Material: Bronze
• Trim Material: Bronze
• Packing Softgoods: Graphite
• Hand Wheel Diameter: 4-1/4 inches
• Manufacturer: Milwaukee Valve
• Softgoods Material: Graphite Packing
