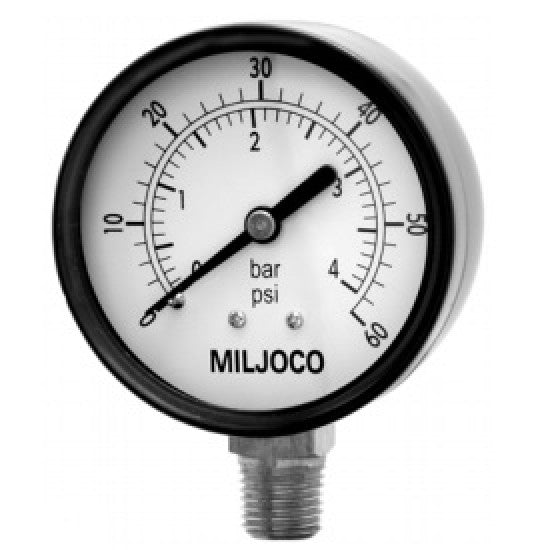

MILJOCO P4598L06 Contractor's Gauge

Product Description

The MILJOCO P4598L06 is a contractor's gauge used in commercial HVAC and building trades. Designed with a stainless steel case and ring, it includes high-temperature solder joints on the tube and socket for durability. It measures pressure for air, water, glycol solutions, and gas. The gauge features a four and a half inch dial and a quarter NPT bottom outlet connection, making it versatile for various applications.

• Stainless steel construction for durability.
• High-temperature solder joints on tube and socket.
• Pressure measurement range of 0-160 psi.

Product Highlights

This gauge is designed for reliable performance in demanding environments.

Product Information

Standard Information

• Brand: MILJOCO
• MPN: P4598L-06

Technical Specifications

• Case: Brightly finished stainless steel.
• Ring: Stainless steel.
• Lens: Acrylic.
• Dial: Aluminum, white finished with black markings.
• Pointer: Aluminum, black, adjustable.
• Movement: Brass with precision-milled teeth.
• Tube & Socket: Phosphor-bronze tube, brass socket.
• Connection: 1/4 NPT bottom outlet.
• Accuracy: 1% Full Scale (ASME B40.100 Grade 1A).
• Process Temperature: -40 to 200 degrees F (-40 to 93 degrees C).
• Ambient Temperature: -40 to 140 degrees F (-40 to 60 degrees C).
