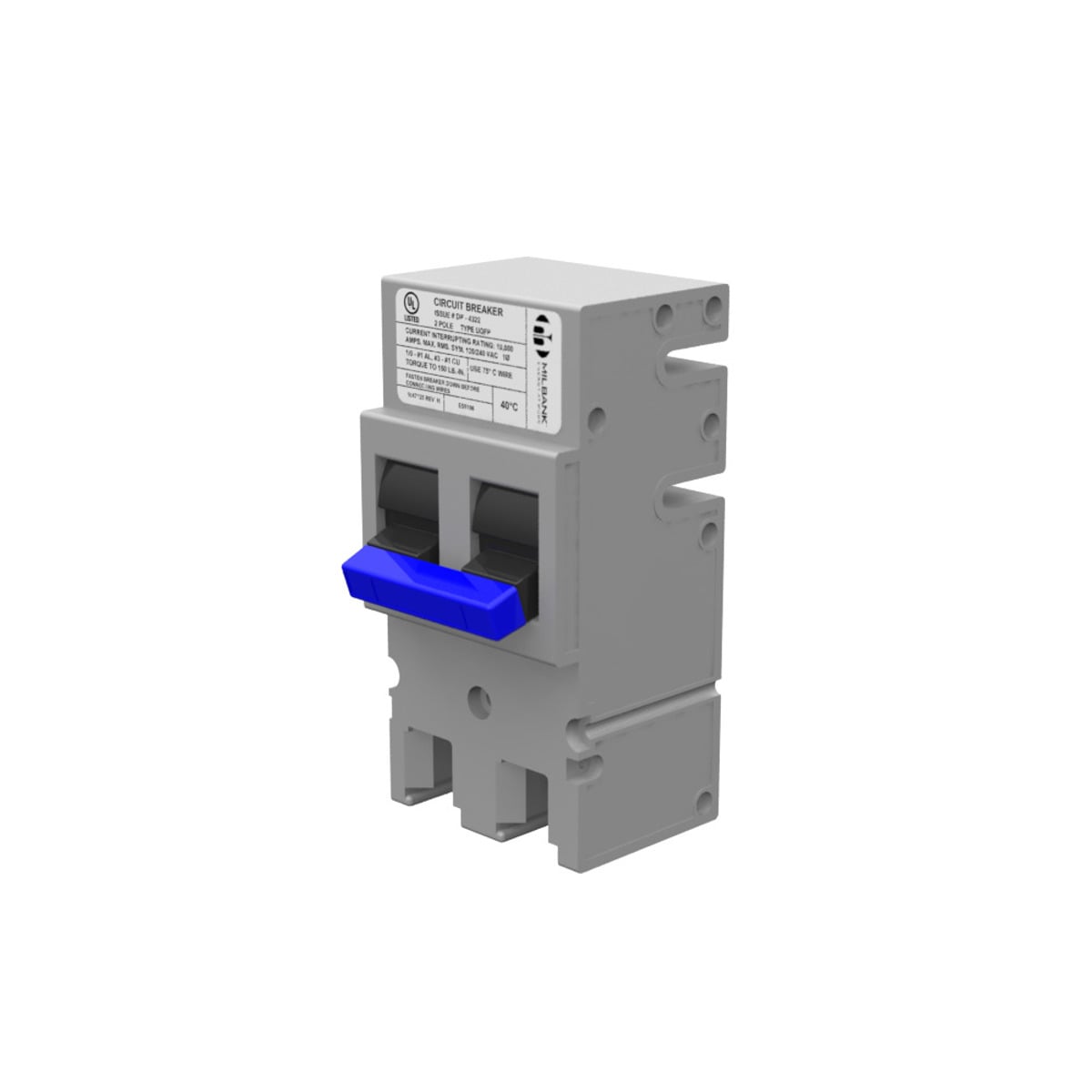

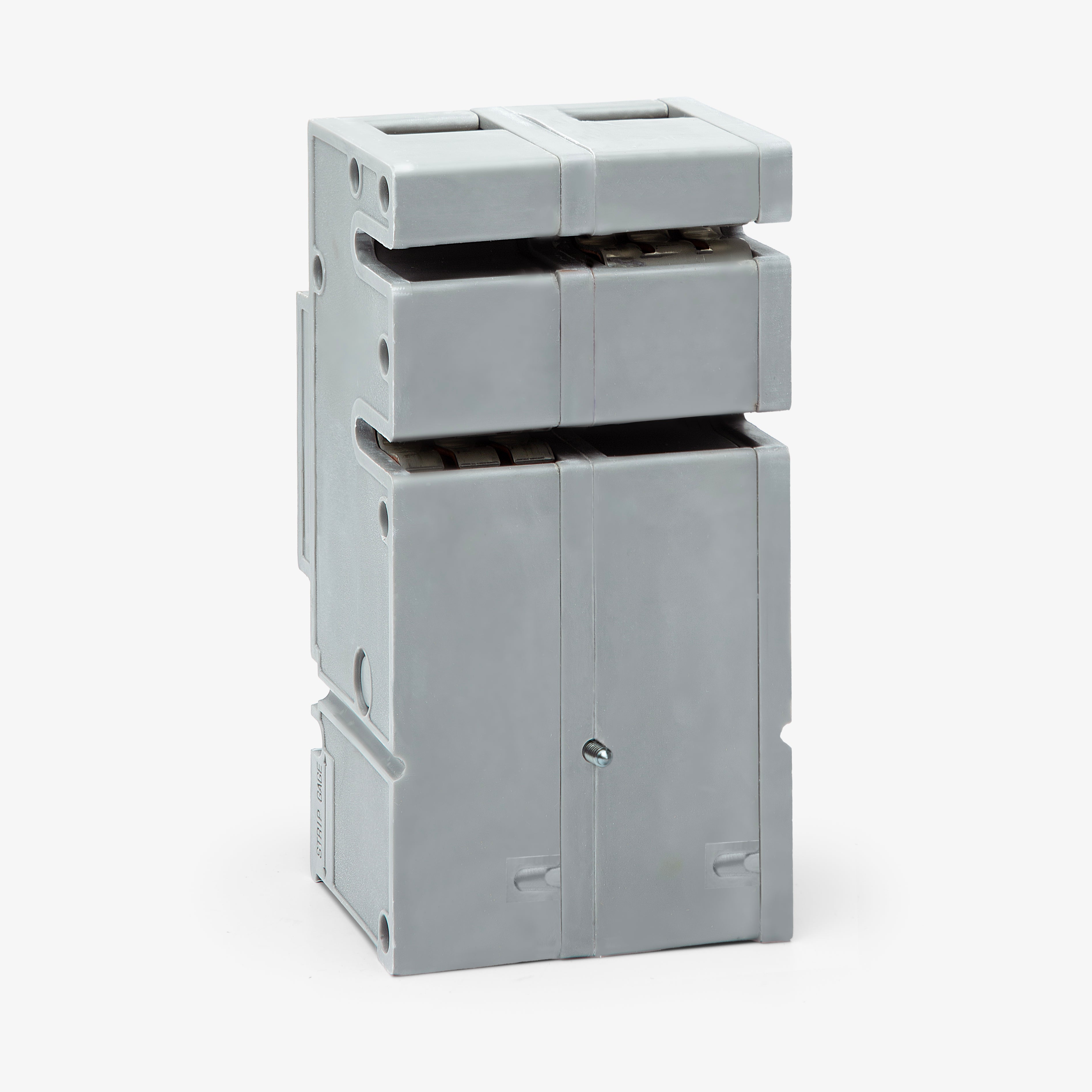

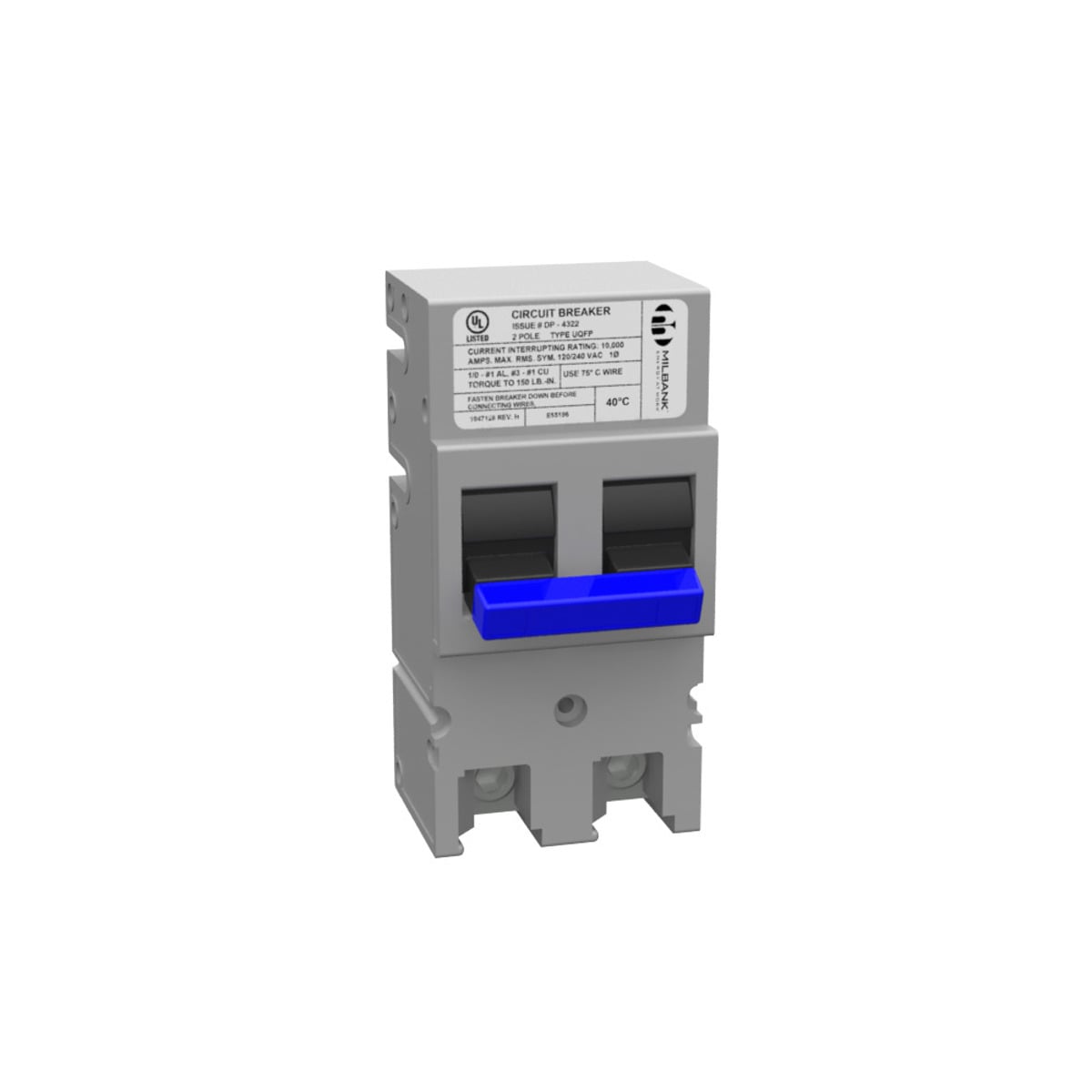

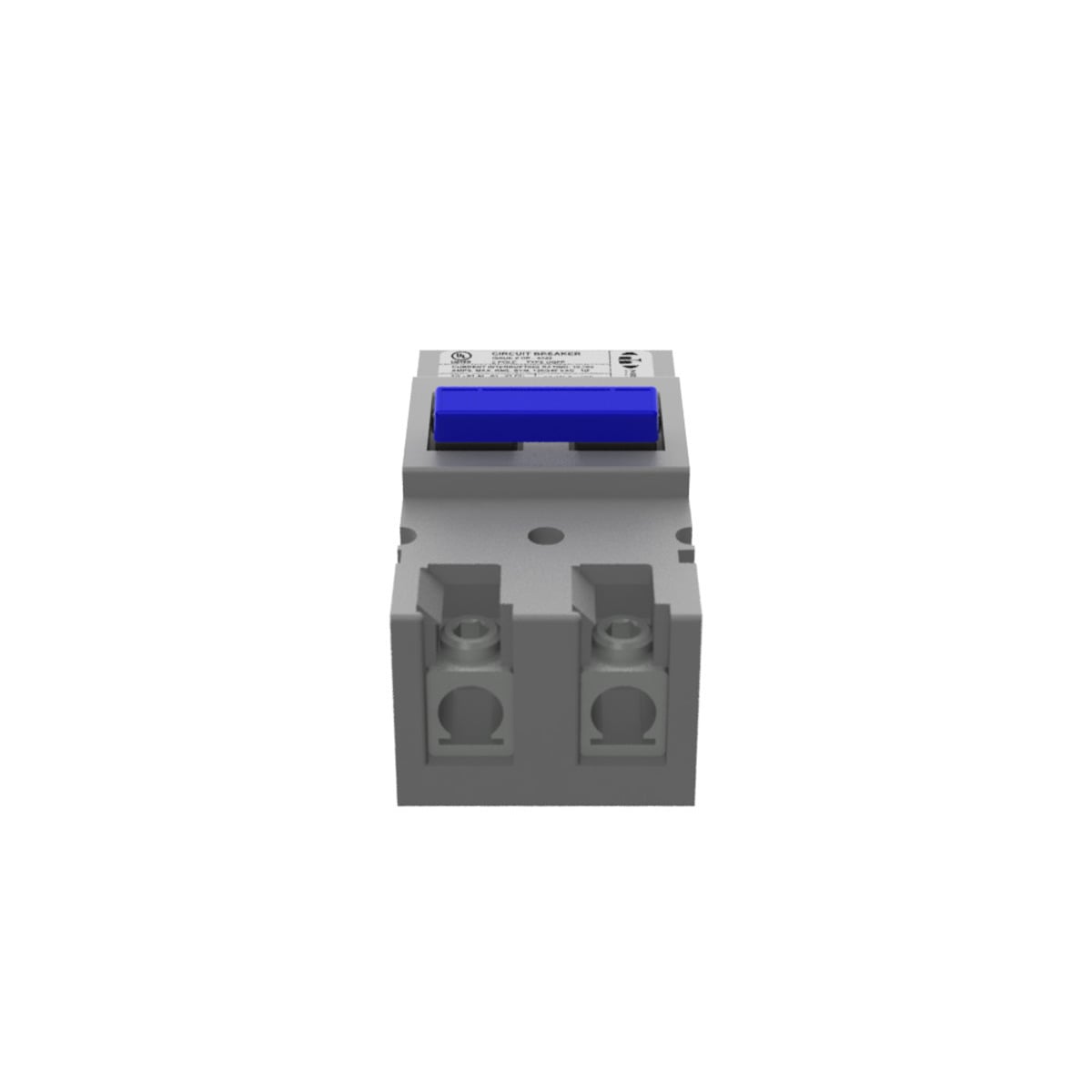

Milbank UQFPH-200 200 amp 2 pole 240 volt plug-in 22k aic

Product Description

The Milbank UQFPH-200 is a 200 Ampere, 2 Pole, 240 Volt current interrupting device designed for metering accessory applications. This UL Listed thermal magnetic circuit breaker features a plug-in mounting type and a 22,000 Ampere Interrupting Capacity. It operates at 60 Hertz and is constructed from non-metallic material, suitable for an operating temperature of 40 Degrees Celsius.

• Plug-in mounting type for straightforward installation.
• Thermal magnetic trip type provides reliable overcurrent protection.
• UL Listed with a 22,000 Ampere Interrupting Capacity.

Product Highlights

This Milbank UQFPH-200 circuit breaker provides robust overcurrent protection for electrical systems.

Product Information

Standard Information

• Brand: MILBANK
• Manufacturer Part Number: UQFPH-200
• Country of Origin: United States

Technical Specifications

• Catalog Number: UQFPH-200
• Country of Origin: United States
• Made in USA: Yes
• Actuator: Lever
• Application: Metering Accessory
• Auxiliary Contacts: No Auxiliary Contacts
• Connection Type: Bus to Lug
• Current Rating: 200 Ampere
• Frame Type: F-Frame
• Frequency Rating: 60 Hertz
• Interrupting Rating: 22,000 Ampere Interrupting Capacity
• Material: Non Metallic
• Poles: 2
• Phase: 1
• Certifications: UL Listed
• Type: Current Interrupting Device
• Operating Temperature: 40 Degrees Celsius
• Protection Type: Thermal Magnetic
• Voltage Rating: 240 Volts Alternating Current
• Special Features: PlugOn
• Series: UQFP
• Mounting Type: Plug-In
• Functions: Long Time and Instantaneous Trip
• Terminal Connection: Load Side Lug
