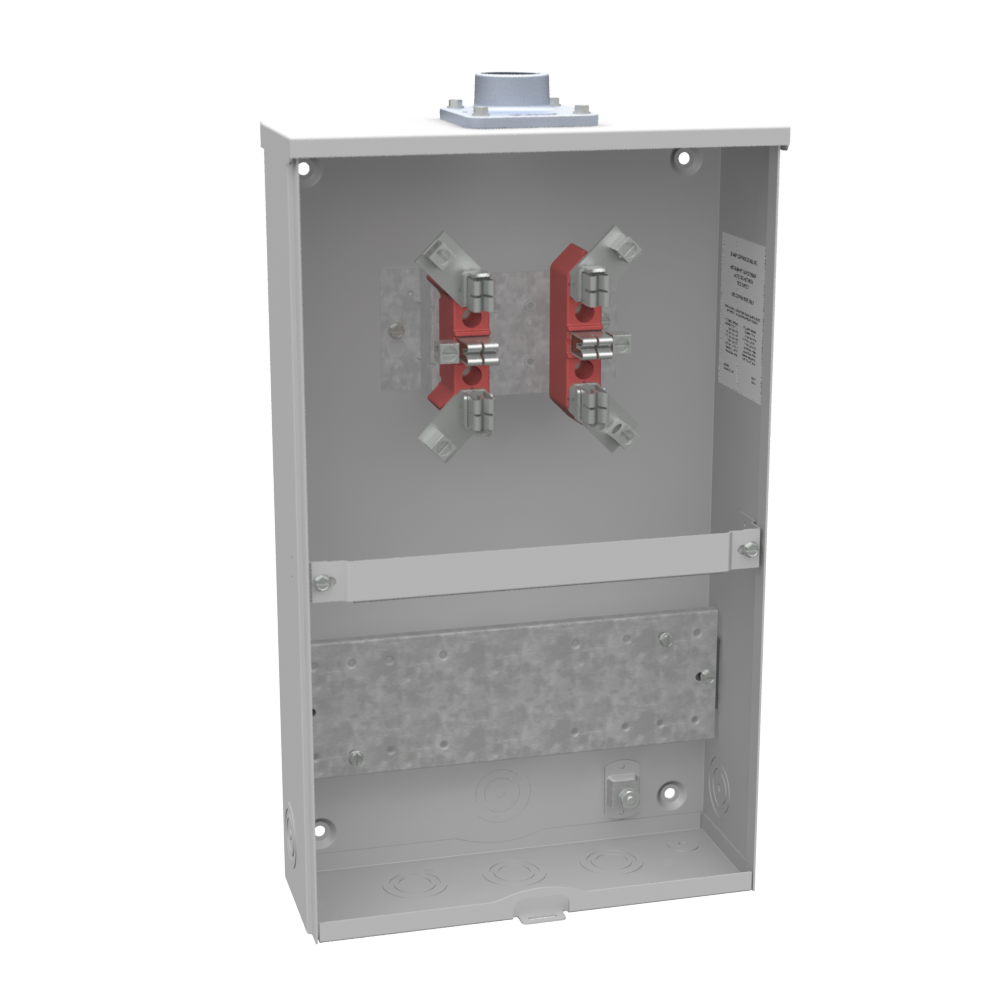

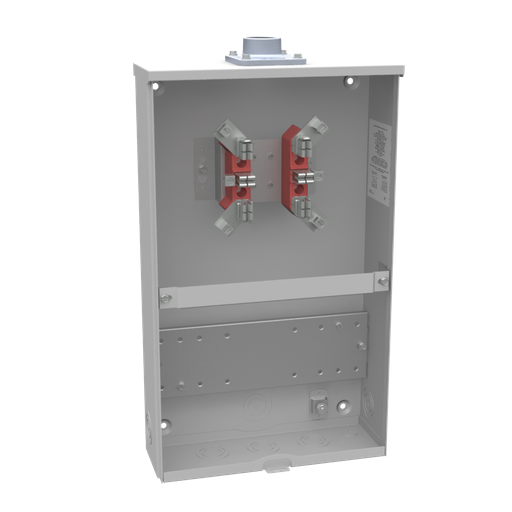

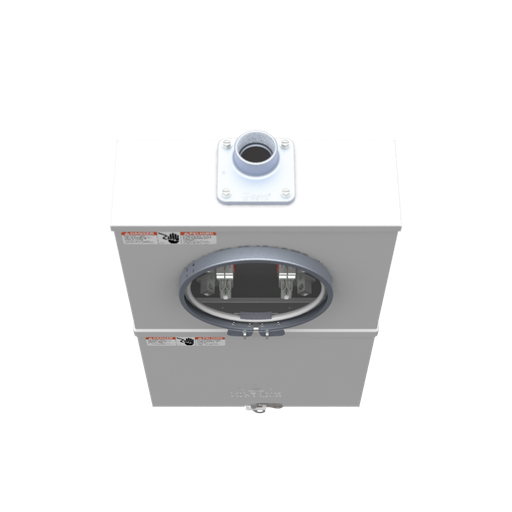

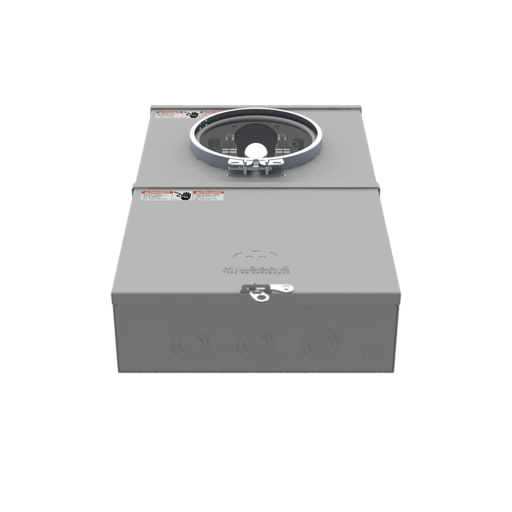

Milbank UC7636-YL-TGE-DES 6-Meter Socket

Product Description

The Milbank UC7636-YL-TGE-DES is a 6-Meter Socket designed for efficient power distribution. Its robust construction and reliable features make it suitable for various applications. This meter socket is crafted from G90 galvanized steel and features UL approval, ensuring safety and performance.

• Ringless type design
• Surface mounting capability
• Rated for 600 VAC at 60 Hz

Product Highlights

Ideal for overhead and underground services, this meter socket offers a compact size of twelve inches wide by four and one-eighth inches deep by twenty inches high. Designed to accommodate wire sizes from twelve to ten AWG, it is suitable for a range of installations.

Product Information

Standard Information

• Manufacturer: Milbank Mfg. Co.
• UPC: 78457214578

Technical Specifications

• Size: 12 inches W x 4 1/8 inches D x 20 inches H
• Amperage: 20 Amps
• Voltage Rating: 600 VAC at 60 Hz
• Wire Size: 12 to 10 AWG (Line/Load)
• Enclosure Type: NEMA 3R
• Material: G90 galvanized steel
• Hub Type: 1 1/4 inch hub
• Circuit Configuration: 1 phase
• Devices Included: Test switch prewired
• Approval: UL listed
