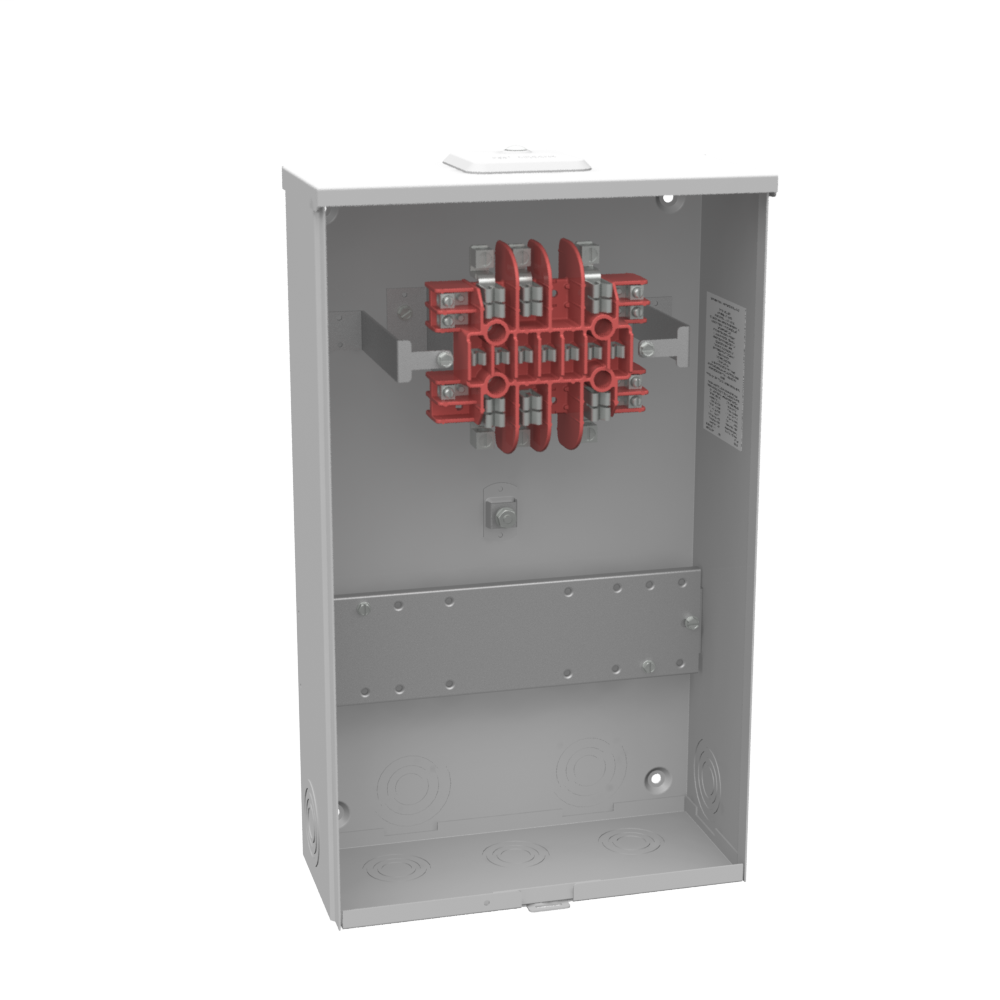

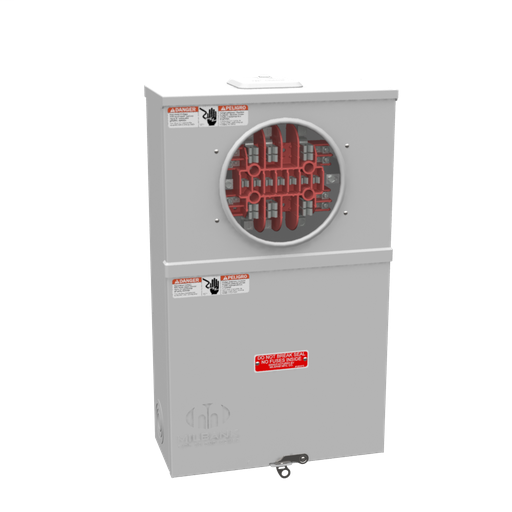

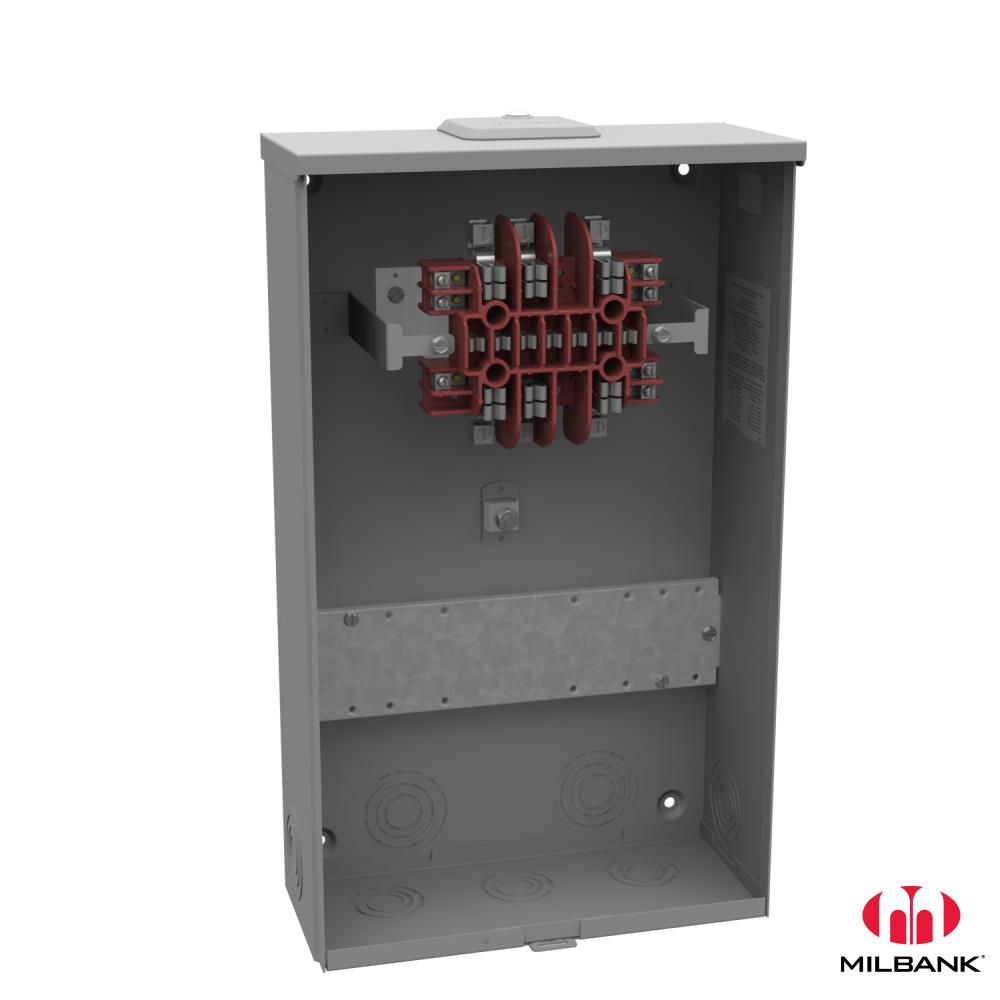

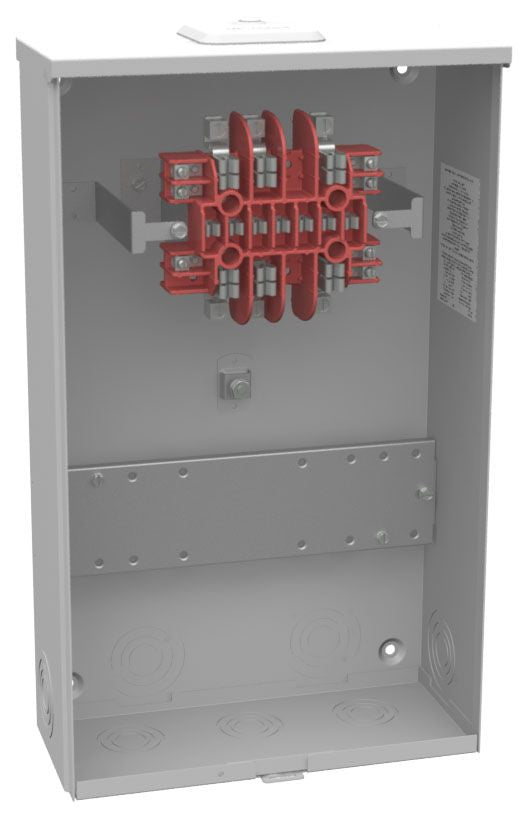

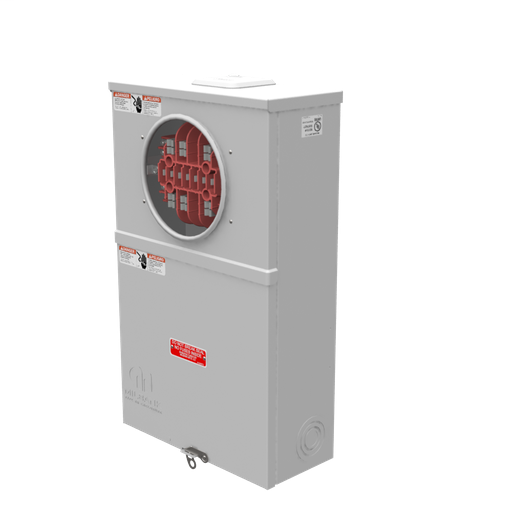

Milbank UC3433-XL 13 Terminal Ring Type Small Closing Plate Test Switch Provision

Product Description

Milbank UC3433-XL is a ring type meter socket designed for various electrical applications. It accommodates up to thirteen terminals and is ideal for both overhead and underground cable entry. This unit is made from G90 galvanized steel, and has a powder coat finish for enhanced durability.

• 20 amp current rating
• Standard Type 3R, UL listed
• Surface mount design

Product Highlights

This meter socket is suitable for metering applications, featuring a robust construction and efficient cable entry options.

Product Information

Standard Information

• Brand: Milbank Manufacturing
• Catalog Number: UC3433-XL

Technical Specifications

• Type: Ring Type Meter Socket
• Height: 20 inches
• Width: 12 inches
• Length: 5.125 inches
• Voltage: 600 volt
• Amperage: 20 amp
• Material: Steel
• Enclosure: NEMA 3R
• Frequency: 60 Hz
• Hub Style: Small Closing Plate
• Cable Entry: Overhead or underground
• Number of Phases: 3 phase
• Number of Terminations: 13
• Insulation Type: Glass Polyester
• Mounting Type: Surface Mount
