Milbank U9700-RRL 7 Term Ringless Large Hub Opening Adapt to Small Lever Bypass OH

Product Description

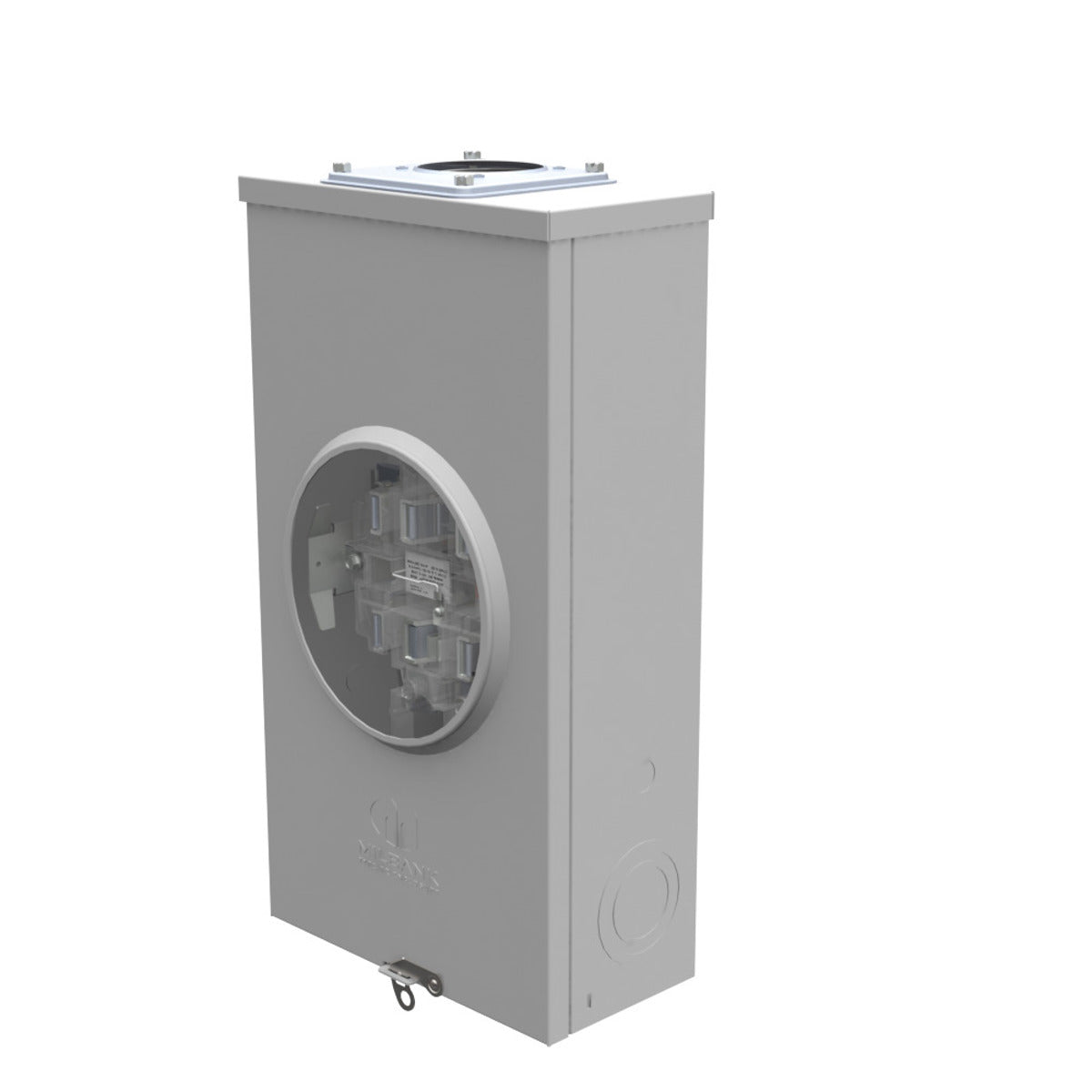

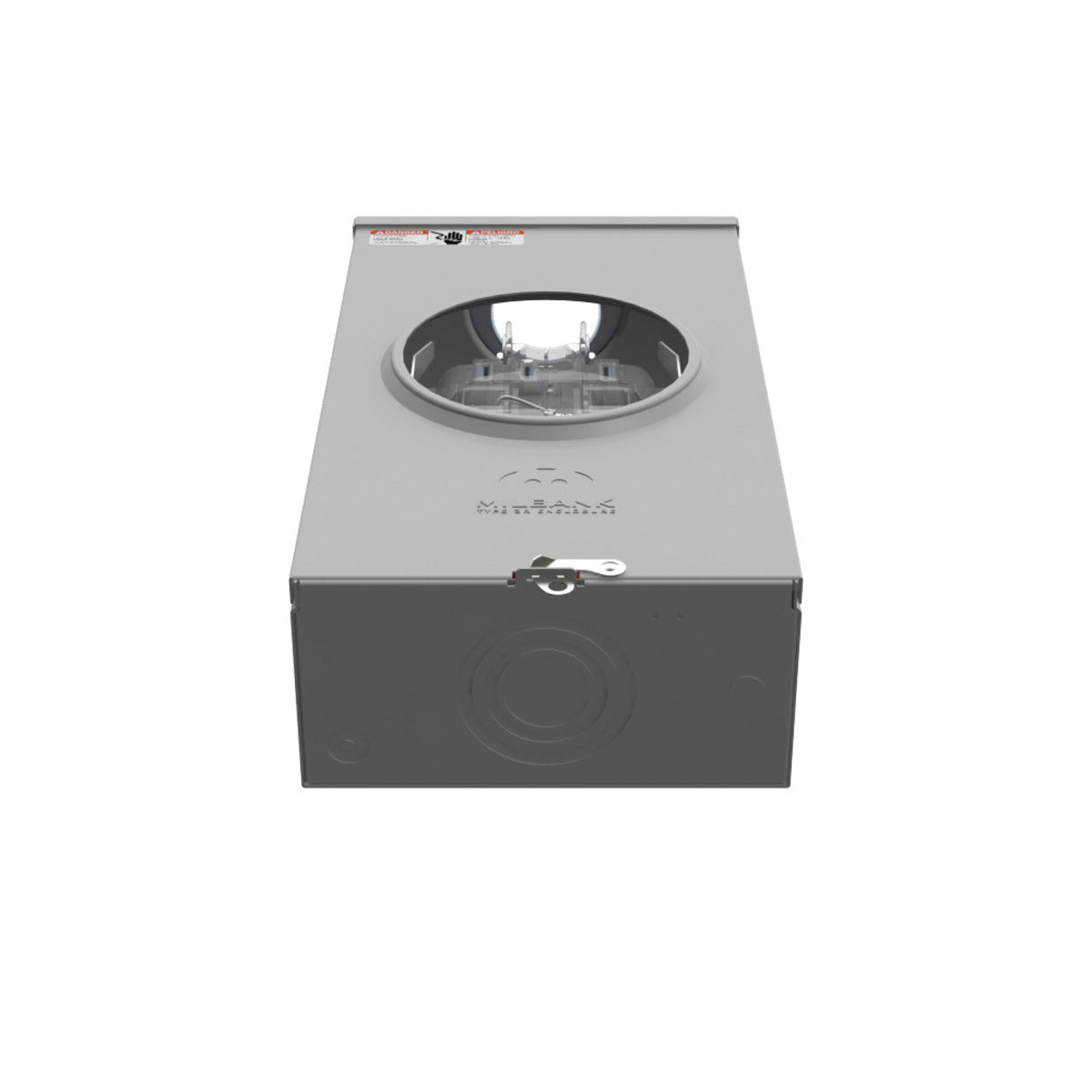

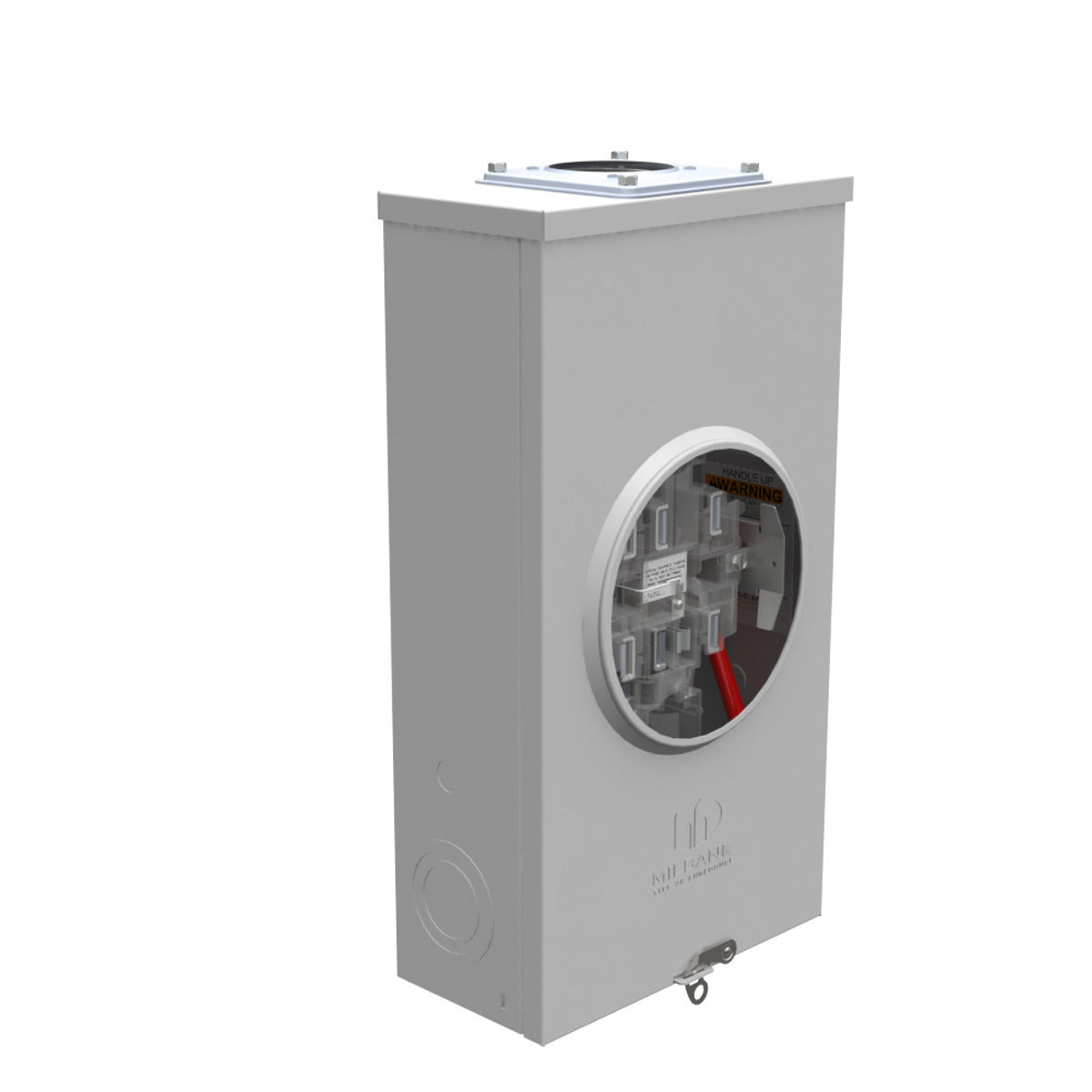

The MILBANK U9700-RRL is a 7 terminal ringless meter socket with a large hub opening adapted to small hub opening and lever bypass for overhead service. It is rated for 200A and 600V AC at 60 Hz, suitable for 3-phase 4-wire configurations. The unit features a NEMA 3R enclosure made of powder-coated G90 galvanized steel.

• 200 Ampere current rating
• Lever bypass switch type
• NEMA 3R enclosure

Product Highlights

This meter socket is ideal for overhead service applications requiring a reliable and durable solution.

Product Information

Standard Information

• Brand: MILBANK
• Manufacturer Part Number: U9700-RRL
• Country of Origin: United States

Technical Specifications

• Catalog Number: U9700-RRL
• Manufacturer: Milbank
• Brand: Milbank
• Country of Origin: United States
• Made in USA: Yes
• Amperage Rating: 200 Ampere
• Application: Meter Socket
• Bypass Type: Lever
• Cable Entry: Overhead
• Enclosure: G90 Galvanized Steel with Powder Coat Finish
• Frequency Rating: 60 Hertz
• Insulation: Glass Polyester
• Material: G90 Galvanized Steel With Powder Coat Finish
• Mounting: Surface Mount
• Number of Jaws: 7 Terminal
• Phase: 3
• Standard: UL Listed;Type 3R
• UPC: 784572143241
• GTIN: 00784572143241
• Item Type: Ringless Meter Socket
• Terminals: Lay In
• Voltage Rating: 600 Volts Alternating Current
• Service Type: Overhead
• Circuit Configuration: 3-Phase 4-Wire

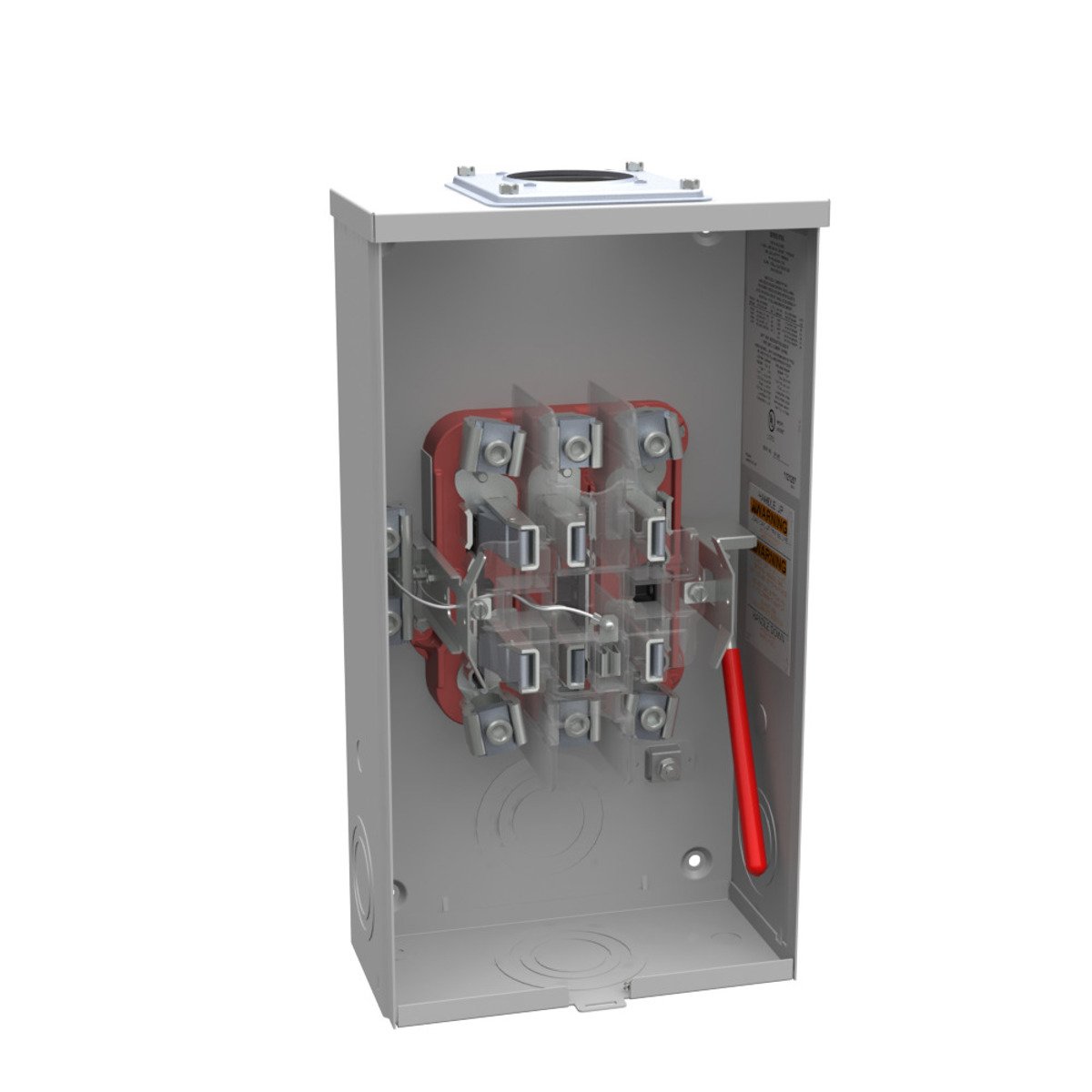

• Bypass Switch Type: Lever

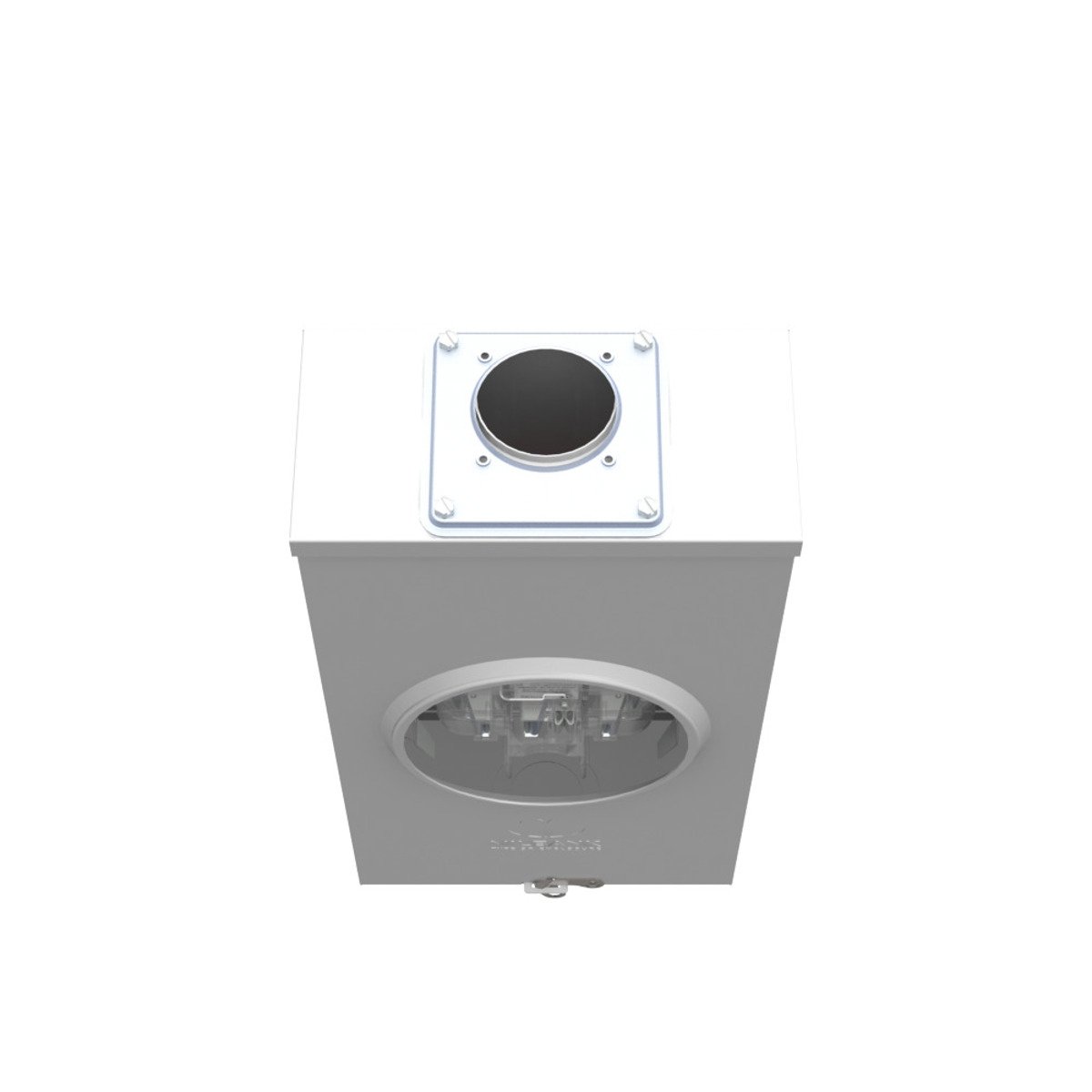

• Hub Type: Large Hub Opening Adapted to Small Hub Opening
• Knockouts: (2) 3 Inch, (1) 2-1/2 Inch, (2) 3/4 Inch, (1) (1/4 Inch - 1/2 Inch) Concentric Knockout
• Wire Size: 6 AWG to 350 KCMIL (Line/Load)
• Enclosure Material: Powder Coated G90 Galvanized Steel
• Approval: UL
• Main Breaker Size: No Main Breaker
• Equipment Ground: Grounding Stud
• Line Side Wire Range: 6 AWG - 350 kcmil
• Load Side Wire Range: 6 AWG - 350 kcmil
• Number of Main Breakers: 0
• Number of Meter Positions: 1 Position
• Number Of Receptacles: 0
• Type: Ringless Meter Socket
• Hub Opening: Large Hub Opening Adapted to Small Hub Opening
• Jaw Quantity: 7 Terminal
• Number Of Cutouts: 0
• Feed Type: Overhead
• Mounting Type: Surface
