Milbank U9551-R-5T9 5 Term Ringless Large Hub Opening Lever Bypass

Product Description

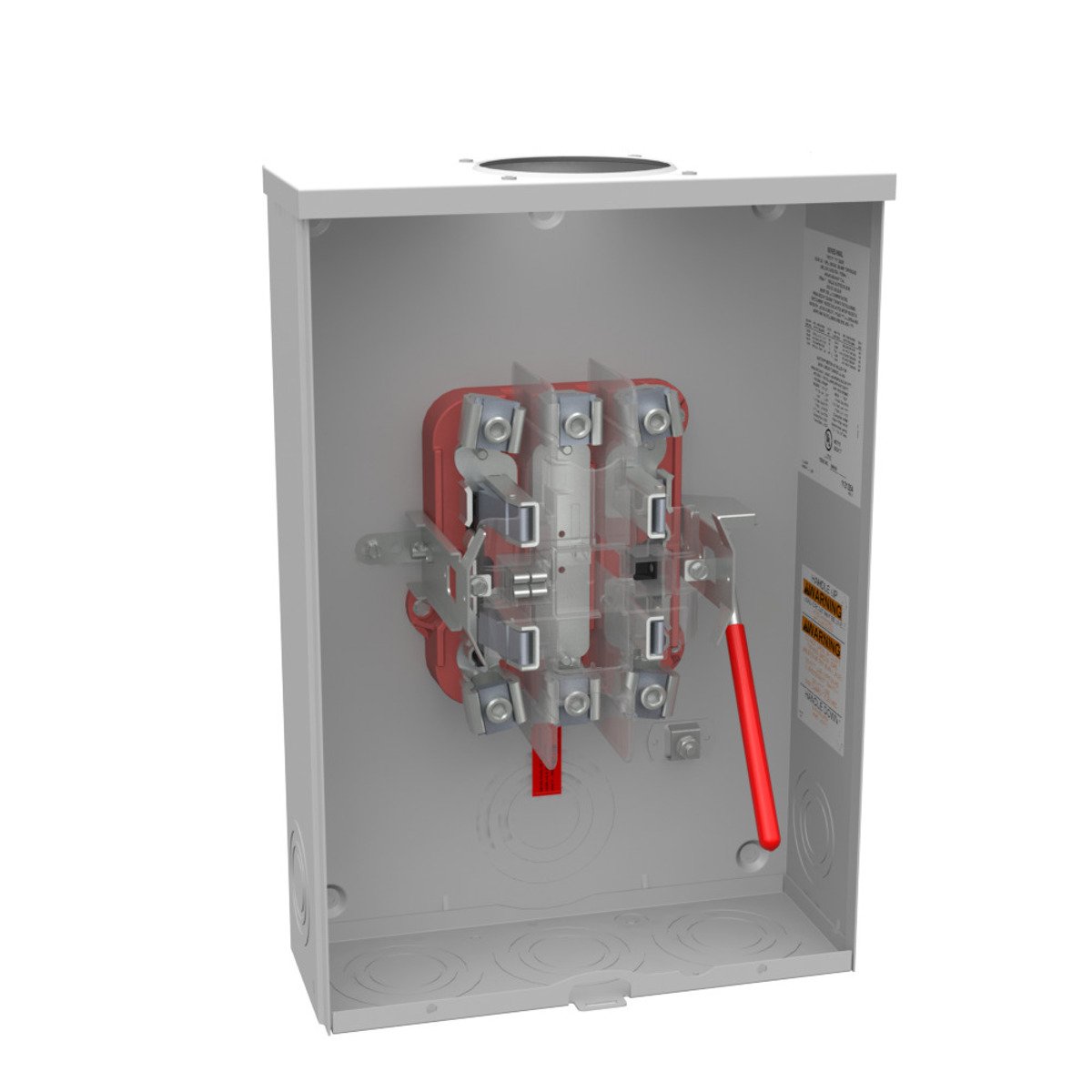

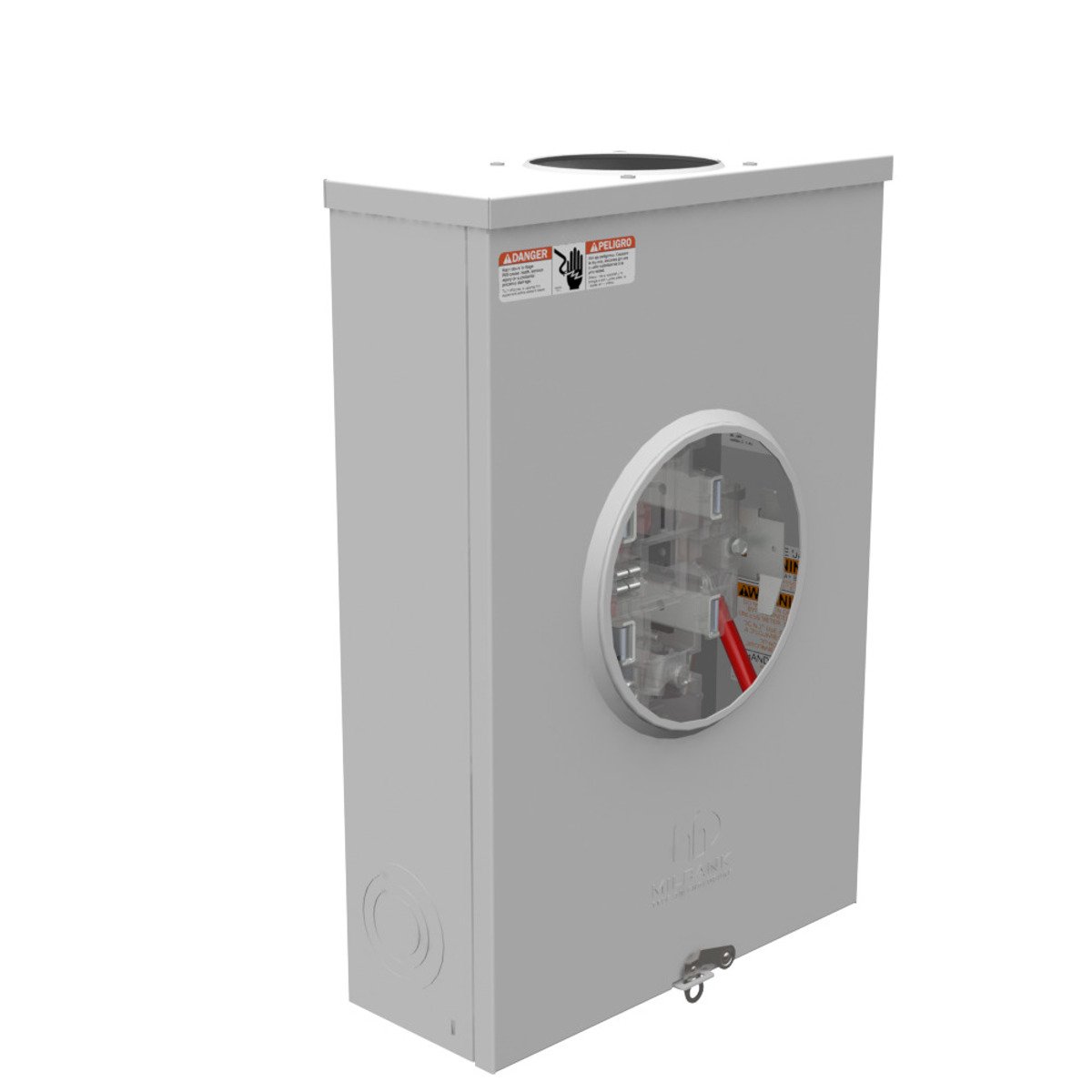

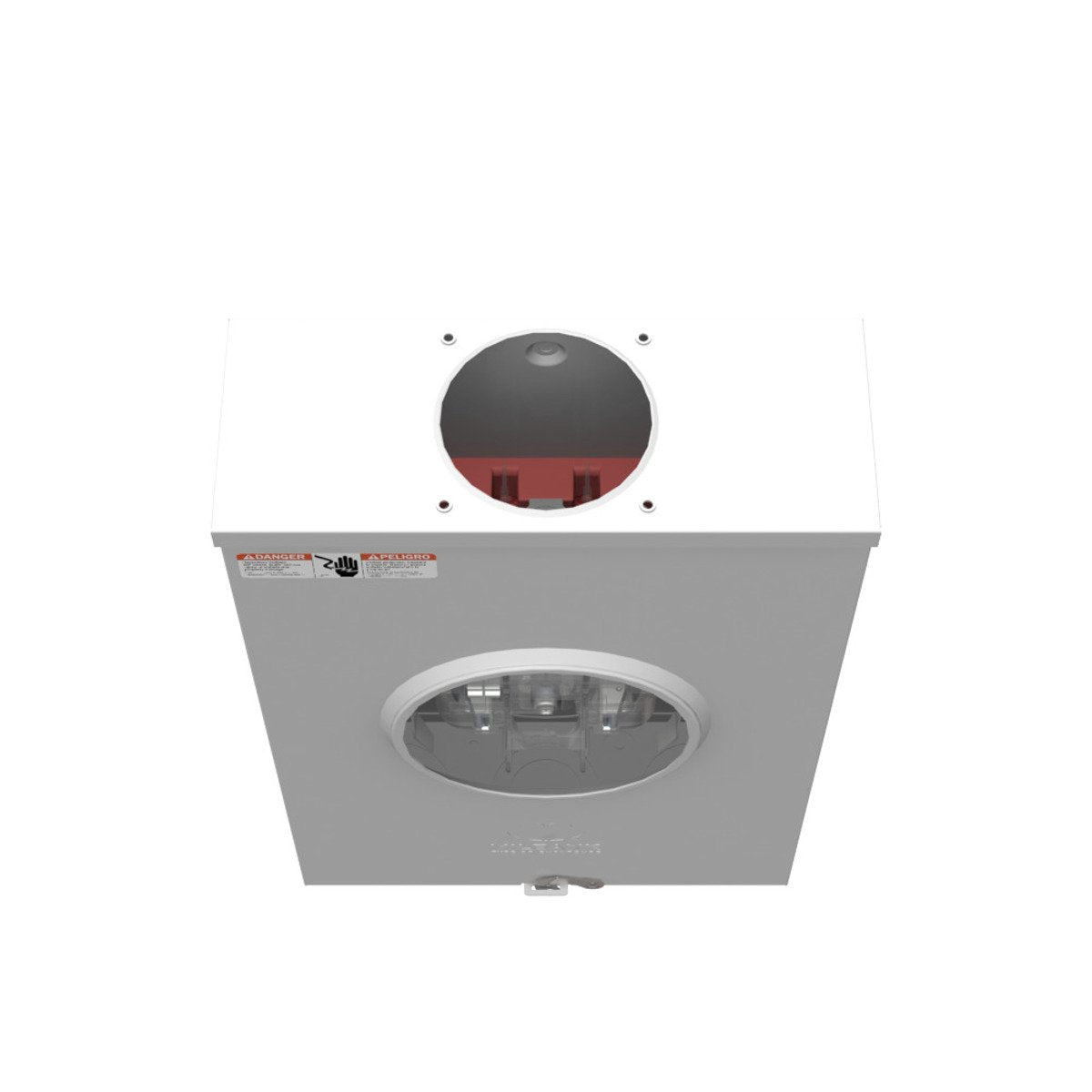

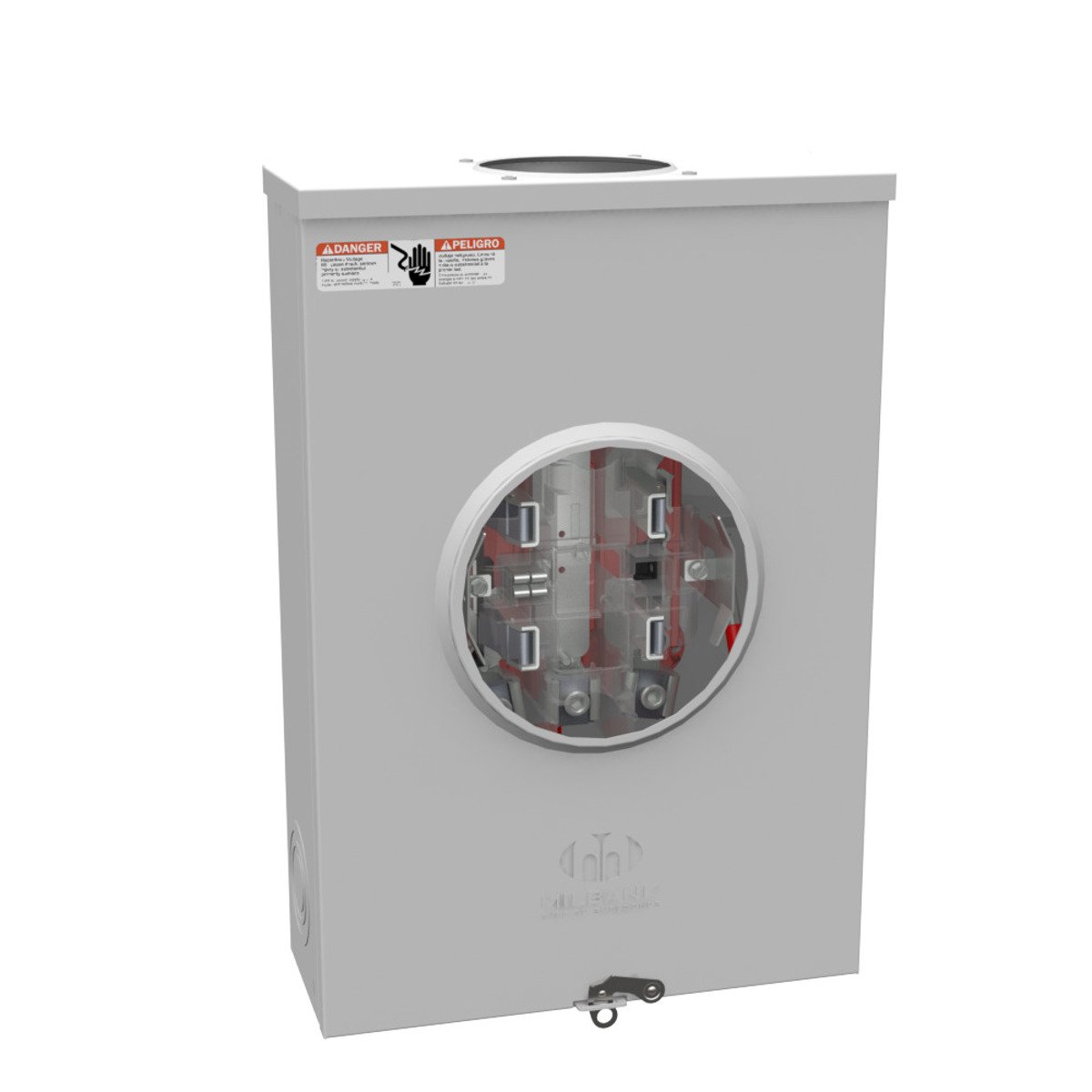

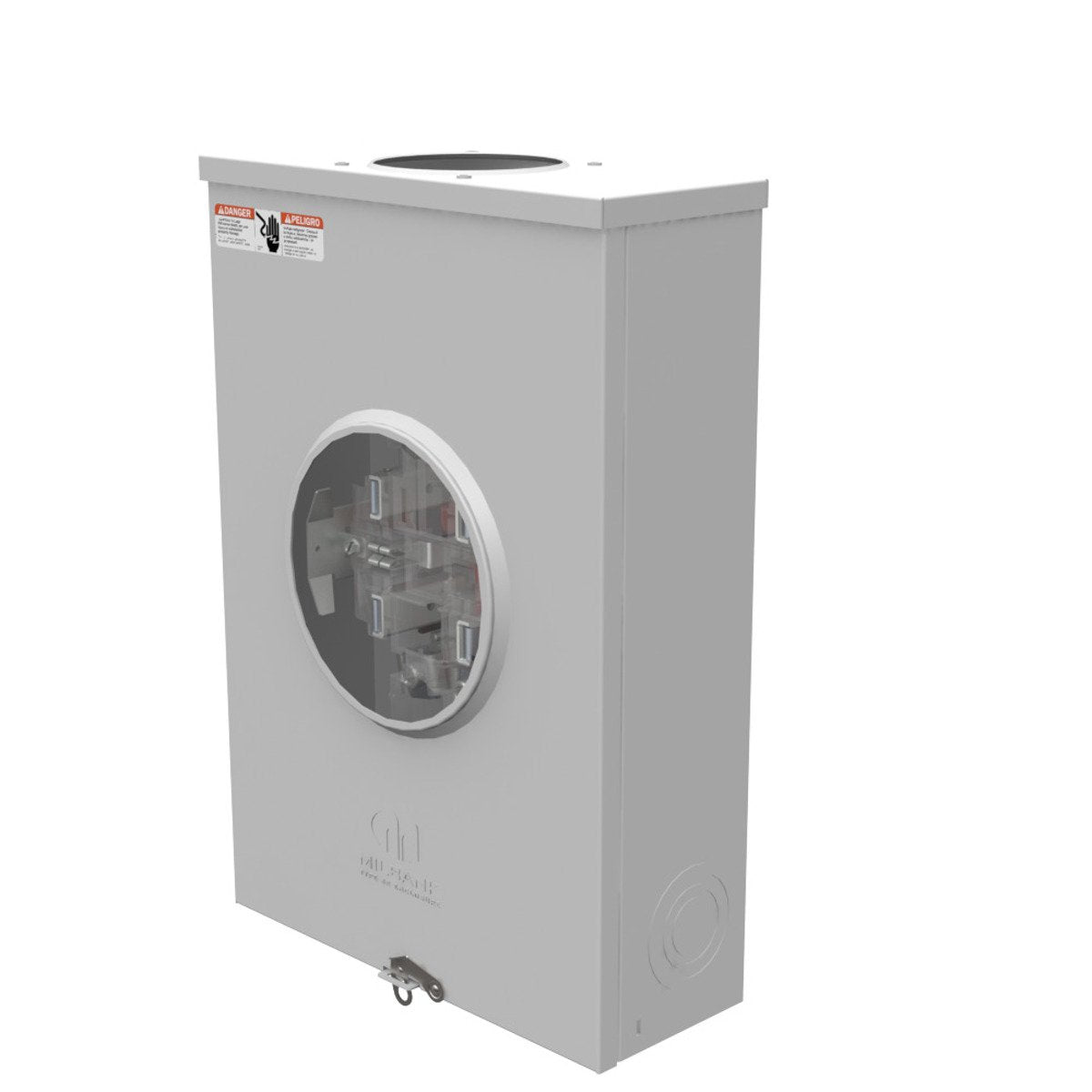

Milbank offers the U9551-R-5T9, a ringless meter socket designed for effective integration in electrical systems. This meter socket is rated for 200 Amps and is suitable for 600 Volts. It features a five-terminal design and provides robust overhead and underground cable entry. The unit is constructed from G90 galvanized steel and has a powder-coated finish for durability.

• Amperage rating of 200
• Supports overhead or underground cable entry
• UL listed for safety compliance

Product Highlights

This meter socket is ideal for electrical distribution projects requiring a reliable meter connection.

Product Information

Standard Information

• Manufacturer: Milbank
• Catalog Number: U9551-R-5T9

Technical Specifications

• Number of Jaws: 5
• Voltage Rating: 600 Volts AC
• Amperage Rating: 200 Amps
• Enclosure: G90 Galvanized Steel with Powder Coat Finish
• Dimensions: 4.844L x 13W x 19H inches
• Conductor Size: 6 AWG - 350 KCMIL Copper/Aluminum
• Frequency Rating: 60 Hertz
• Phase: 1
