Product Description

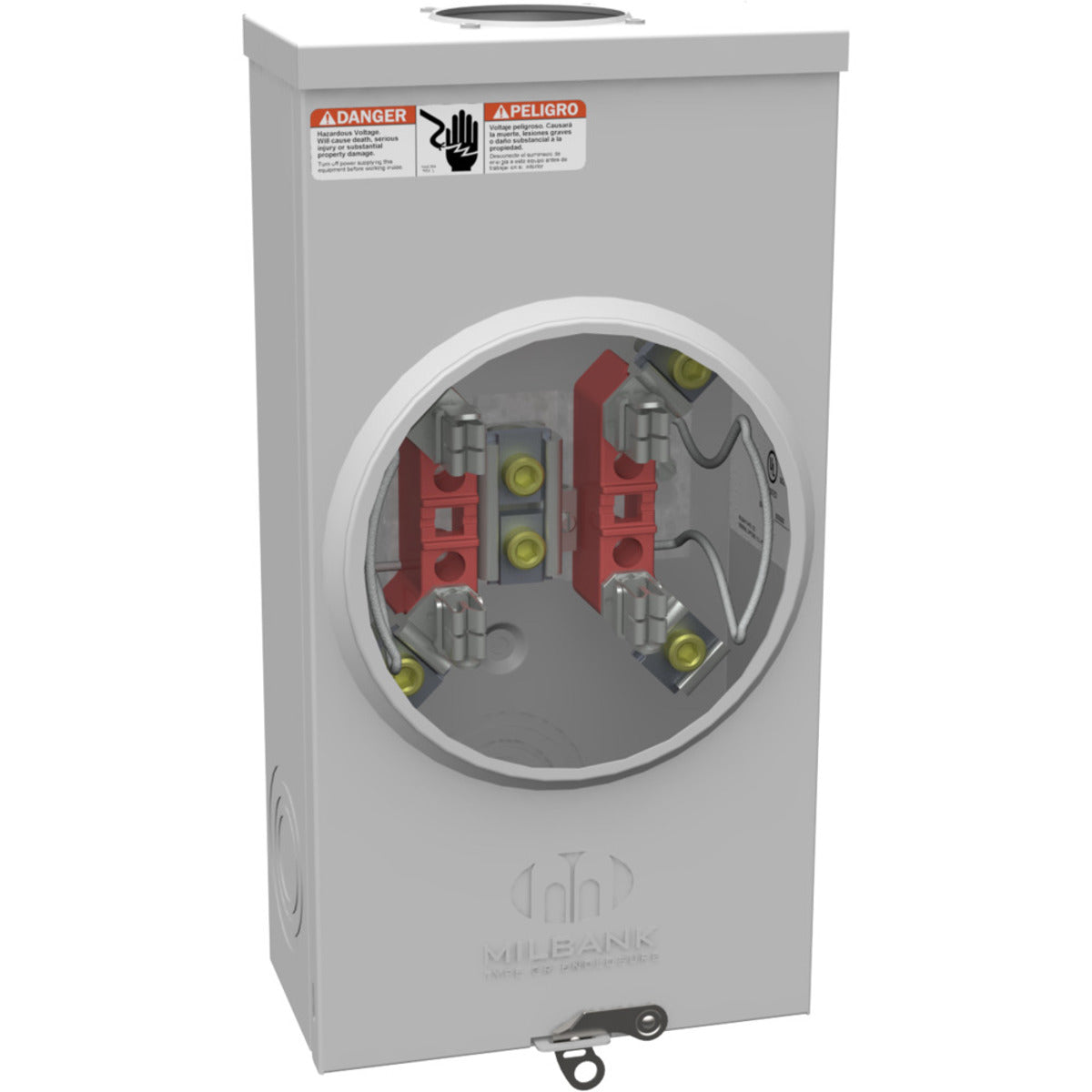

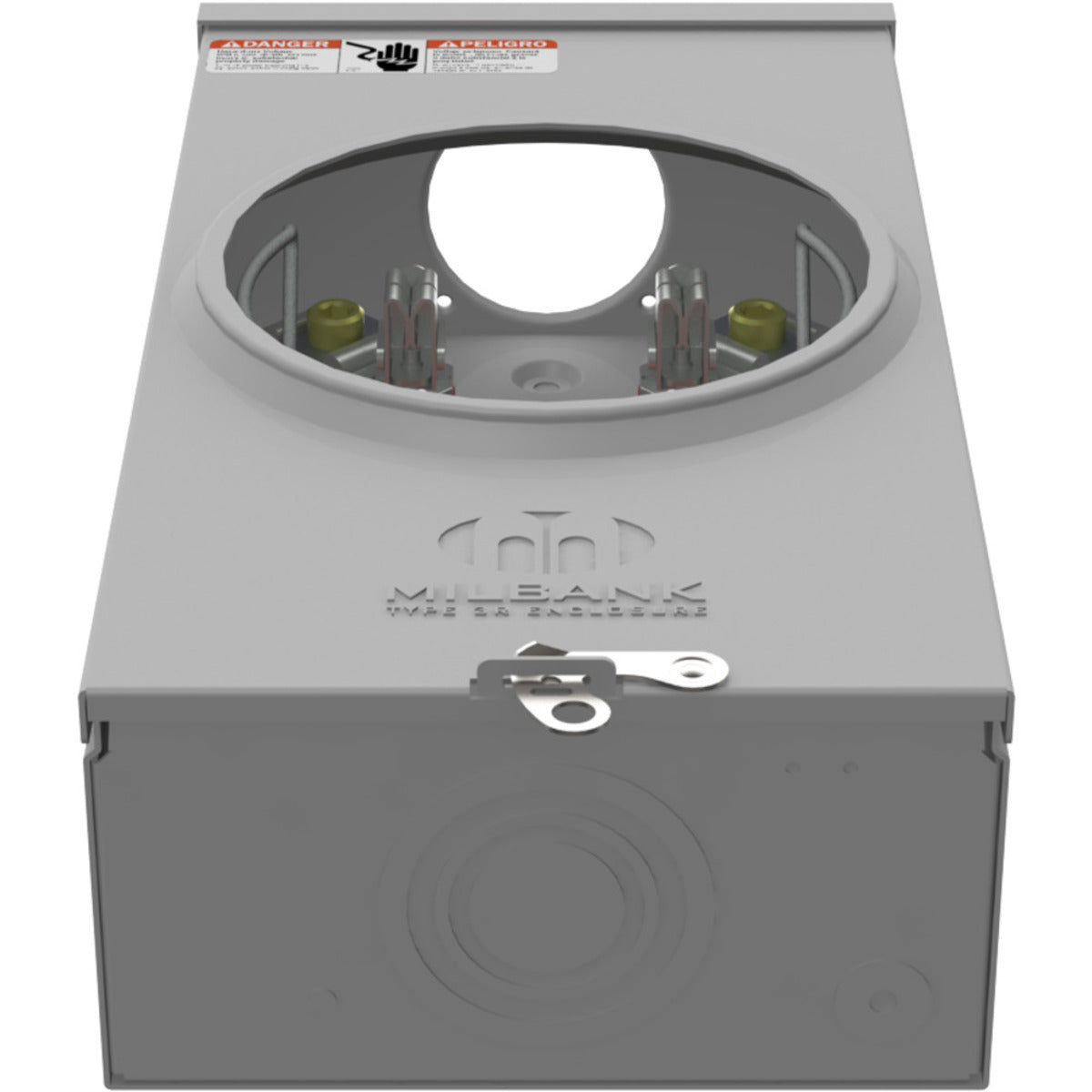

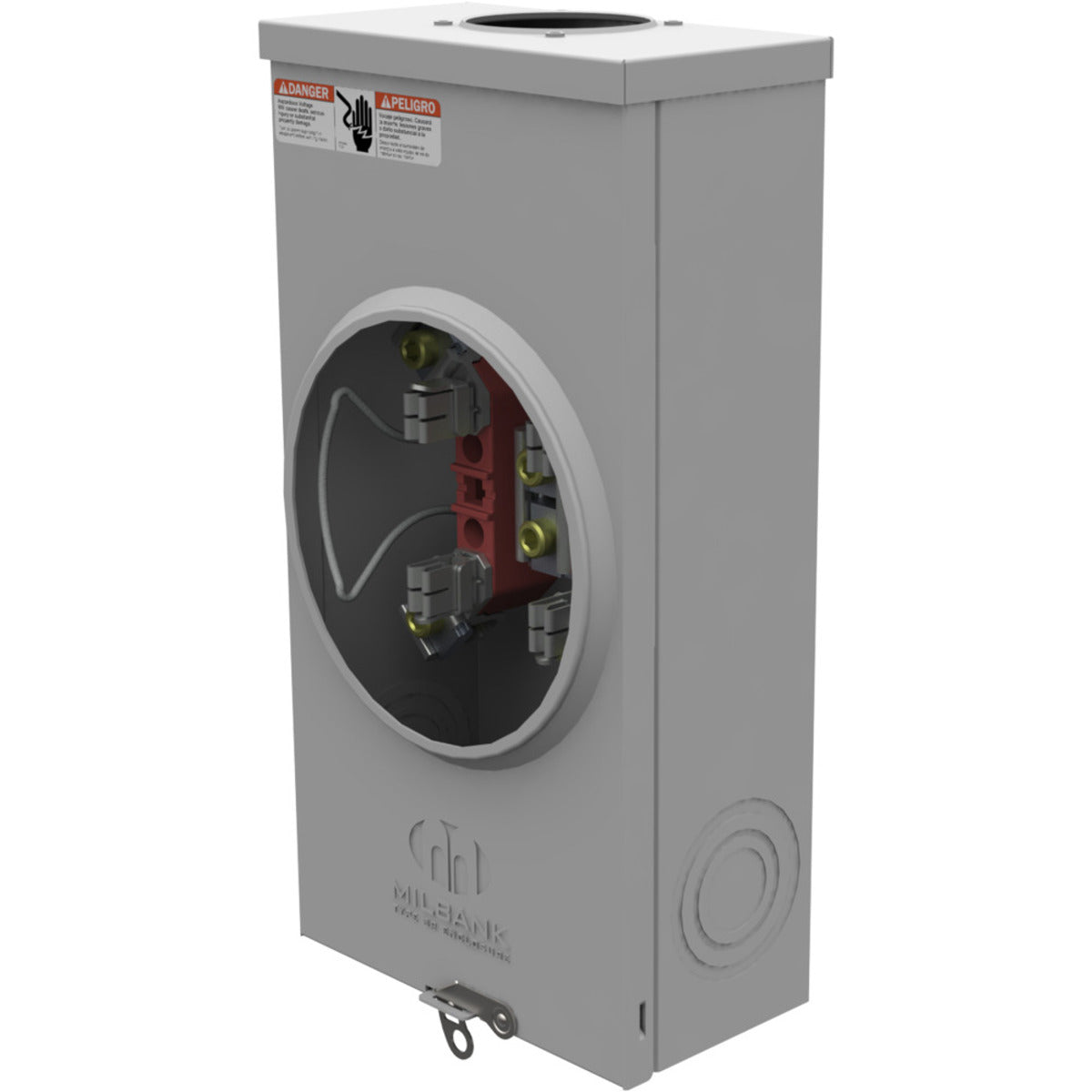

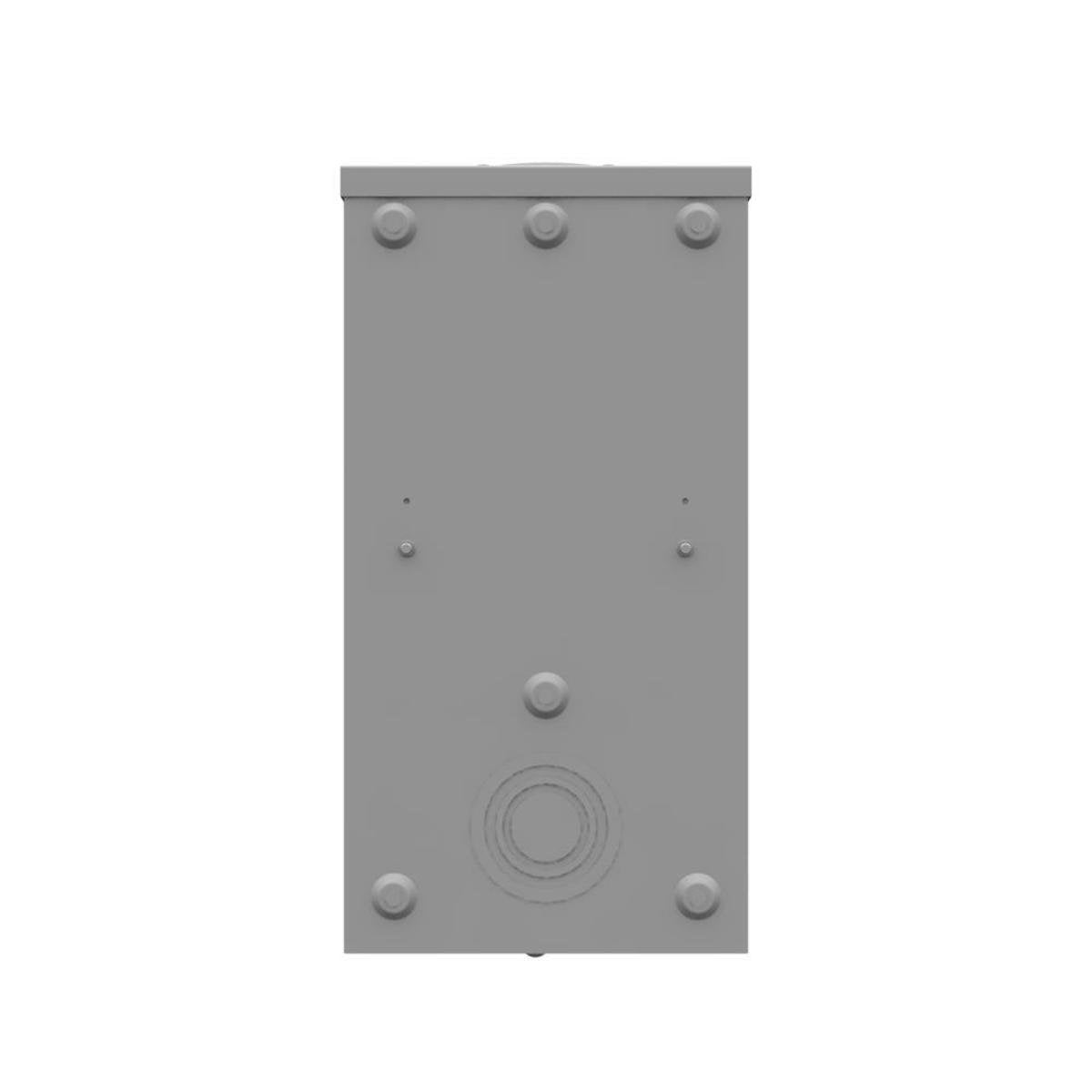

The MILBANK U7262-RL-TG is a 4-terminal, ringless meter socket with a small hub opening and triplex ground, designed for 150 Amp service. It features a G90 galvanized steel enclosure with a powder coat finish, suitable for surface mounting and overhead cable entry. This meter socket is UL Listed and NEMA 3R rated.
- Rated for 150 Amps and 600 VAC
- Features a ringless design with a small hub opening
- Constructed with a G90 galvanized steel enclosure and powder coat finish
Product Highlights
This meter socket is ideal for single-phase, single-position metering applications requiring a robust and reliable connection.
Product Information
Standard Information
-
Brand: MILBANK
-
Manufacturer Part Number: U7262-RL-TG
-
Country of Origin: United States
Technical Specifications
-
Catalog Number: U7262-RL-TG
-
Manufacturer: Milbank
-
Brand: Milbank
-
Country of Origin: United States
-
Made in USA: Yes
-
Amperage Rating: 150 Continuous Ampere
-
Application: Meter Socket
-
Bypass Type: No Bypass
-
Cable Entry: Overhead
-
Enclosure: G90 Galvanized Steel with Powder Coat Finish
-
Frequency Rating: 60 Hertz
-
Insulation: Glass Polyester
-
Material: Steel
-
Mounting: Surface Mount
-
Number of Jaws: 4 Terminal
-
Phase: 1 Phase
-
Standard: UL Listed;Type 3R
-
Item Type: Ringless Meter Socket
-
Terminals: Lay in
-
Voltage Rating: 600 Volts Alternating Current
-
Service Type: Overhead
-
Circuit Configuration: 1-Phase
-
Current Rating: 150 Ampere
-
Bypass Switch Type: No
-
Hub Type: Small Hub Opening
-
Knockouts: (1) (1/4 Inch - 1/2 Inch), (4) (1 Inch - 1-1/4 Inch - 1-1/2 Inch - 2 Inch - 2-1/2 Inch) Concentric Knockout, (1) 1/4 Inch Solid Knockout
-
Neutral Type: Triplex Ground
-
Wire Size: 6 AWG to 350 KCMIL (Line/Load)
-
Enclosure Material: Powder Coated G90 Galvanized Steel
-
Approval: UL
-
Main Breaker Size: No Main Breaker
-
Equipment Ground: Triplex Ground
-
Hub Opening: Small Hub Opening
-
Line Side Wire Range: 6 AWG - 350 kcmil
-
Load Side Wire Range: 6 AWG - 350 kcmil
-
Number of Main Breakers: 0
-
Number of Meter Positions: 1 Position
-
Number Of Receptacles: 0
-
Terminal Type: Lay In
-
Number of Phases: 1 Phase
-
Applications: Meter Socket
-
Frequency: 60 Hz
-
Insulation Type: Glass Polyester
-
Mounting Type: Surface Mount
-
Number of Terminations: 4
-
Voltage: 600 Volt
-
Jaw Quantity: 4 Terminal
