Product Description

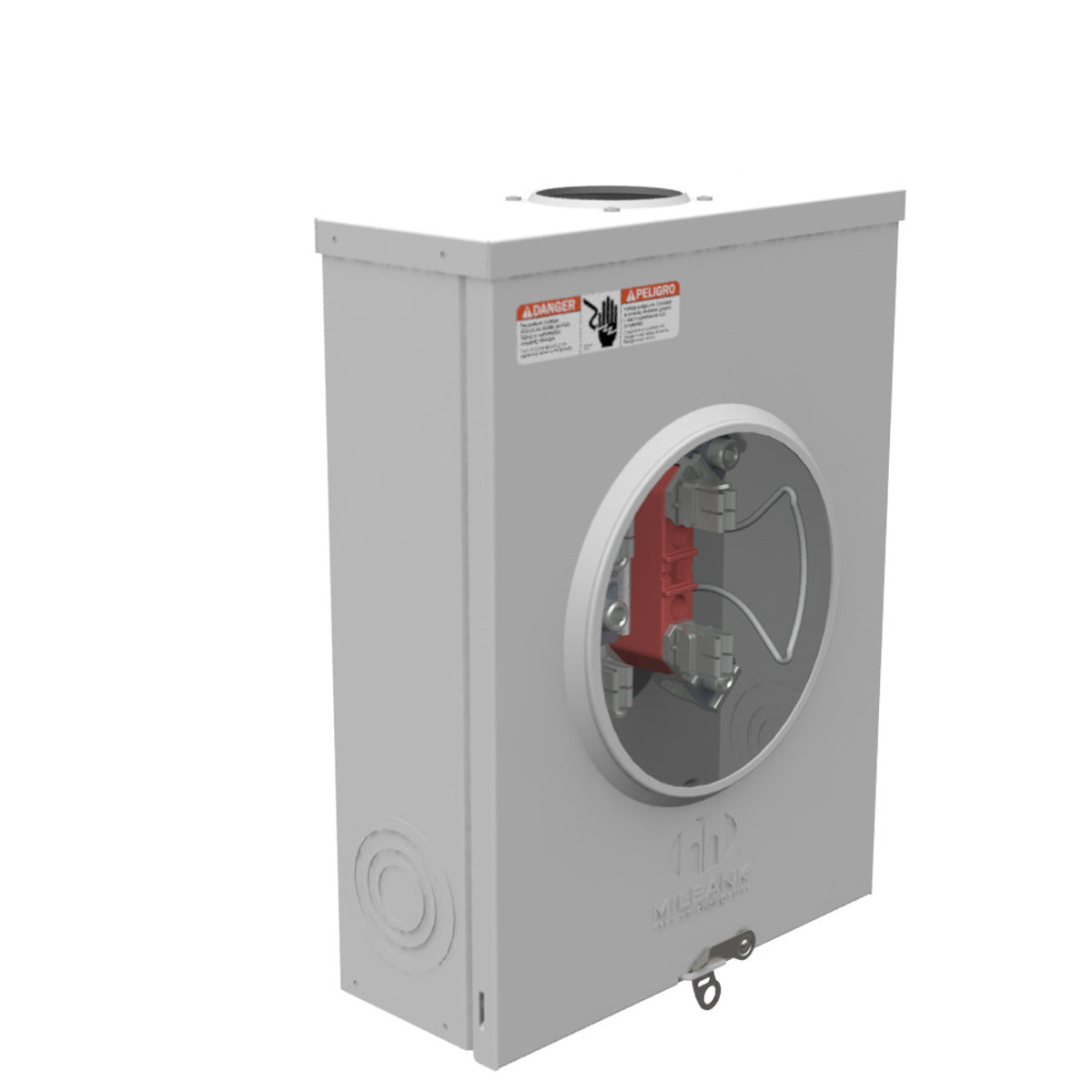

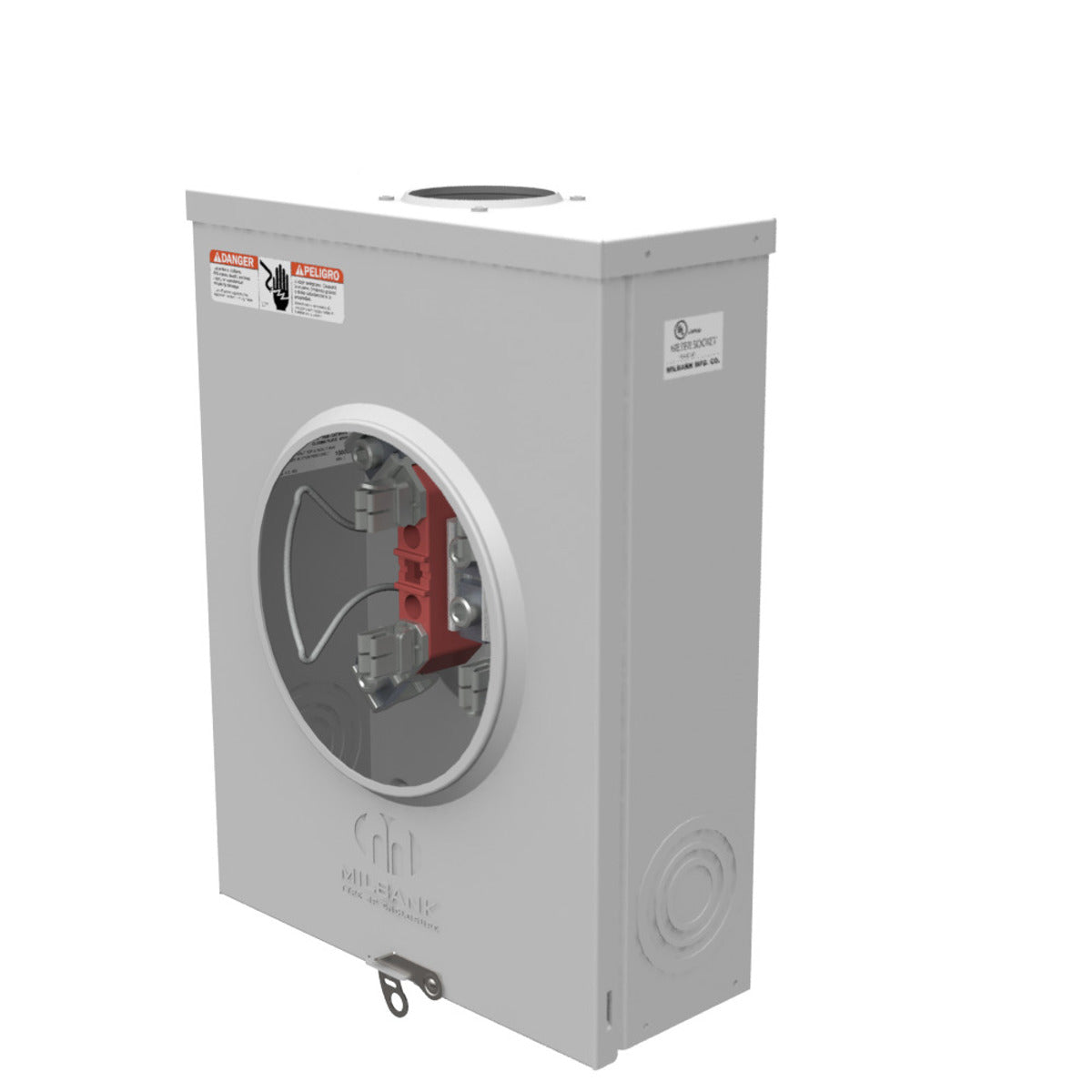

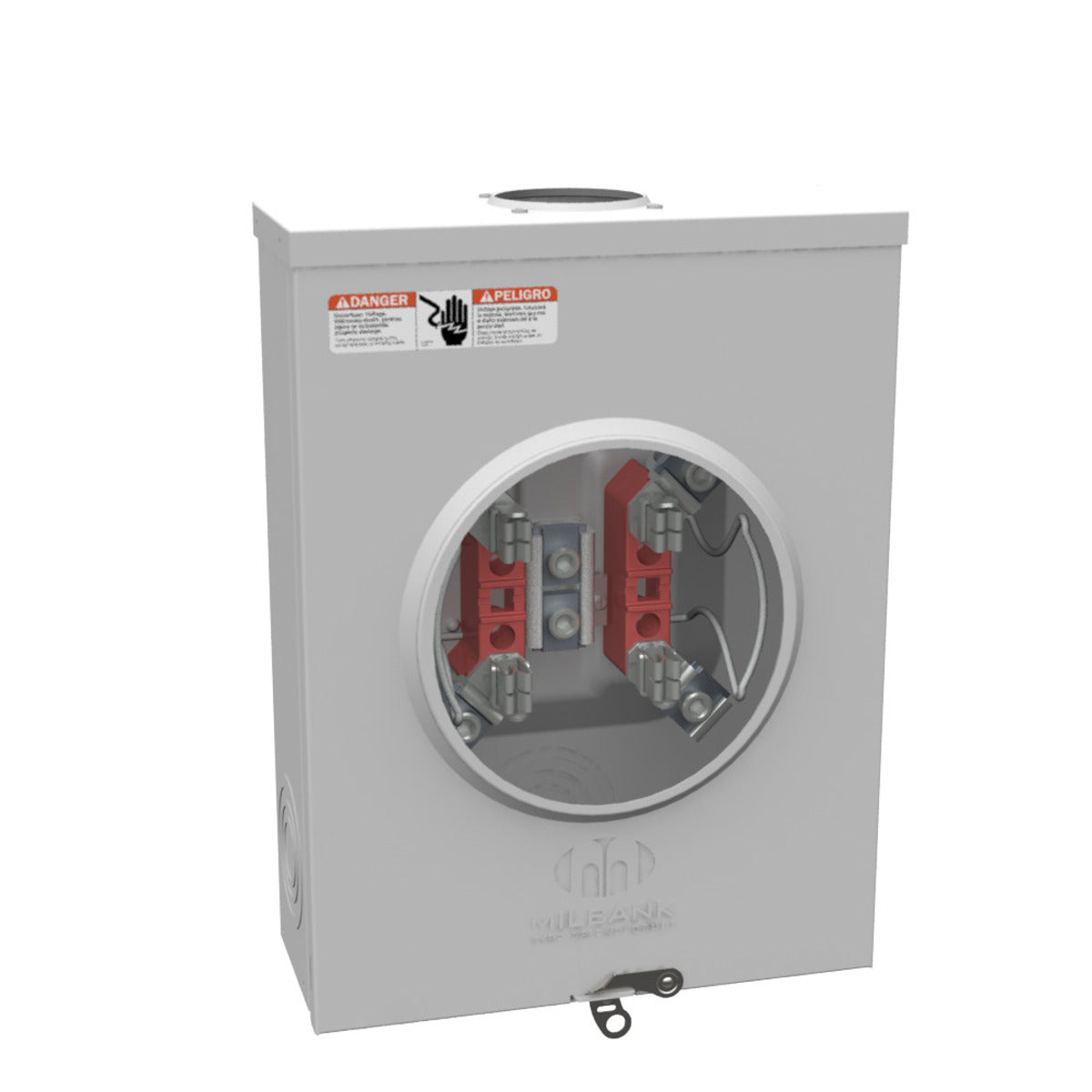

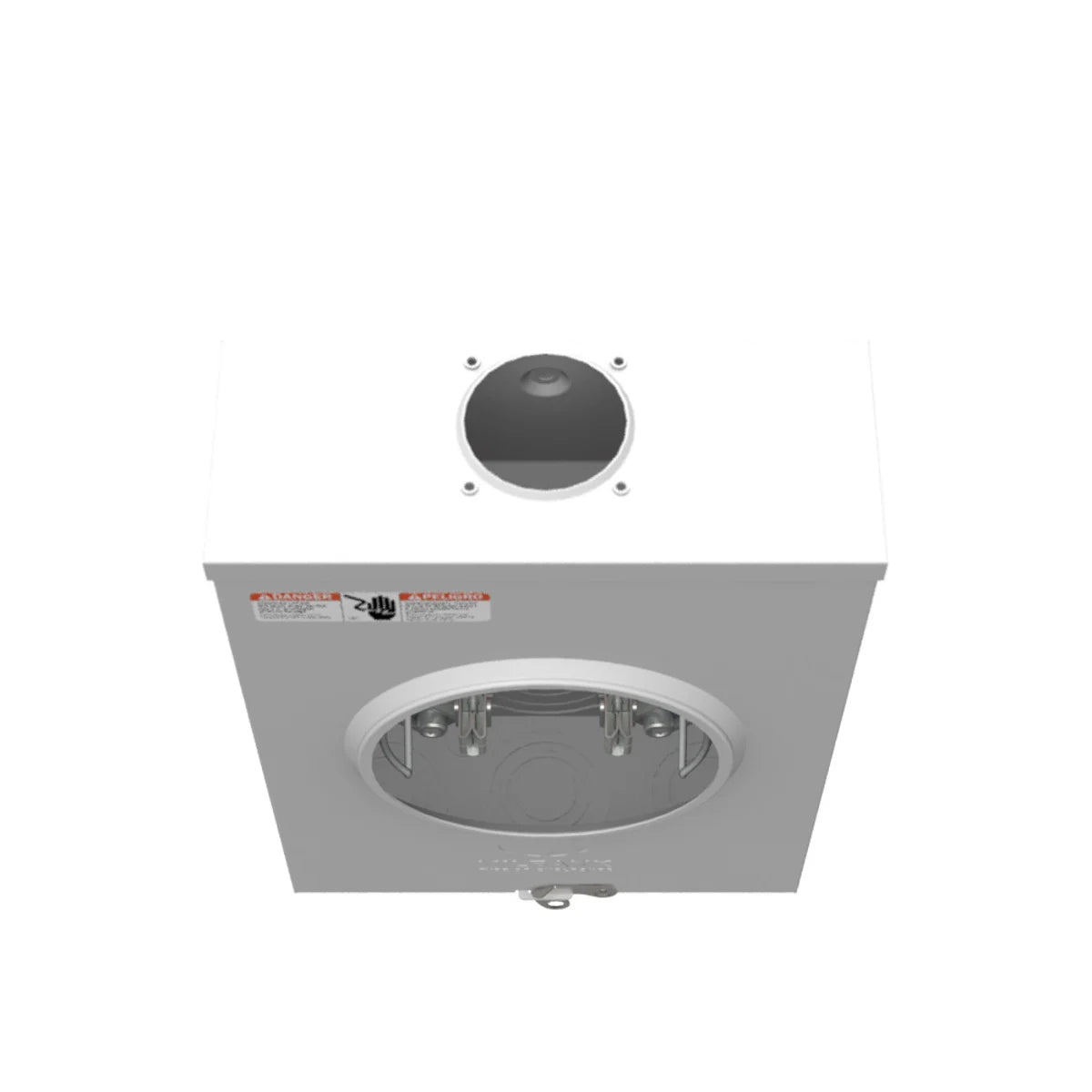

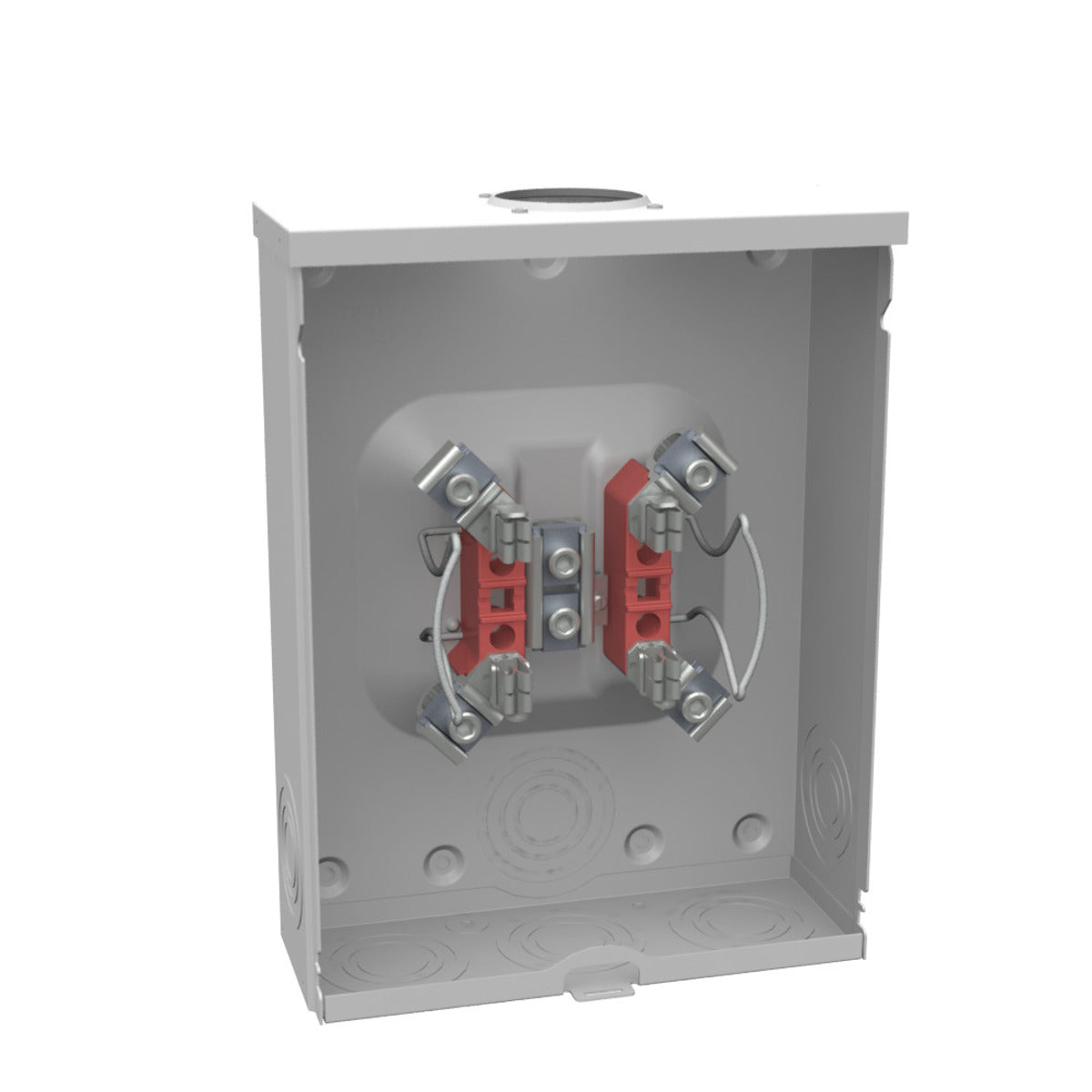

The Milbank U7040-RL-TG is a ringless meter socket that accommodates a maximum amperage rating of two hundred. This product is designed for both overhead and underground cable entry and can be surface-mounted for durability. It is an essential component for electrical installations where efficient power distribution is required.
- Four terminal connections for flexibility.
- Constructed from G90 galvanized steel with a powder coat finish.
- UL listed for safety compliance.
Product Highlights
Durable design ensures long service life along with safety features suitable for varied applications.
Product Information
Standard Information
-
Manufacturer: Milbank
-
Catalog Number: U7040-RL-TG
Technical Specifications
-
Amperage Rating: 200
-
Voltage Rating: 600 Volts Alternating Current
-
Frequency Rating: 60 Hertz
-
Insulation: Glass Polyester
-
Enclosure: G90 Galvanized Steel with Powder Coat Finish
-
Application: Meter Socket
-
Bypass Type: No Bypass
-
Cable Entry: Overhead or Underground
-
Mounting: Surface Mount
-
Item Type: Ringless Meter Socket
-
Size: 4.125L x 11W x 14.563H
