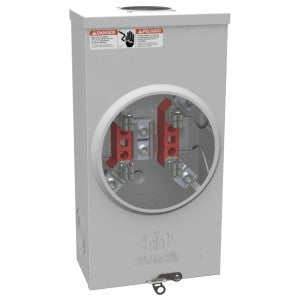

Milbank U7021-RL-TG-KK-RGE 1-Phase Ringless Meter Socket With Horn Bypass 200 Amp

Product Description

The Milbank U7021-RL-TG-KK-RGE is a ringless meter socket designed for reliable electrical applications. Rated at 200 Amps and 600 Volts AC, this meter socket features a durable G90 galvanized steel enclosure with a powder-coated finish.

• Rated for 200-Amps and 600-Volts AC
• Includes four terminal jaws for secure connections
• Accommodates wire sizes from 6-AWG to 350-KCMIL

Product Highlights

Ideal for overhead cable entry, the socket has single lay-in terminal connections for both line and load sides.

Product Information

Standard Information

• Brand: Milbank
• Manufacturer Part Number: U7021-RL-TG-KK-RGE

Technical Specifications

• Amperage Rating: 200 Amp
• Voltage Rating: 600 Volt AC
• Number of Jaws: 4
• Dimensions: 15.5 inches Height x 8 inches Width x 4.125 inches Depth
• Material: G90 Galvanized Steel
• Knockouts: (1) 2.5 Inch, (2) 2.5 Inch, (3) 2.5 Inch, (4) 2.5 Inch, (5) 1/4 Inch, (5) 1/2 Inch, (6) 1/4 Inch Concentric
• Enclosure Rating: NEMA 3R
• Phase: 1
• Feed Location: Overhead
• Standards: UL Listed
