Milbank U7021-RL-TG 4 Term Ringless Small Hub Opening Triplex Ground OH

Product Description

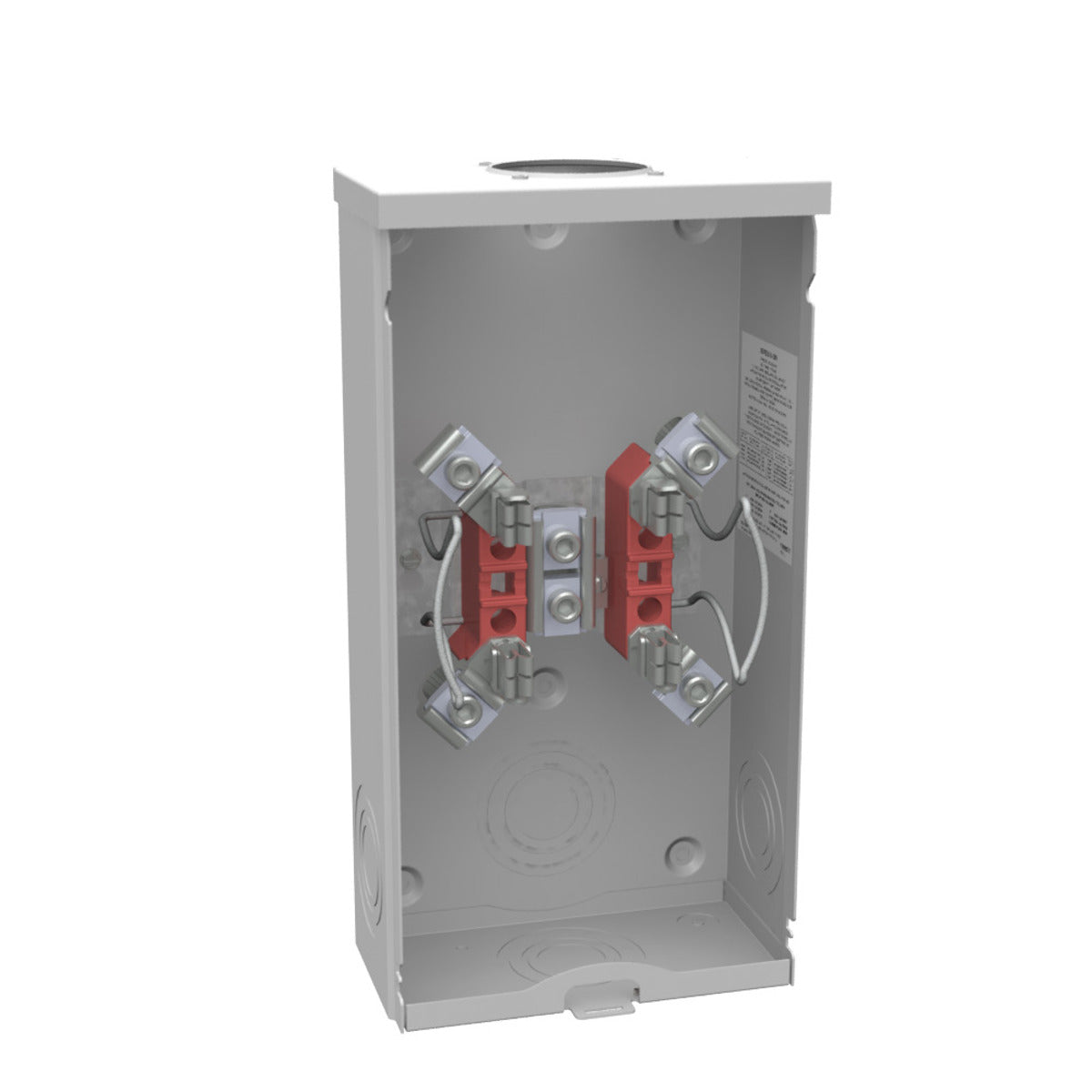

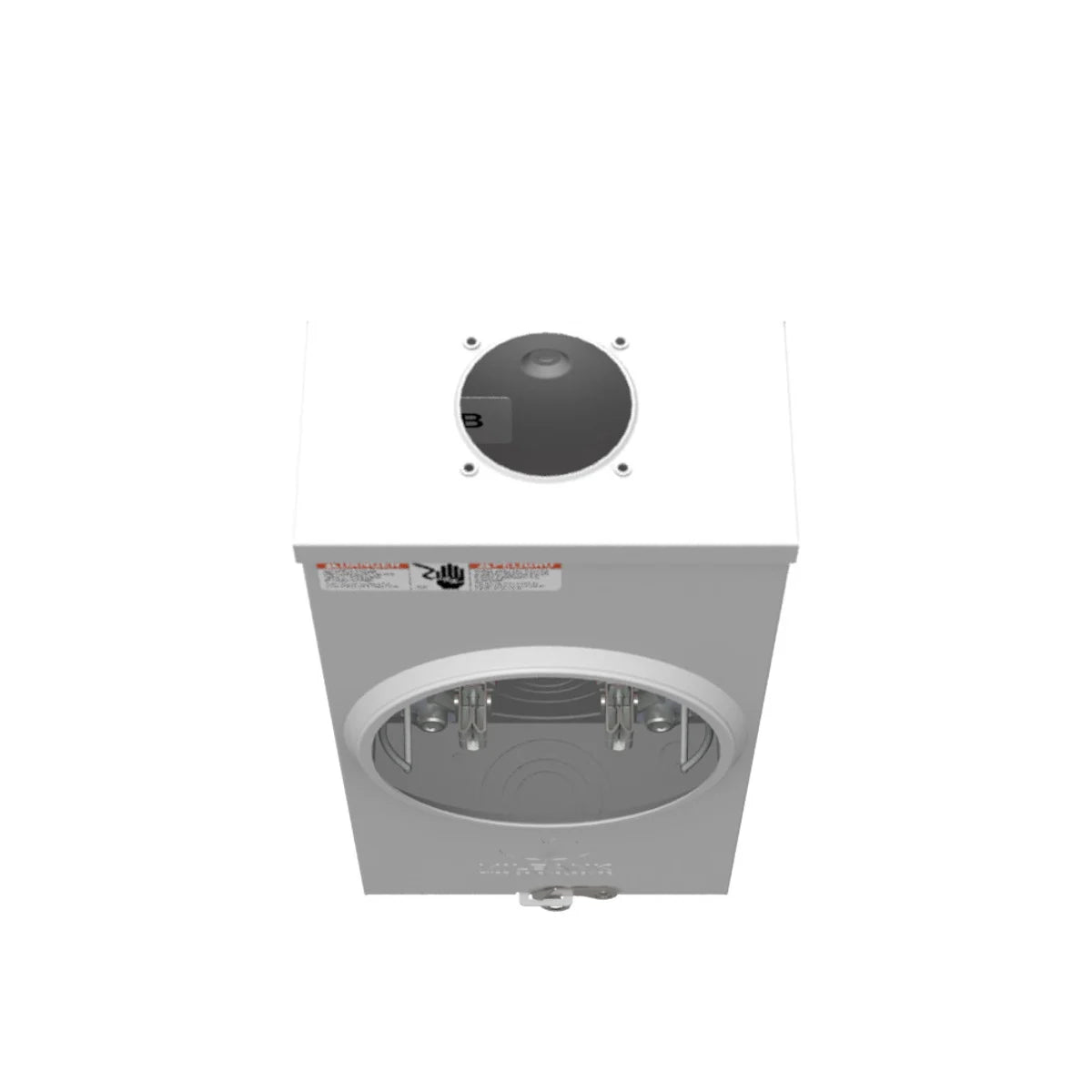

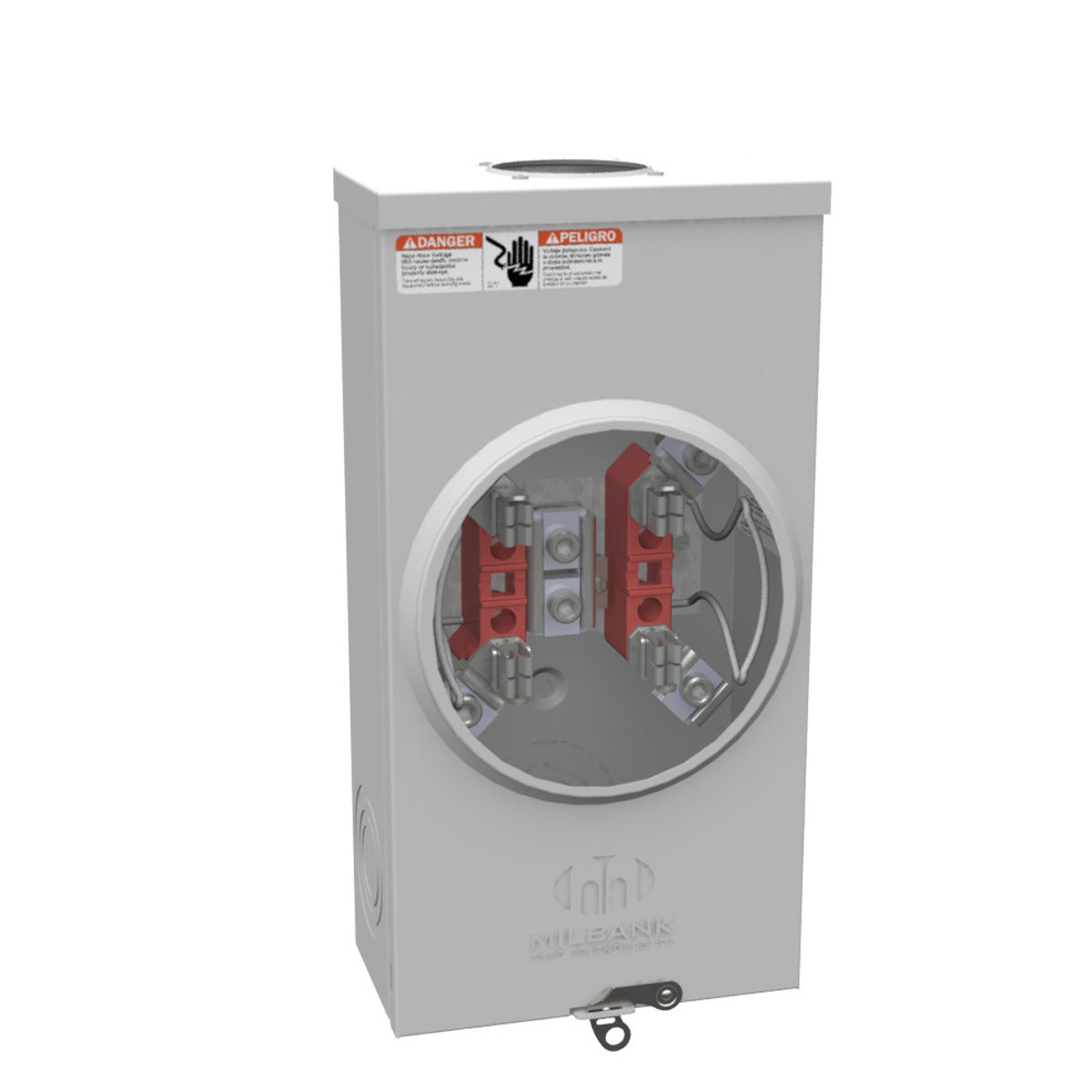

The Milbank U7021-RL-TG is a reliable ringless meter socket designed for efficient electrical metering. This product has a robust construction suitable for a variety of applications in residential and commercial settings. The U7021-RL-TG is built to accommodate overhead cable entry and offers a secure 4-terminal configuration.

• Amperage Rating: 200 Amps
• Voltage Rating: 600 Volts AC
• Product is UL Listed and complies with Type 3R standards

Product Highlights

This meter socket features a G90 galvanized steel enclosure with a powder coat finish. Its design ensures durability and protection against the elements. The socket is equipped with integrated grounding and is made in the USA.

Product Information

Standard Information

• Catalog Number: U7021-RL-TG
• Manufacturer: Milbank

Technical Specifications

• Amperage Rating: 200
• Application: Meter Socket
• Bypass Type: No Bypass
• Cable Entry: Overhead
• Enclosure: G90 Galvanized Steel with Powder Coat Finish
• Frequency Rating: 60 Hertz
• Material: G90 Galvanized Steel
• Mounting: Surface Mount
• Number of Jaws: 4 Terminal
• Phase: 1
• Standard: UL Listed; Type 3R
• Size: 4.125 inches length x 8 inches width x 15.5 inches height
• Voltage Rating: 600 Volts AC
