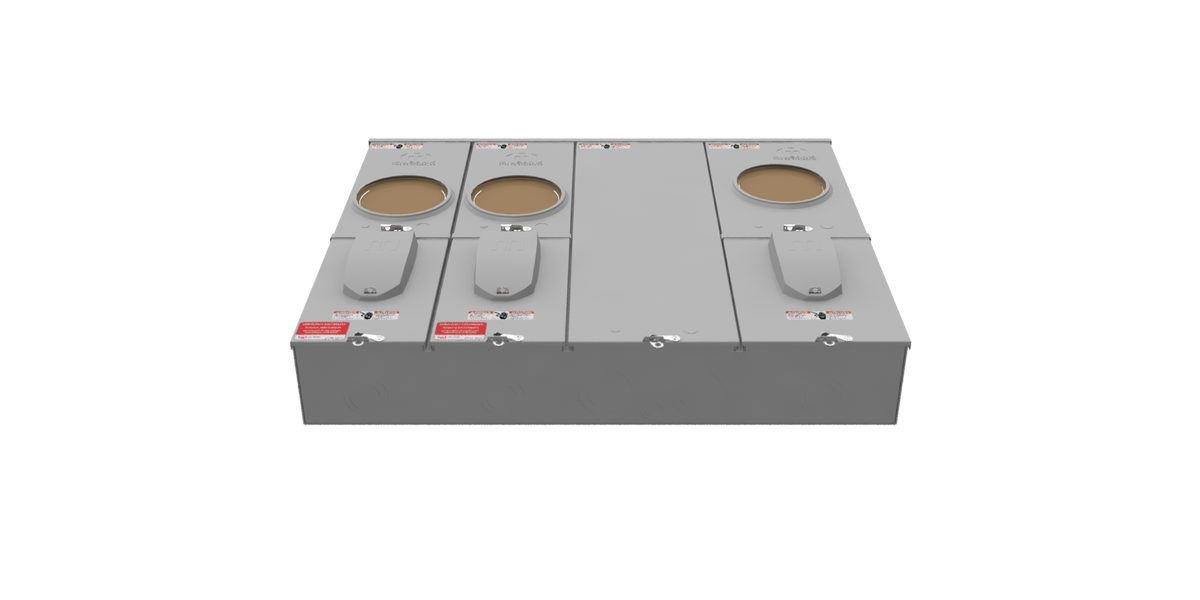

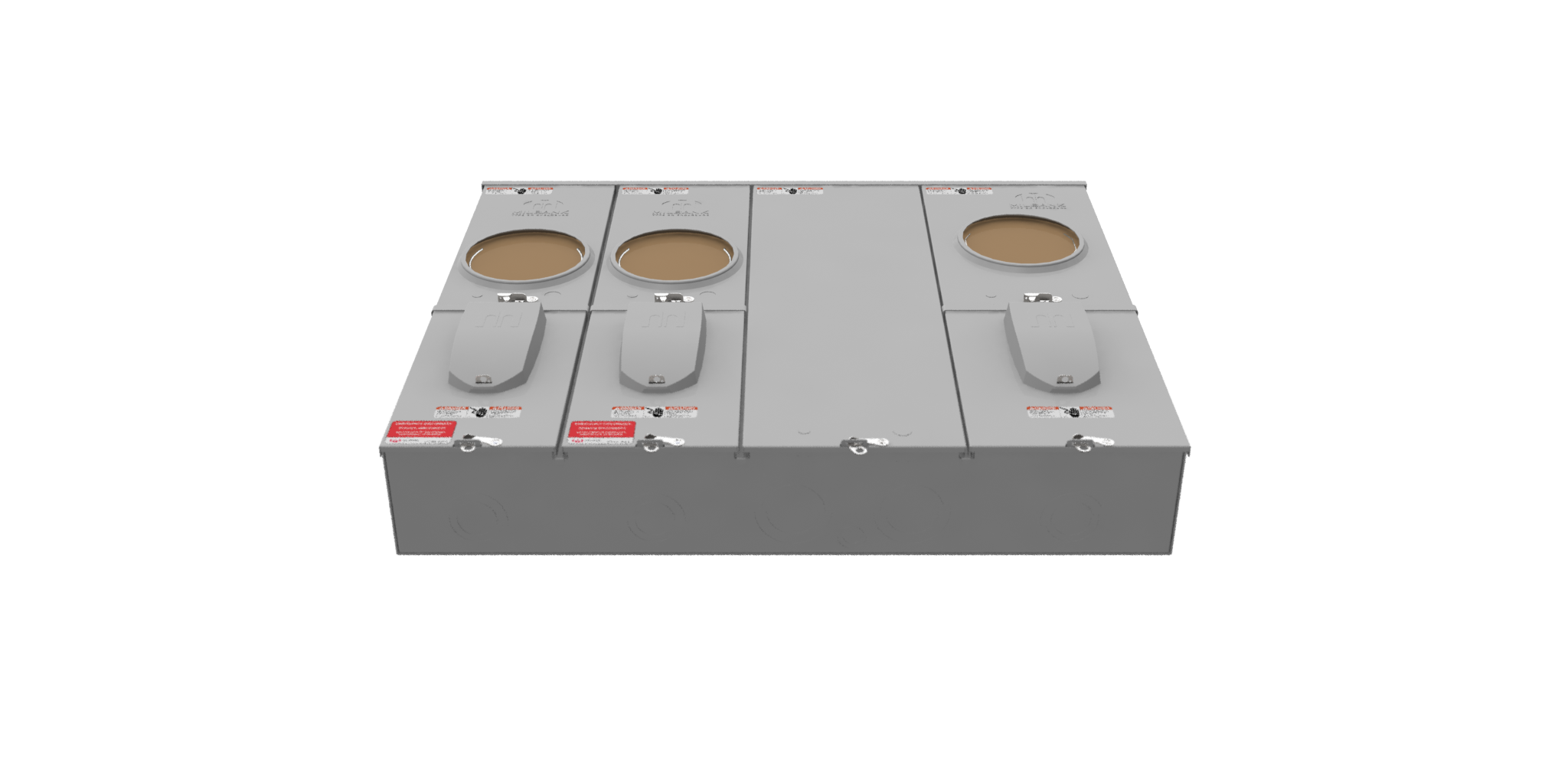

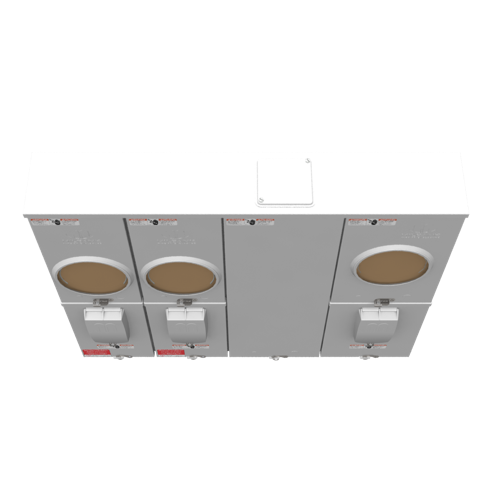

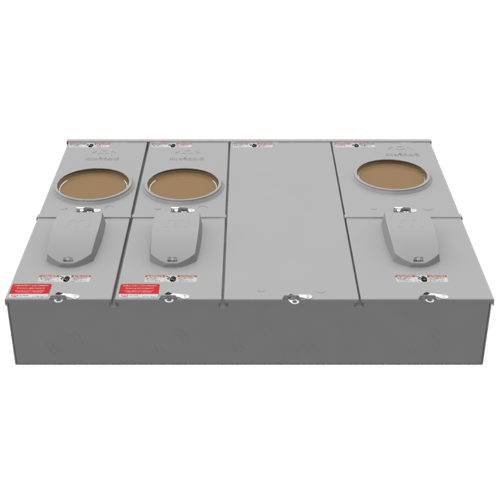

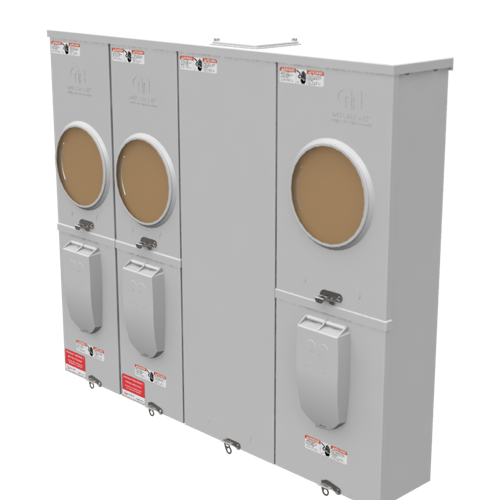

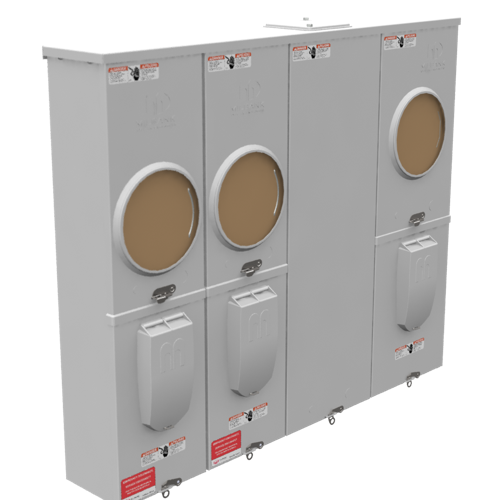

Milbank U6123-X-BL 4 Terminal Ringless 3-Position Meter Socket

Product Description

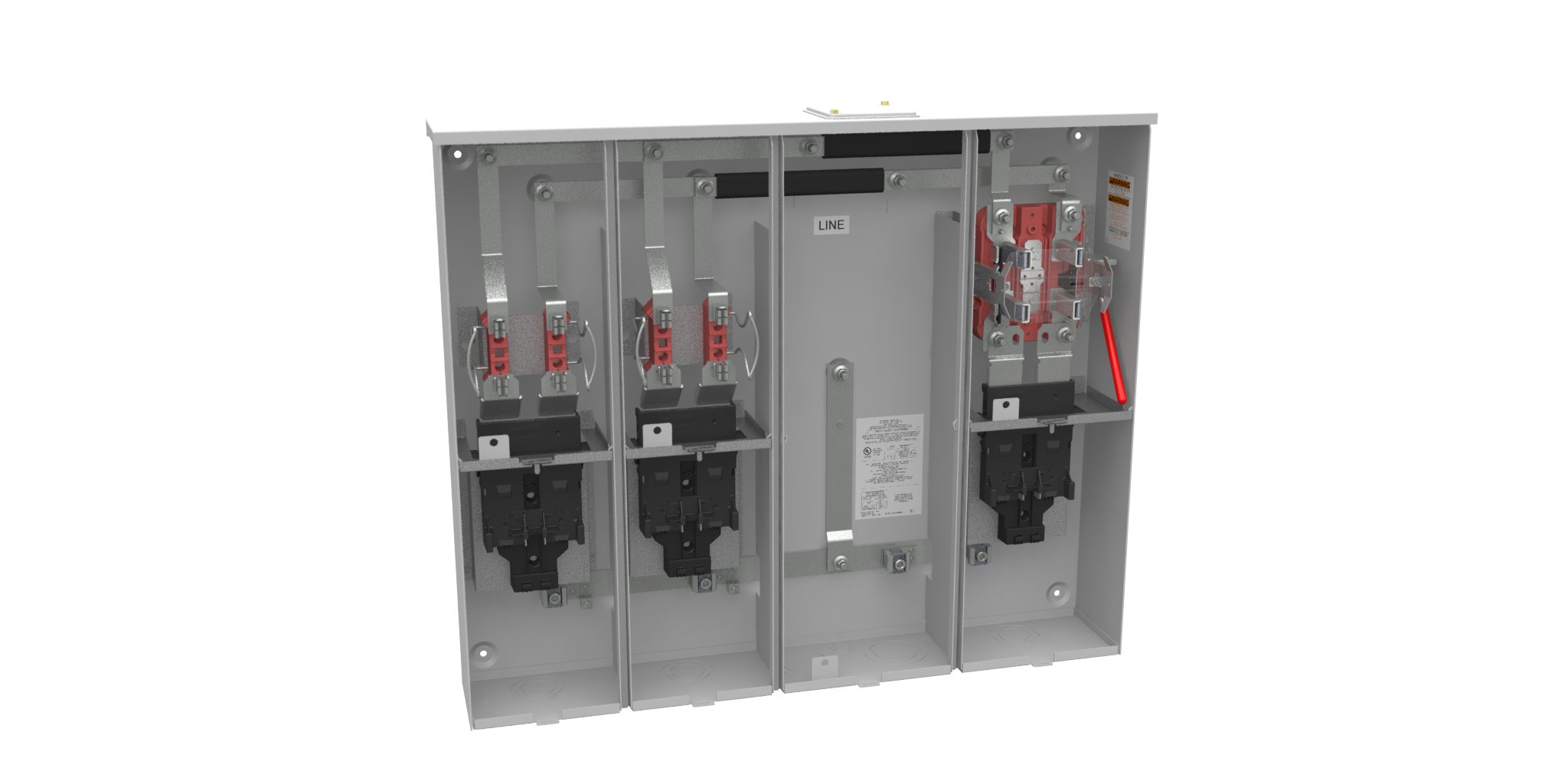

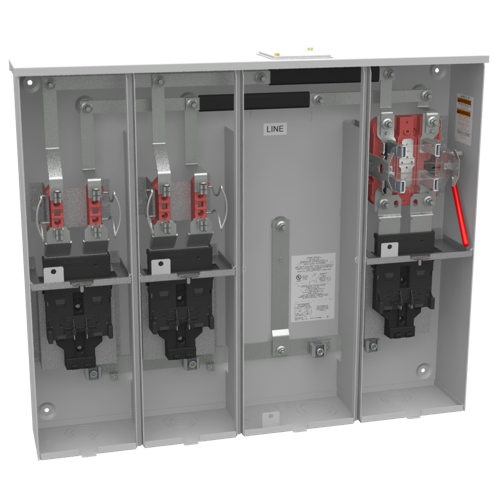

The Milbank U6123-X-BL is a 4-terminal ringless meter socket designed for multi-position use. This unit supports three meter positions and features a house panel with a lever and barrel lock provision. Crafted from G90 galvanized steel with a powder coat finish, the socket is suitable for overhead and underground cable entries, making it versatile for different installations.

• Four terminal design with lever bypass on common area meter
• Meets NEMA 3R enclosure rating
• Accommodates single mechanical terminals

Product Highlights

This meter socket is ideal for residential and commercial applications needing a reliable meter solution.

Product Information

Standard Information

• Brand: Milbank
• MPN: U6123-X-BL

Technical Specifications

• Application: Meter Socket with Main
• Amperage Rating: 125 Continuous Ampere
• Voltage Rating: Up to 240 Volts AC
• Frequency Rating: 60 Hertz
• Phase: 1 Phase
• Number of Meter Positions: 3
• Number of Jaws: 4 Terminal
• Cable Entry: Overhead or Underground
• Mounting Type: Surface Mount
• Enclosure Rating: NEMA 3R
• Material: G90 Galvanized Steel with Powder Coat Finish
• Terminal Type: Single Mechanical
• Insulation: Glass Polyester
• Hub Style: Large Closing Plate
• Bypass Provision: Lever Bypass on Common Area Meter
• Barrel Lock Provision: 9/16 Inch Knockout
• Equipment Ground: Ground Lug
• Line Side Wire Range: 6 AWG - 350 kcmil
• Load Side Wire Range: 1 AWG - 300 kcmil
• Number of Main Breakers: 3
• Standard: UL Listed
• Type: Ringless Meter Socket
• Dimensions: 5.969L x 36.5W x 30.5H IN
