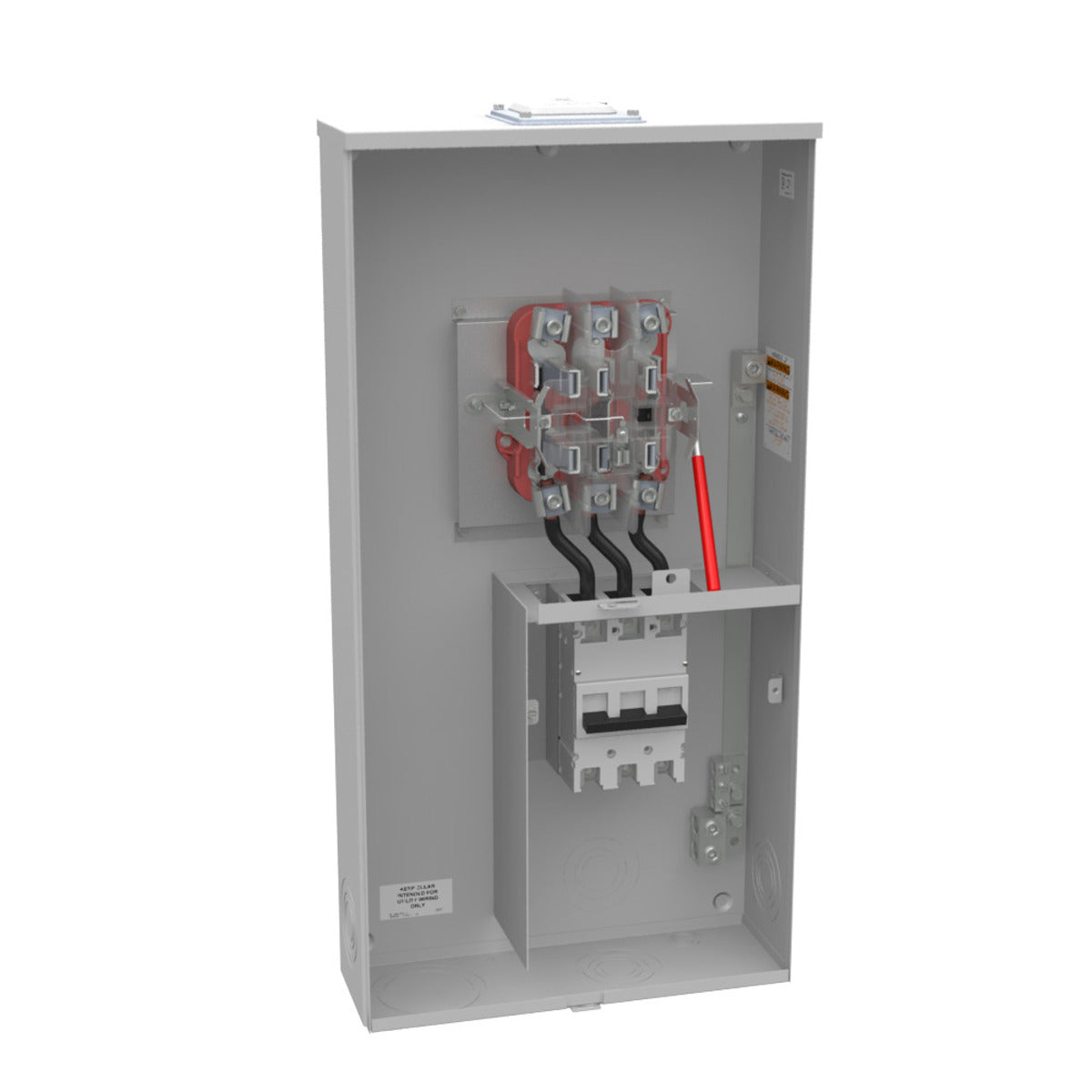

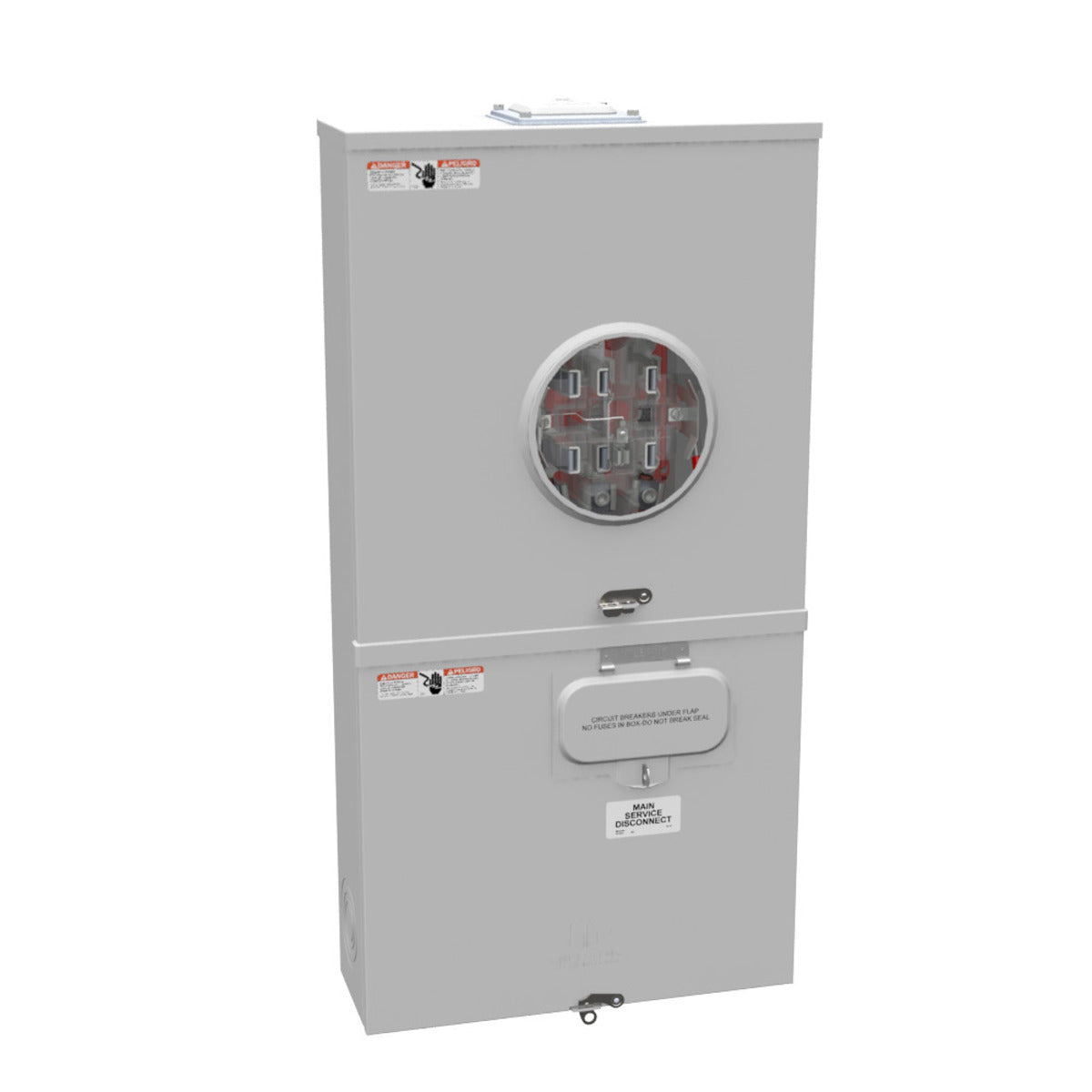

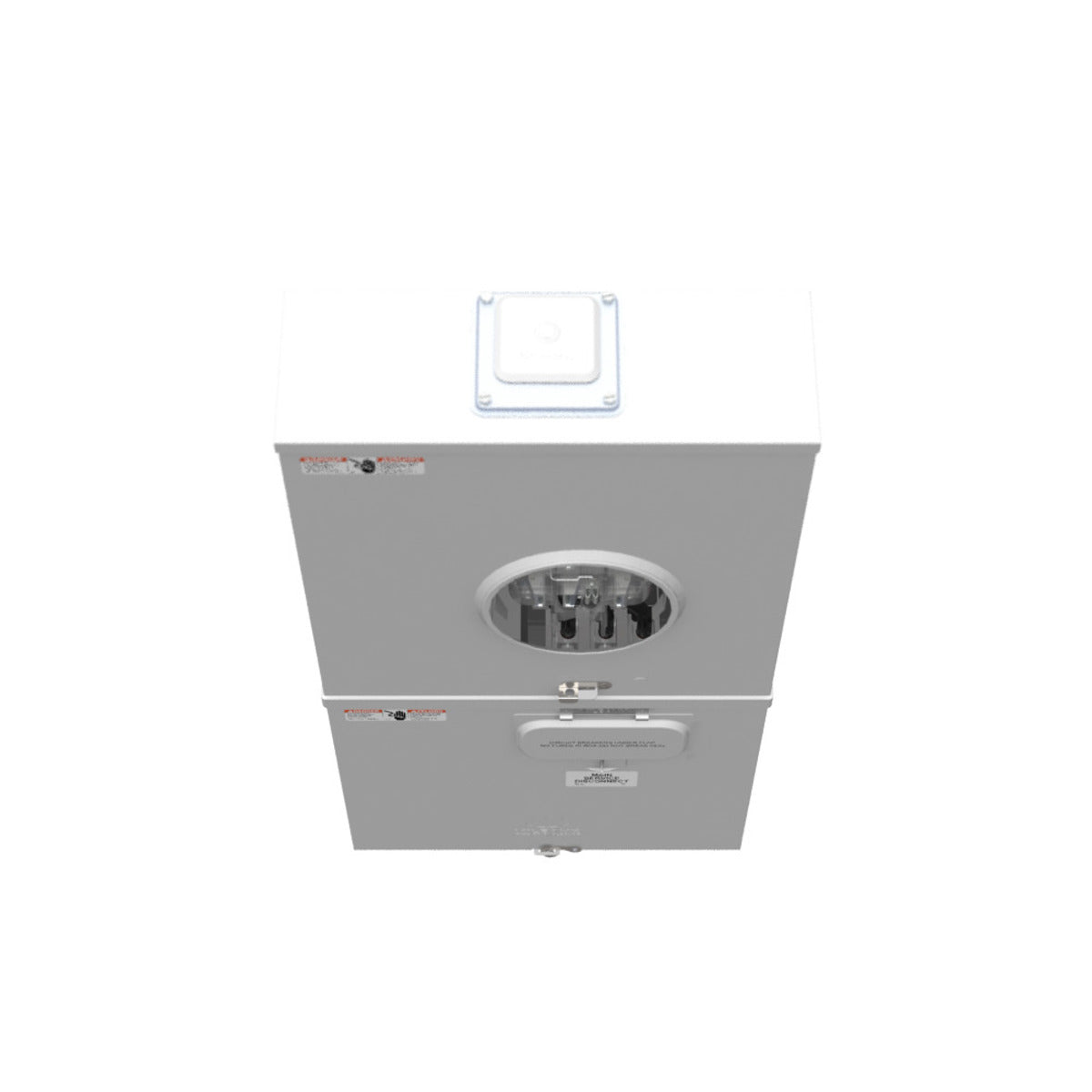

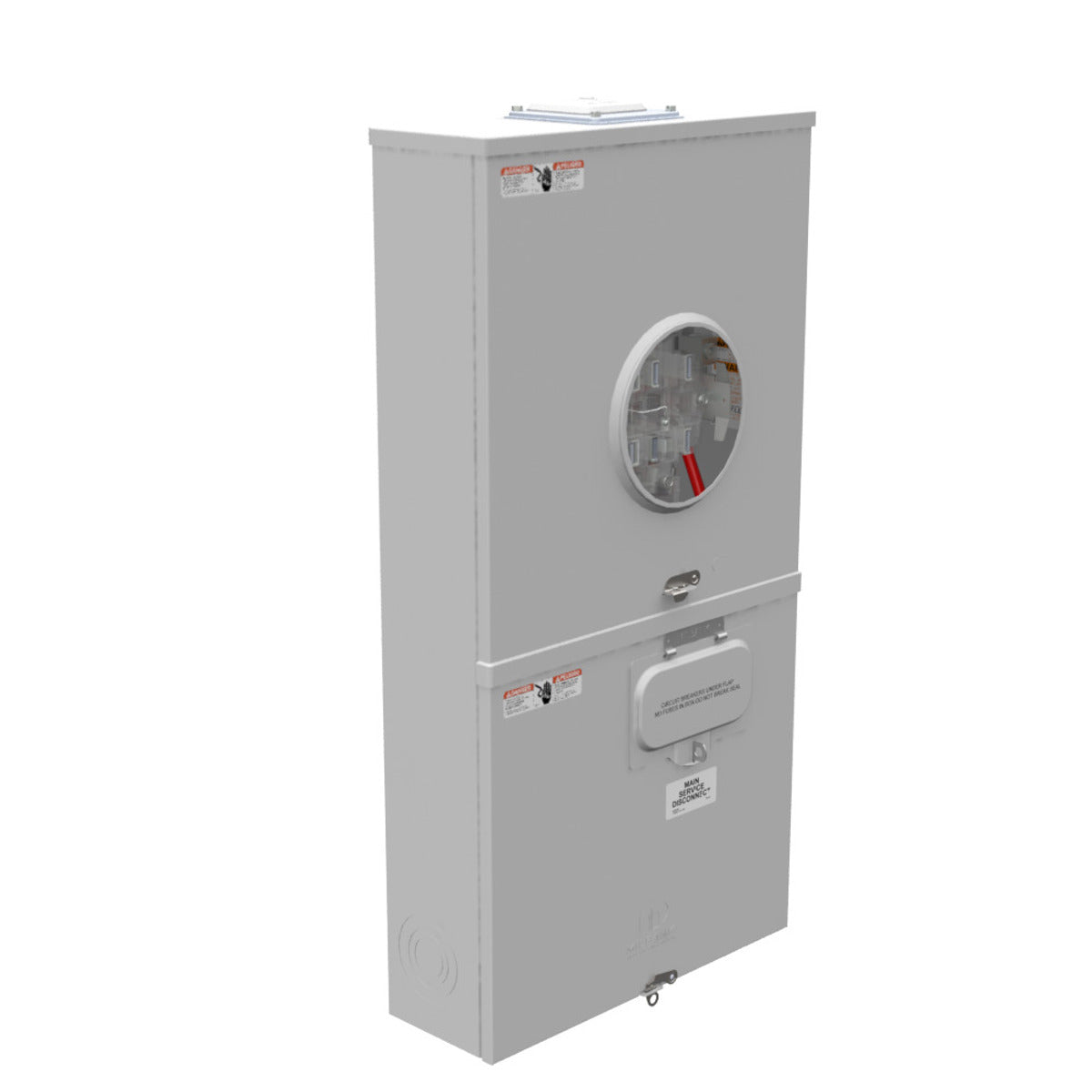

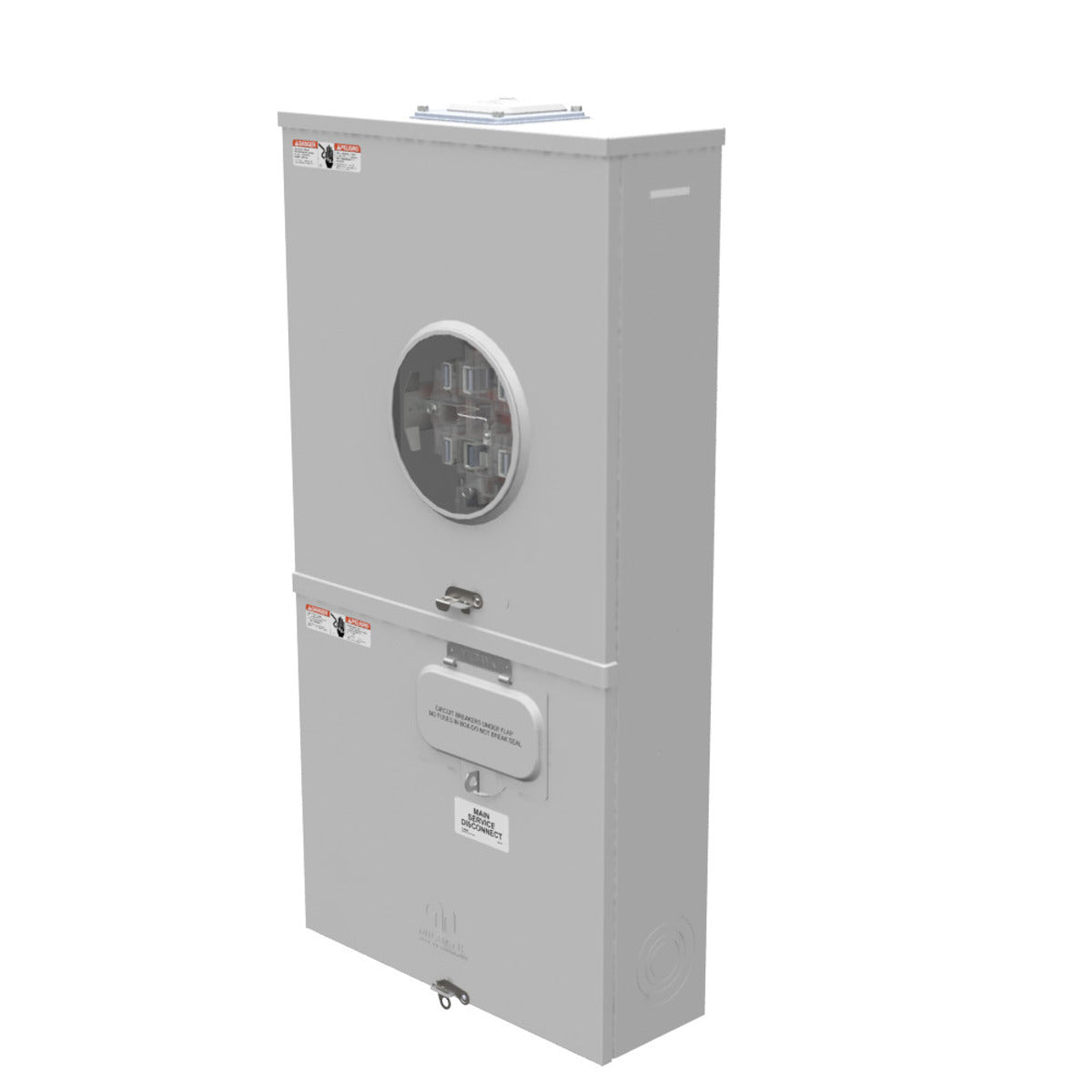

Milbank U5750-RXL-200-BL Meter Socket 200 Amp Ringless Large Hub Opening

Product Description

The Milbank U5750-RXL-200-BL Meter Socket is designed for service connection with a main breaker rated at 200 amps. It features a ringless design and a large hub opening.

• 200 Amp rating
• 7 terminal configuration
• Designed for overhead and underground cable entry

Product Highlights

This meter socket is suitable for both residential and commercial applications. It complies with UL standards and is rated for Type 3R usage, indicating it is suitable for outdoor service.

Product Information

Standard Information

• Catalog Number: U5750-RXL-200-BL
• Manufacturer: Milbank

Technical Specifications

• Amperage Rating: 200
• Application: Meter Socket With Main
• Bypass Type: Lever
• Cable Entry: Overhead or Underground
• Enclosure: G90 Galvanized Steel with Powder Coat Finish
• Frequency Rating: 60 Hertz
• Insulation: Glass Polyester
• Material: G90 Galvanized Steel With Powder Coat Finish
• Mounting: Surface Mount
• Number of Jaws: 7 Terminal
• Phase: 3
• Standard: UL Listed; Type 3R
• Size: 5.75L x 17.375W x 34H
• Voltage Rating: Up to 240 Volts Alternating Current
