MILBANK MILBANK U5168-XTL-200-KK Ringless Meter Socket with Main and Load Center 200 Amp 240 VAC

MILBANK U5168-XTL-200-KK Ringless Meter Socket with Main and Load Center 200 Amp 240 VAC

Name: MILBANK U5168-XTL-200-KK Ringless Meter Socket with Main and Load Center 200 Amp 240 VAC
Brand: MILBANK
SKU: U5168-XTL-200-KK
Price: 469.37 USD
Availability: InStock

Brand: MILBANK

SKU: U5168-XTL-200-KK

Availability: In Stock

Ships same day if ordered by 12 pm

Quantity:

$469.37; $469.37
Unit price: per

Manuals:

Manual

HAVE A QUESTION?

Our team is ready to help!

215-326-9845

Chat

Secure Payments
Easy Returns
Expert Advice
Fast Shipping

Description

Product Description

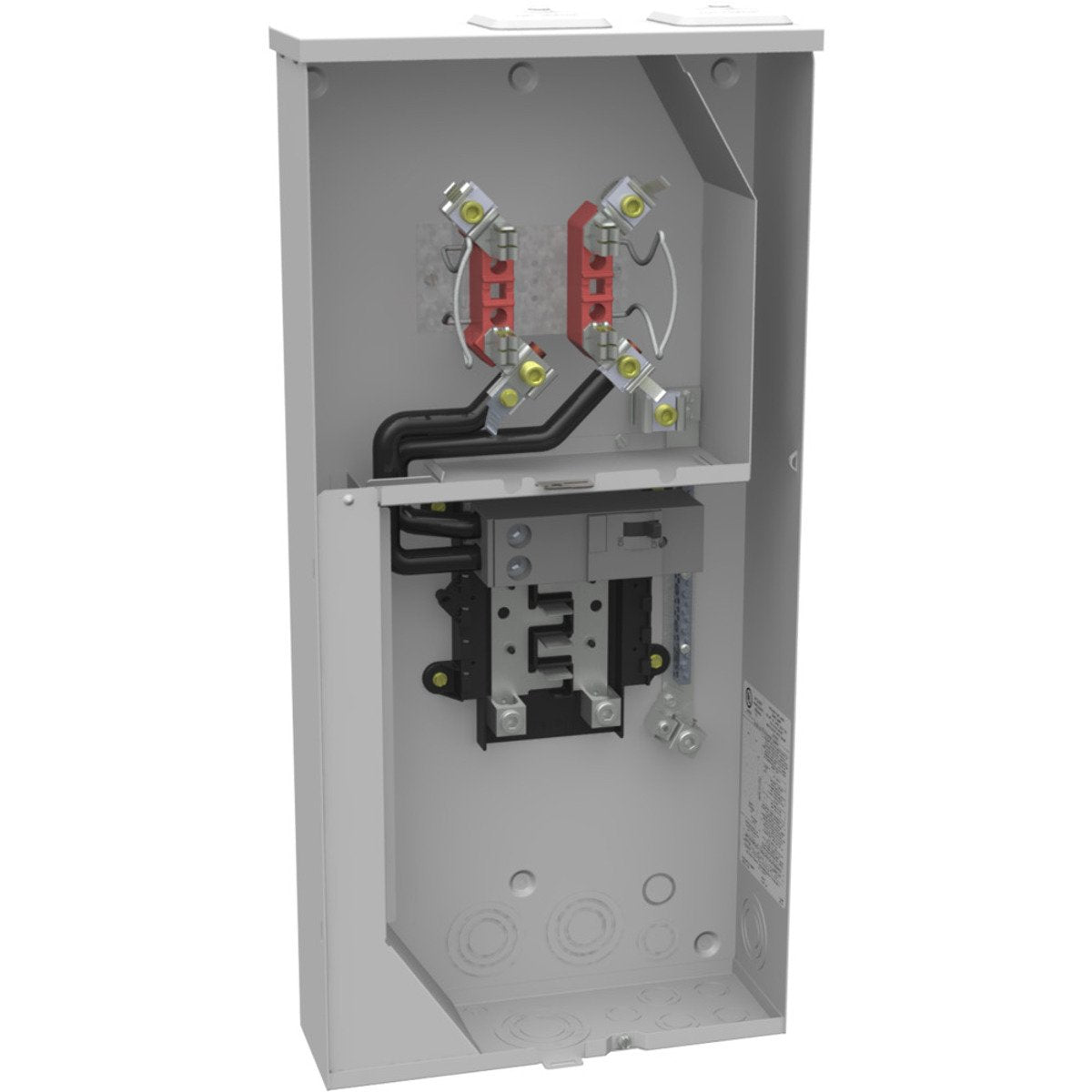

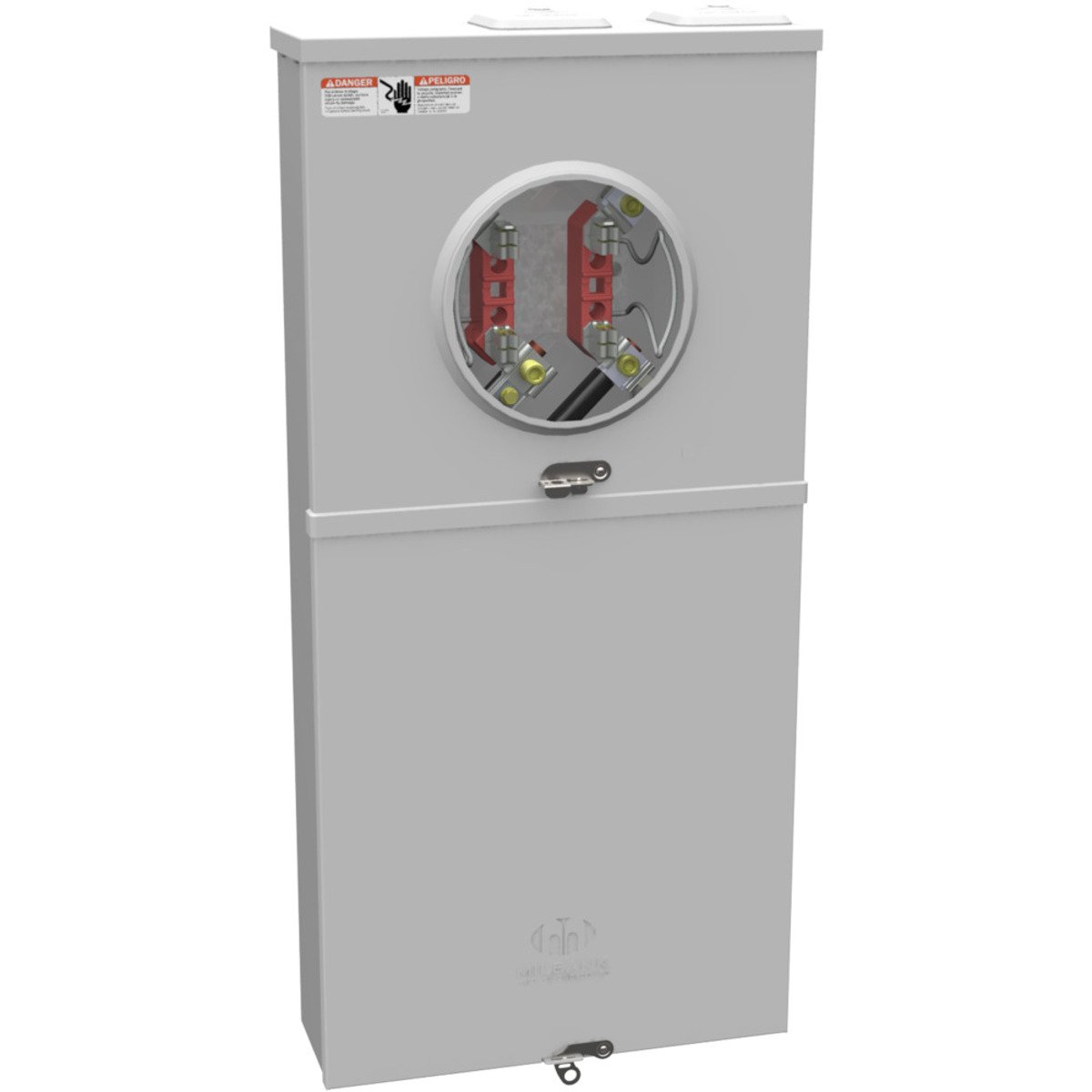

The MILBANK U5168-XTL-200-KK is a ringless meter socket designed for use with a main and load center. It operates at 200 amps and is rated for 240 VAC. This product includes features suitable for both overhead and underground cable entry.

Key Features

Rated for 200 Amperes
NEMA 3R enclosure for outdoor use
Compatible with 6 AWG to 350 kcmil wire size

Compatibility

Supports a main breaker and includes multiple branch circuits for an organized electrical system.

Technical Specifications

Voltage Rating

240 VAC

Amperage Rating

200 A

Frequency Rating

60 Hz

Dimensions

30 inches H x 14.125 inches W x 4.5 inches D

Material

G90 Galvanized Steel with Powder Coat Finish

Insulation

Glass Polyester

Number of Jaws

4 Terminal

Bypass Type

Horn

Country of Origin

United States

Brand

MILBANK

Manufacturer Part Number

U5168-XTL-200-KK
