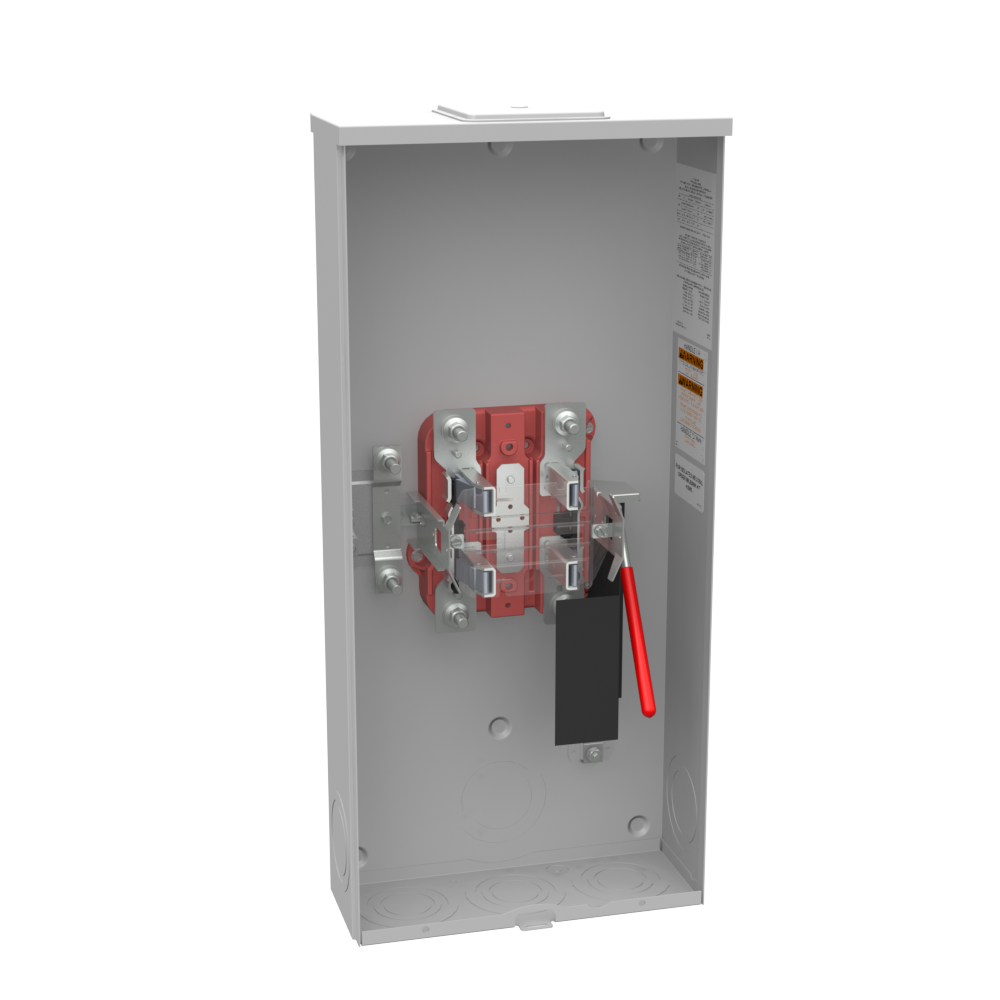

Milbank U4363-X-QG-CECHA Single Position Meter Socket 320 Amp 1 Phase Ringless Lever 4 Term OH UG 600V Quadplex

Product Description

The Milbank U4363-X-QG-CECHA is a single position meter socket designed for 320 amp applications. This meter socket supports both overhead and underground cable entries, making it suitable for various installations. It features a ringless design and lever bypass, enhancing user accessibility.

• Amperage Rating: 320 Amps
• Voltage Rating: 600 Volts Alternating Current
• Material: G90 Galvanized Steel with Powder Coat Finish

Product Highlights

The Milbank meter socket is built for reliability and ease of use in residential and commercial settings.

Product Information

Standard Information

• Brand: Milbank
• Country of Origin: United States

Technical Specifications

• Catalog Number: U4363-X-QG-CECHA
• Amperage Rating: 320
• Bypass Type: Lever
• Application: Meter Socket
• Cable Entry: Overhead or Underground
• Enclosure: G90 Galvanized Steel with Powder Coat Finish
• Mounting: Surface Mount
• Number of Jaws: 4 Terminal
• Phase: 1
• Standard: UL Listed; Type 3R
• UPC: 784572303416
• GTIN: 00784572303416
• Length: 4.844 inches
• Width: 13 inches
• Height: 28.25 inches
• Voltage Rating: 600 Volts Alternating Current
• Frequency Rating: 60 Hertz
• Insulation: Glass Polyester
• Material: G90 Galvanized Steel With Powder Coat Finish
