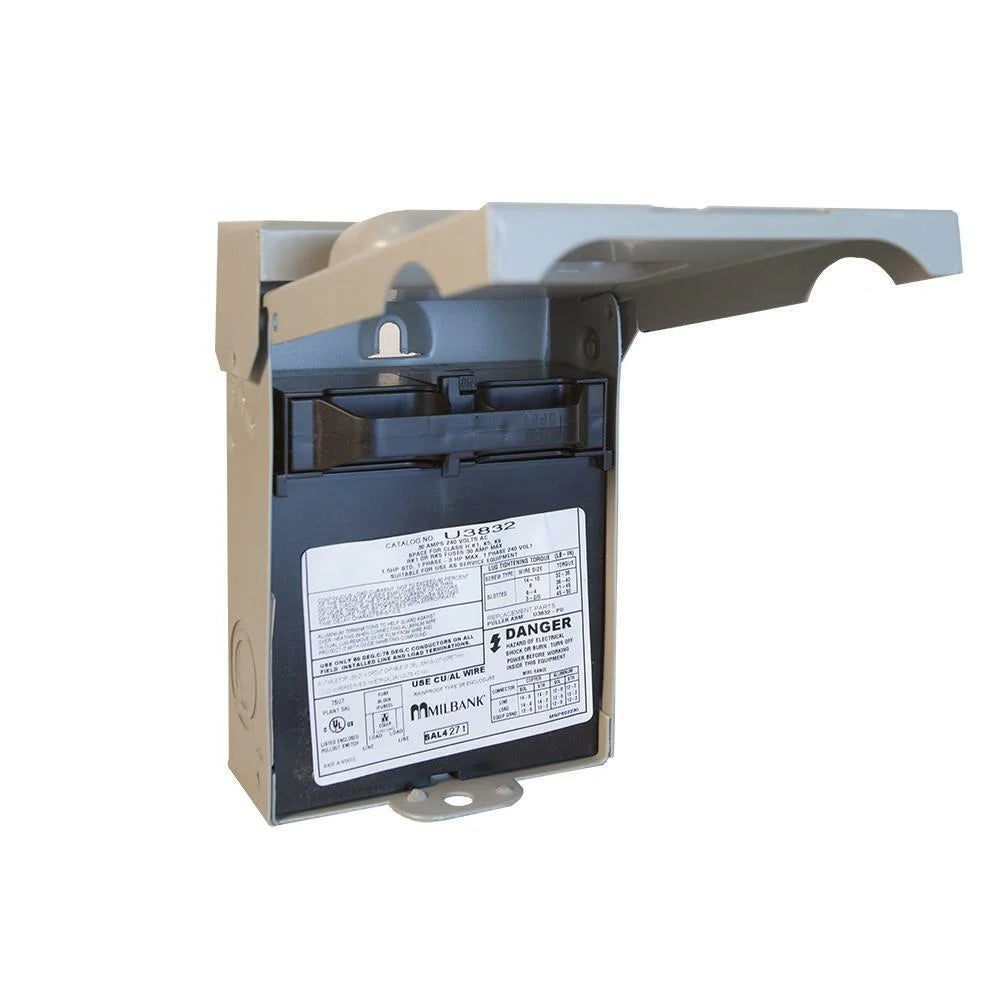

Milbank U3832 30 AMP FUSED AC DISC PULL-OUT

Product Description

The Milbank U3832 is a 30 amp fused air conditioner disconnect designed for safe and efficient operation. This model serves as a metering accessory and supports a voltage rating up to 240 volts AC.

• Designed for surface mount installation.
• UL listed and meets Type 3R standards.
• Built with a robust painted steel enclosure.

Product Highlights

This disconnect switch allows for quick disconnection of power in HVAC applications, facilitating maintenance and ensuring safety.

Product Information

Standard Information

• Catalog Number: U3832
• Brand: Milbank

Technical Specifications

• Amperage Rating: 30A
• Voltage Rating: Up to 240 Volts AC
• Enclosure Type: Painted Steel
• Contact Configuration: Pull Out
• Interrupt Rating: 10,000 Ampere Interrupting Capacity
• Mounting: Surface Mount
• Application: Metering Accessory
• Country of Origin: United States
• Made in USA: Yes
• Number of Poles: 2
• Trip Type: Thermal Overload and Short Circuit Current
• Special Features: 3 Horse Power
• UPC: 784572586925
