Milbank U3566-X-HSP Single Position Meter Socket 320 Amp 3 Phase Ringless Lever 7 Term OH UG 600V

Product Description

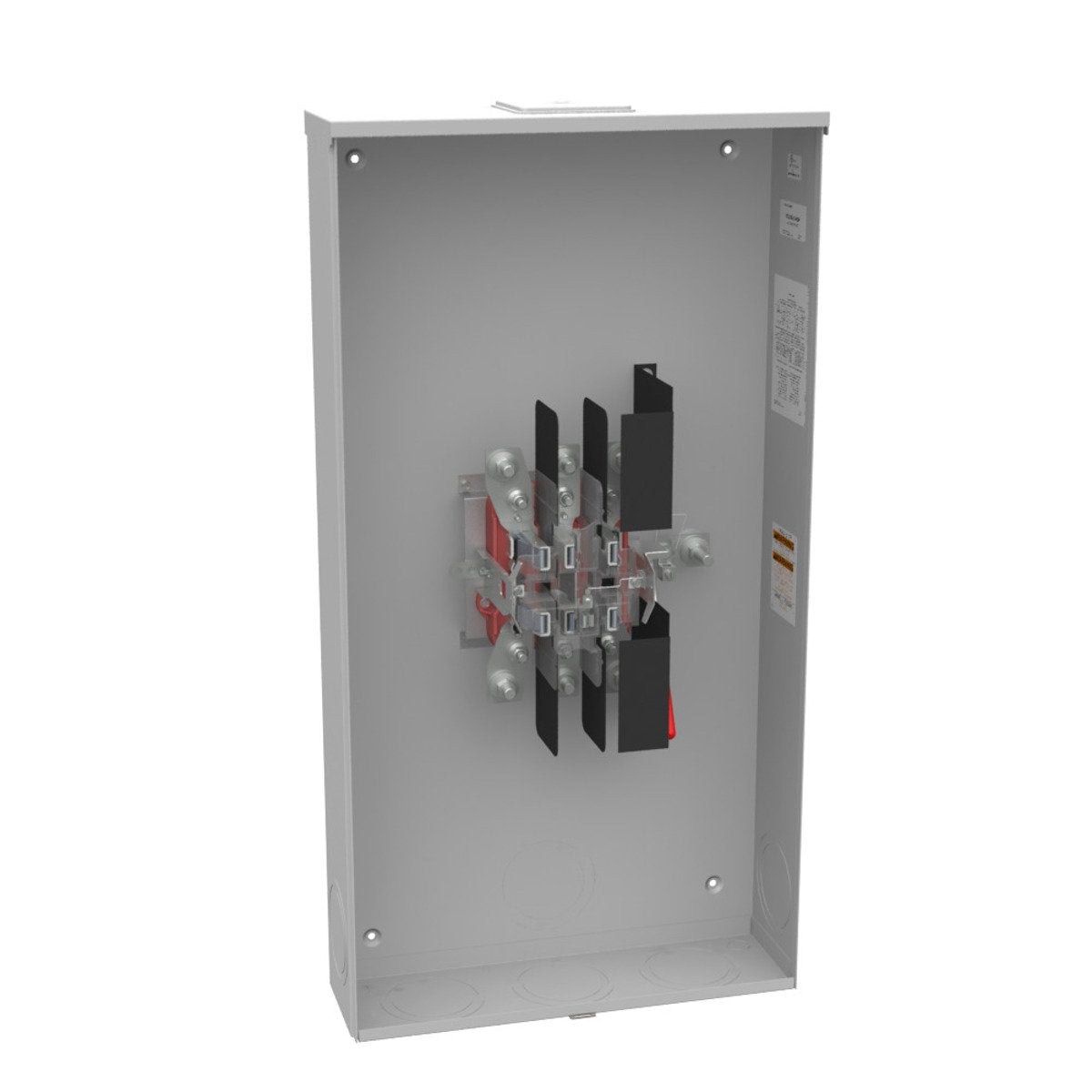

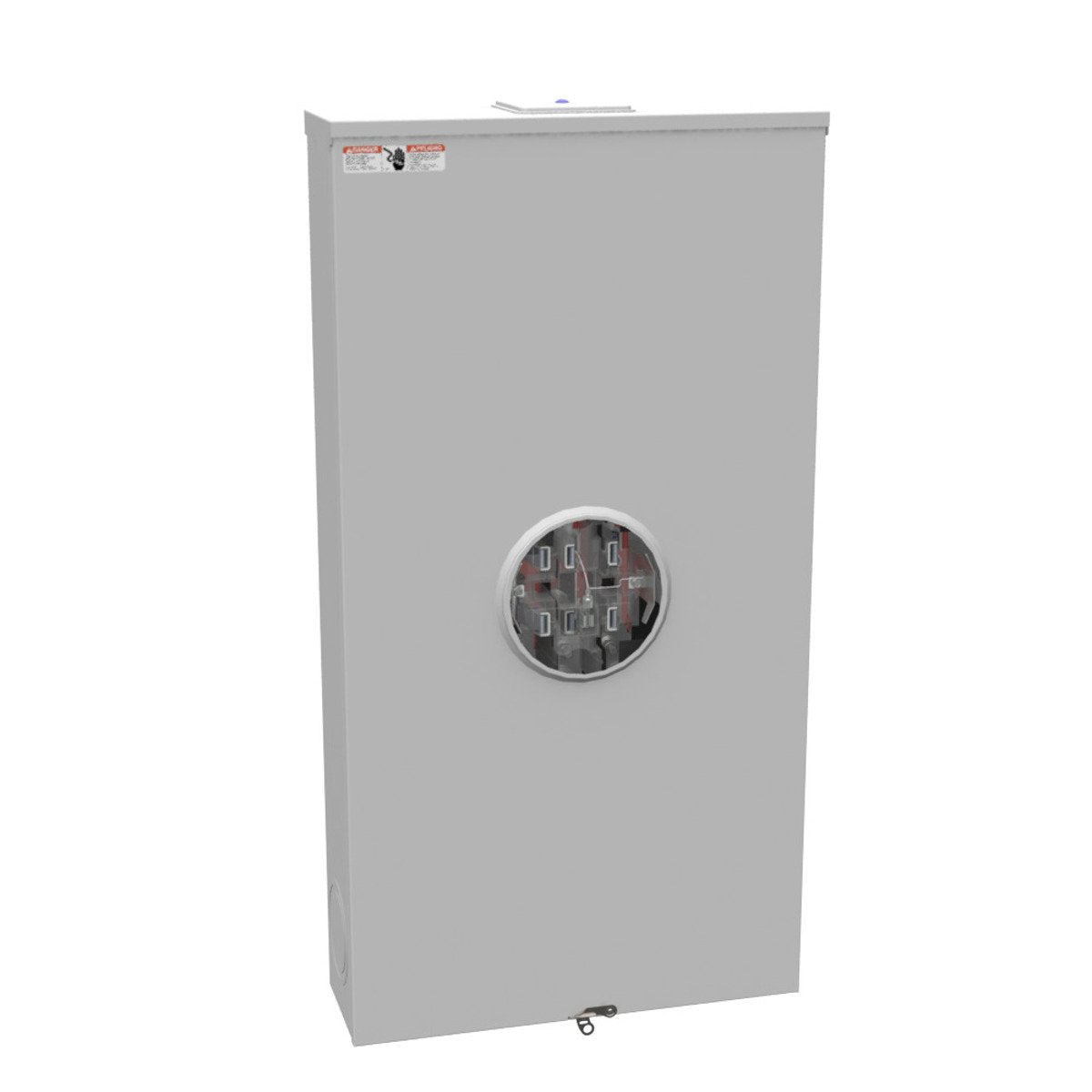

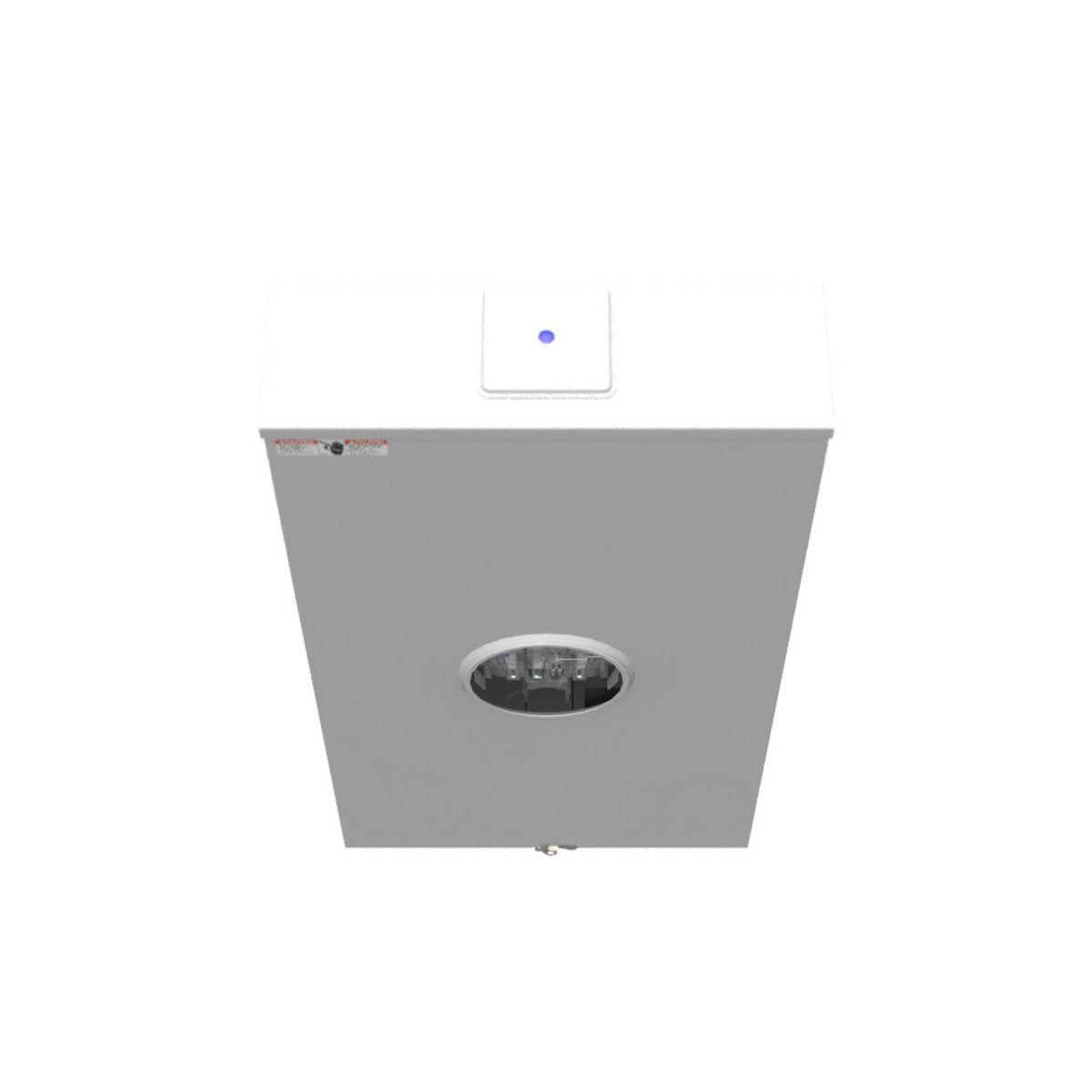

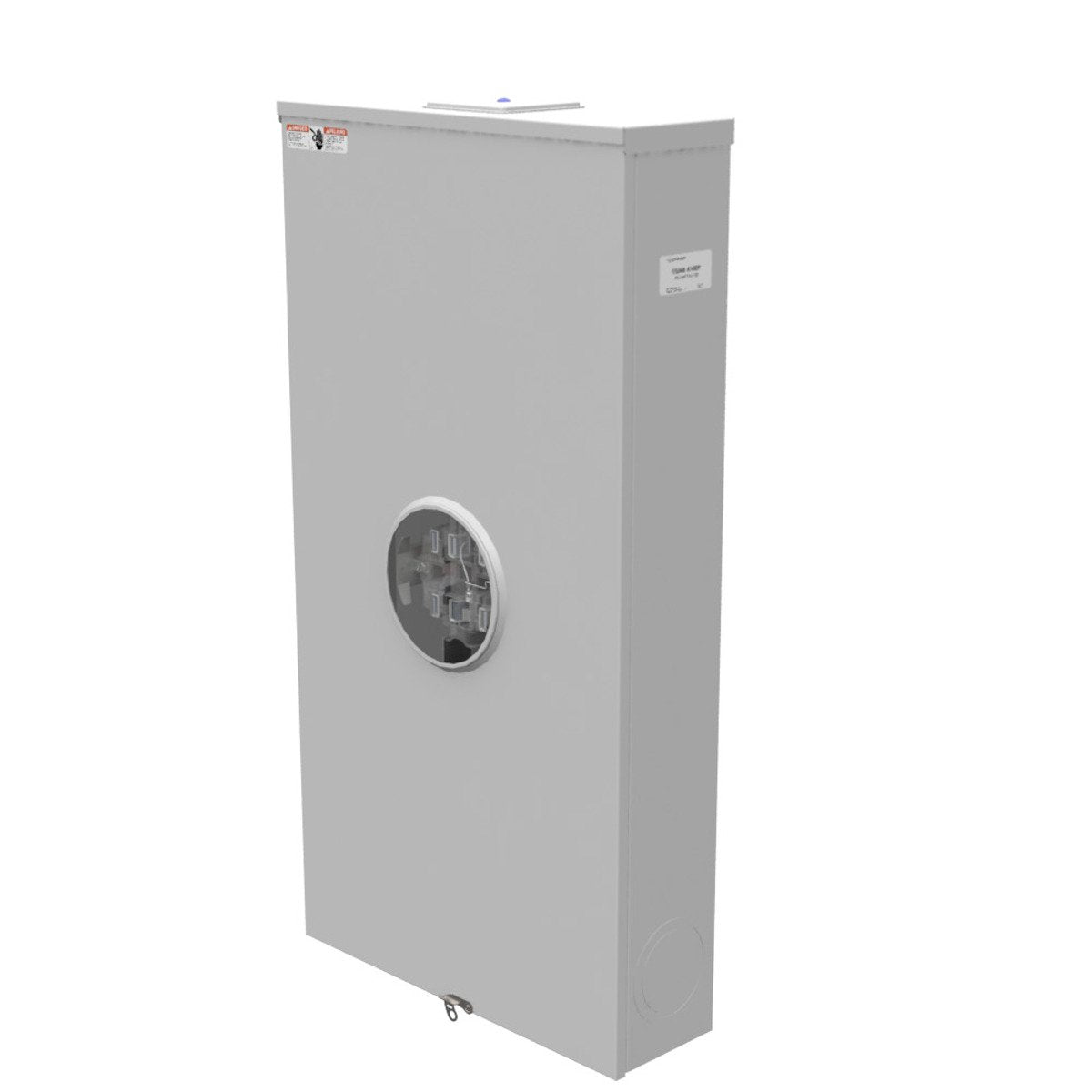

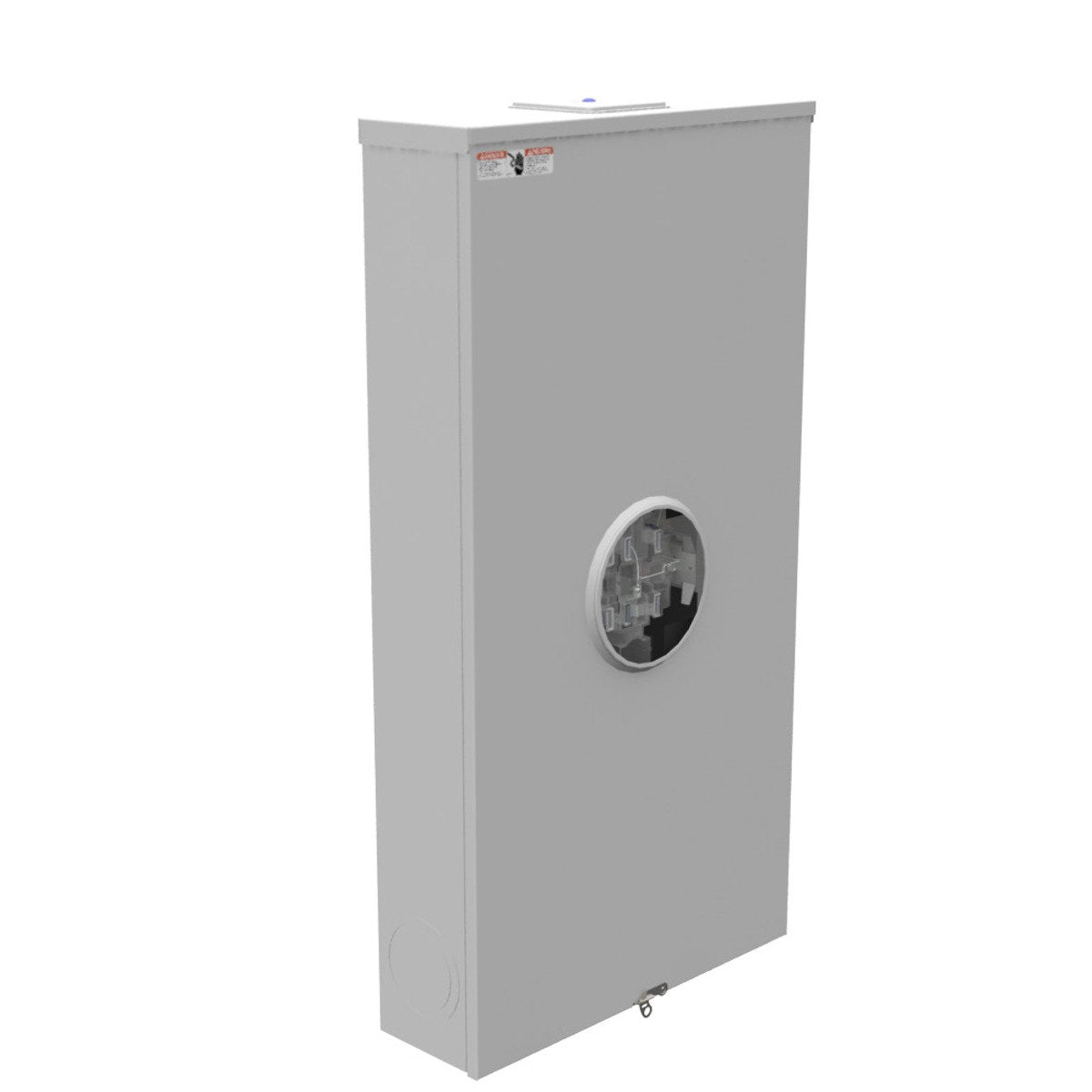

The Milbank U3566-X-HSP is a single position meter socket designed for both overhead and underground applications. This meter socket has a 320 amp rating and supports three-phase systems. The product features a lever bypass for easy operation and is made from G90 galvanized steel for durability.

• Supports overhead and underground cable entry
• Features a lever bypass for easy access
• UL Listed; Type 3R for outdoor use

Product Highlights

The Milbank U3566-X-HSP is suitable for various metering applications, ensuring efficient energy management.

Product Information

Standard Information

• Catalog Number: U3566-X-HSP
• Manufacturer: Milbank

Technical Specifications

• Country of Origin: United States
• Amperage Rating: 320
• Application: Meter Socket
• Bypass Type: Lever
• Cable Entry: Overhead or Underground
• Material: G90 Galvanized Steel with Powder Coat Finish
• Insulation: Glass Polyester
• Voltage Rating: 600 Volts Alternating Current
• Frequency Rating: 60 Hertz
• Height: 38.75 inches
• Width: 20.25 inches
• Length: 6 inches
• Terminals: 1/2 Inch Stud Line Side
• Number of Jaws: 7 Terminal
• Standard: UL listed; Type 3R
