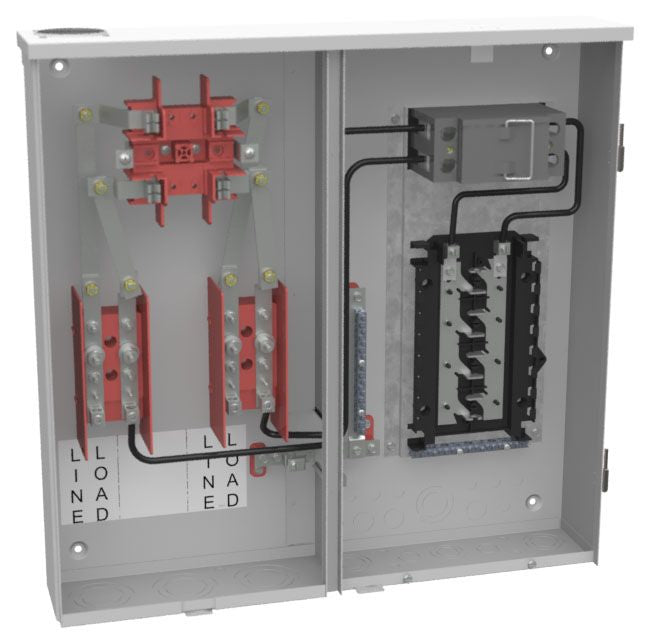

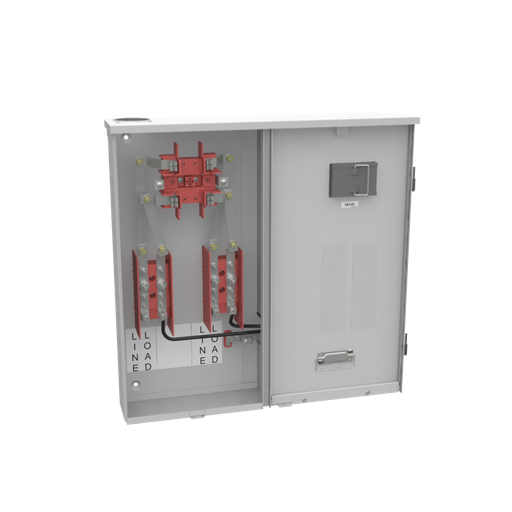

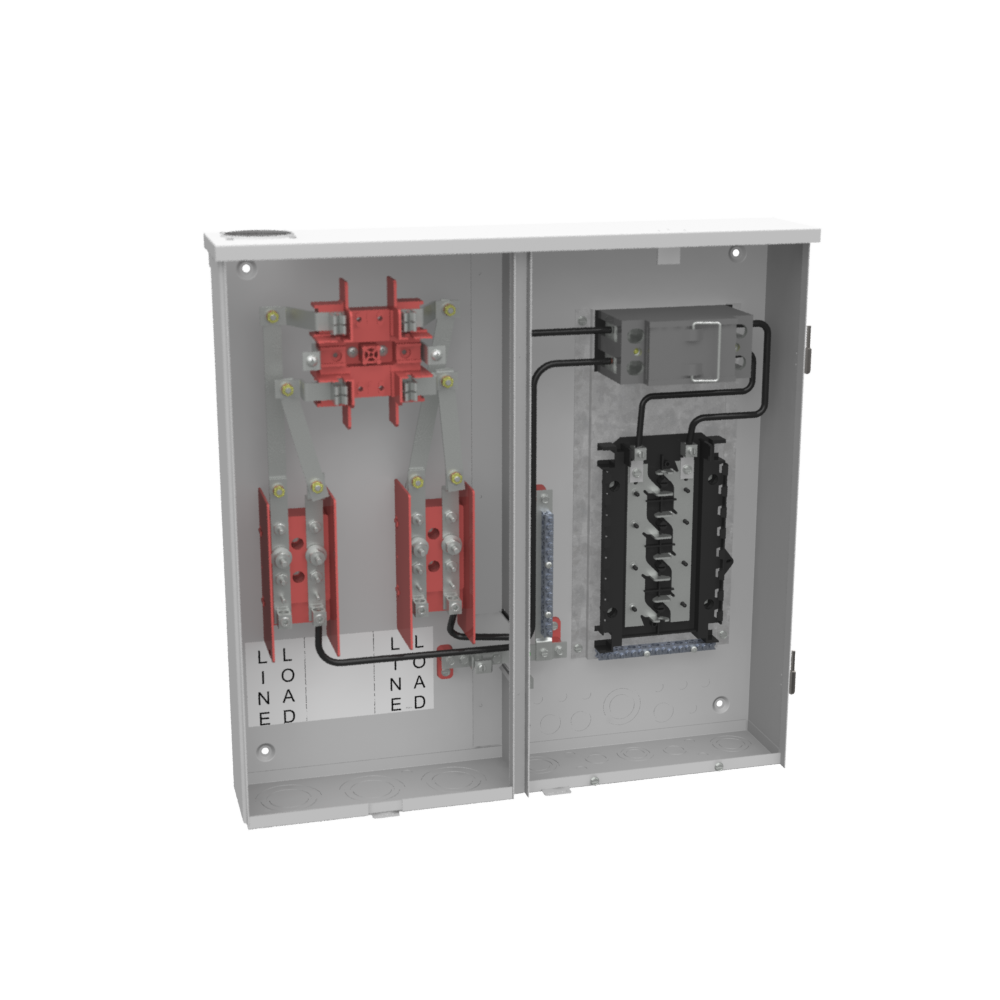

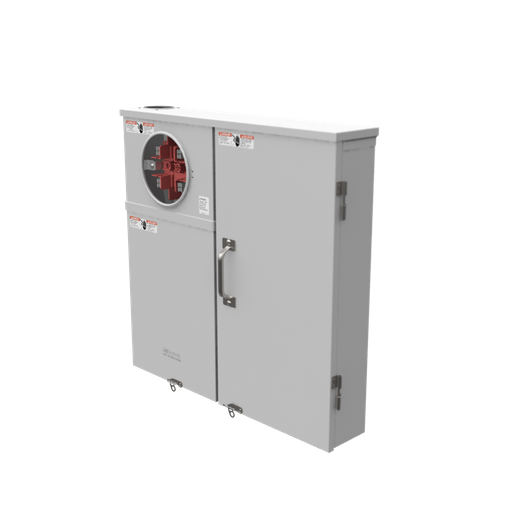

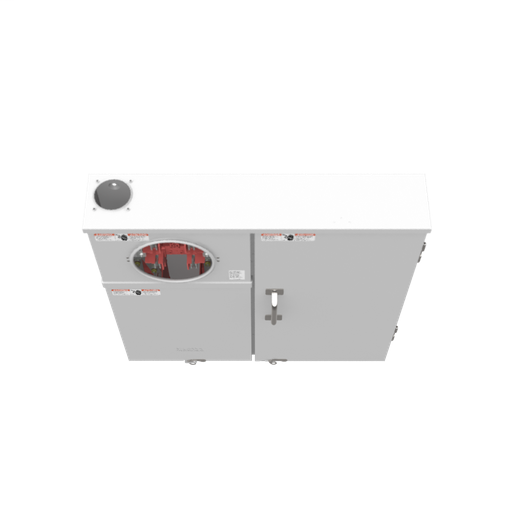

Milbank U214MTBPL Meter/Main W/Loadcenter

Product Description

The Milbank U214MTBPL Meter/Main W/Loadcenter features a ring type design suitable for various electrical applications. This meter main offers reliable monitoring and control of electrical loads. It is built from G90 galvanized steel with a powder-coated finish, ensuring durability and resistance to corrosion.

• UL approved for safety and compliance.
• Designed for both overhead and underground service types.
• Wire size accommodates 14 to 1/0 AWG (Line).

Product Highlights

This meter/main is ideal for installations that require an integrated load center combined with metering, suitable for residential or light commercial applications.

Product Information

Standard Information

• Manufacturer: Milbank Mfg. Co.
• Brand: Milbank Manufacturing

Technical Specifications

• UPC: 78457217886
• Size: twenty-five inches wide by four and five-eighths inches deep by twenty-four and three-fourths inches high
• Type: Ring
• Voltage Rating: 120/240 VAC at sixty hertz
• Current Rating: 100 amperes
• Enclosure: NEMA 3R
• Knockouts: (12) half-inch solid knockout, (6) half-inch to three-quarter-inch, (1) half-inch to one and one-quarter-inch, (3) three-quarter-inch to one and one-half inches
• Wire Size: 14 to 1/0 AWG (Line)
