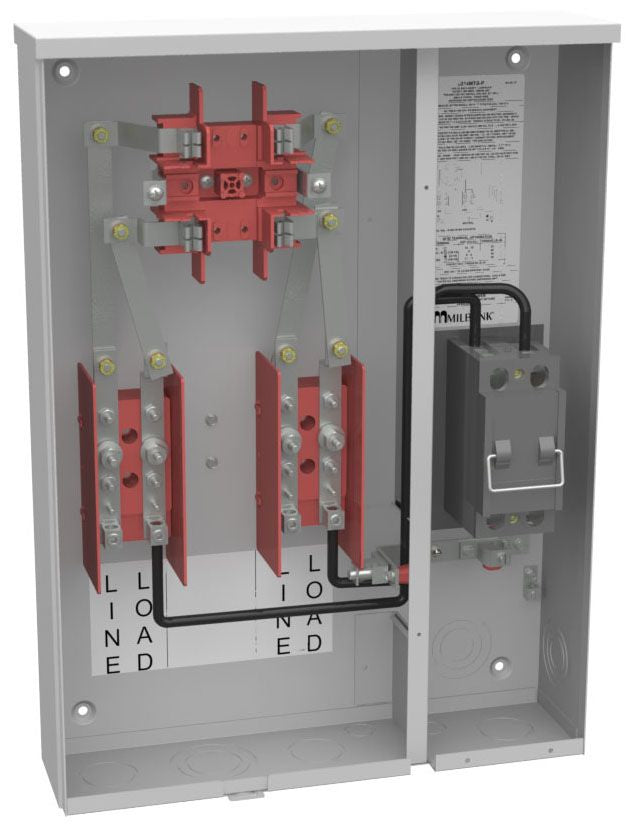

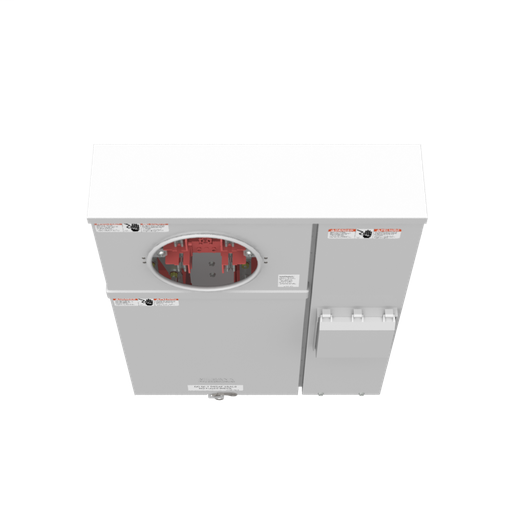

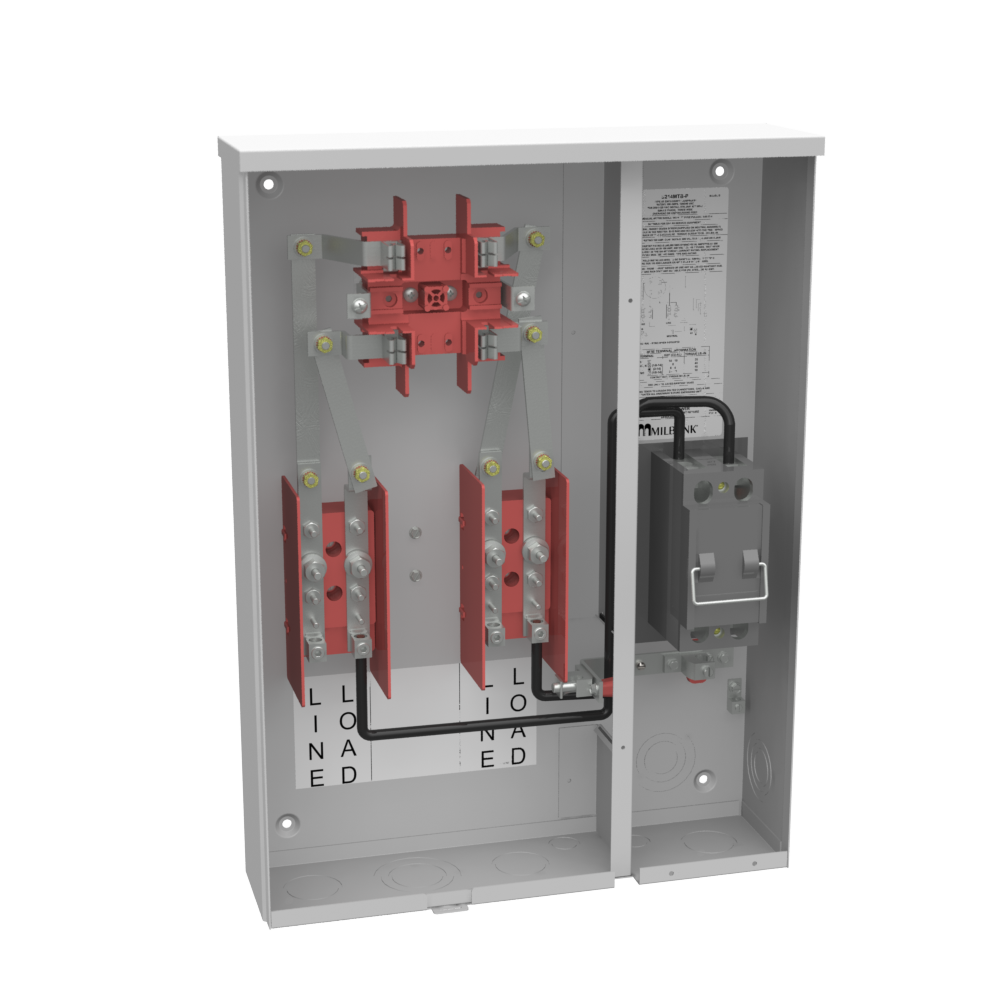

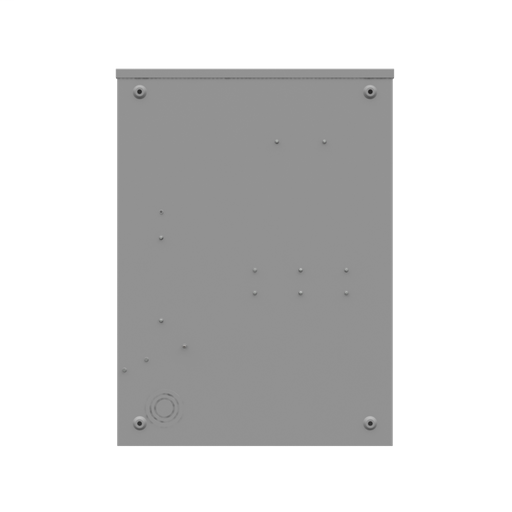

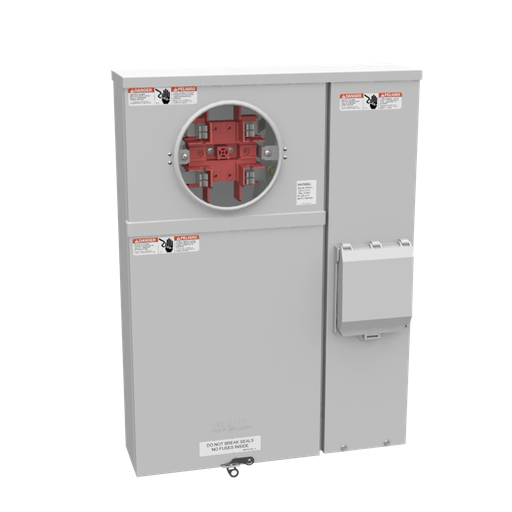

Milbank U214MTB-P 100A 4-Terminal Safety Socket

Product Description

The Milbank U214MTB-P 100A 4-Terminal Safety Socket is designed for metering applications. This socket is compact and suitable for both overhead and underground cable entry. It features a durable G90 galvanized steel enclosure that is powder coated for weather resistance.

• 100 Ampere current rating
• Surface mount installation
• UL listed for safety compliance

Product Highlights

This safety socket is ideal for various metering setups, providing reliable performance and lasting durability.

Product Information

Standard Information

• Brand: Milbank Mfg. Co.
• Model: U214MTB

Technical Specifications

• Amperage: 100 Amp
• Type: Ring, Self Contained Meter Main
• Size: 18 inches wide x 4.625 inches deep x 25 inches high
• Voltage Rating: 240 VAC
• Wire Size: 14 to 1/0 AWG (Line), 4 to 1/0 AWG (Load)
• Enclosure Material: Powder Coated G90 Galvanized Steel
• Knockouts: (2) 1/2 inch - 3/4 inch, (3) 1-1/4 inch - 1-1/2 inch
• Hub Type: Small Closing Plate
• Approval: UL
• Service Type: Overhead/Underground
• Circuit Configuration: 1-Phase 3-Wire
• Current Rating: 100 Ampere
