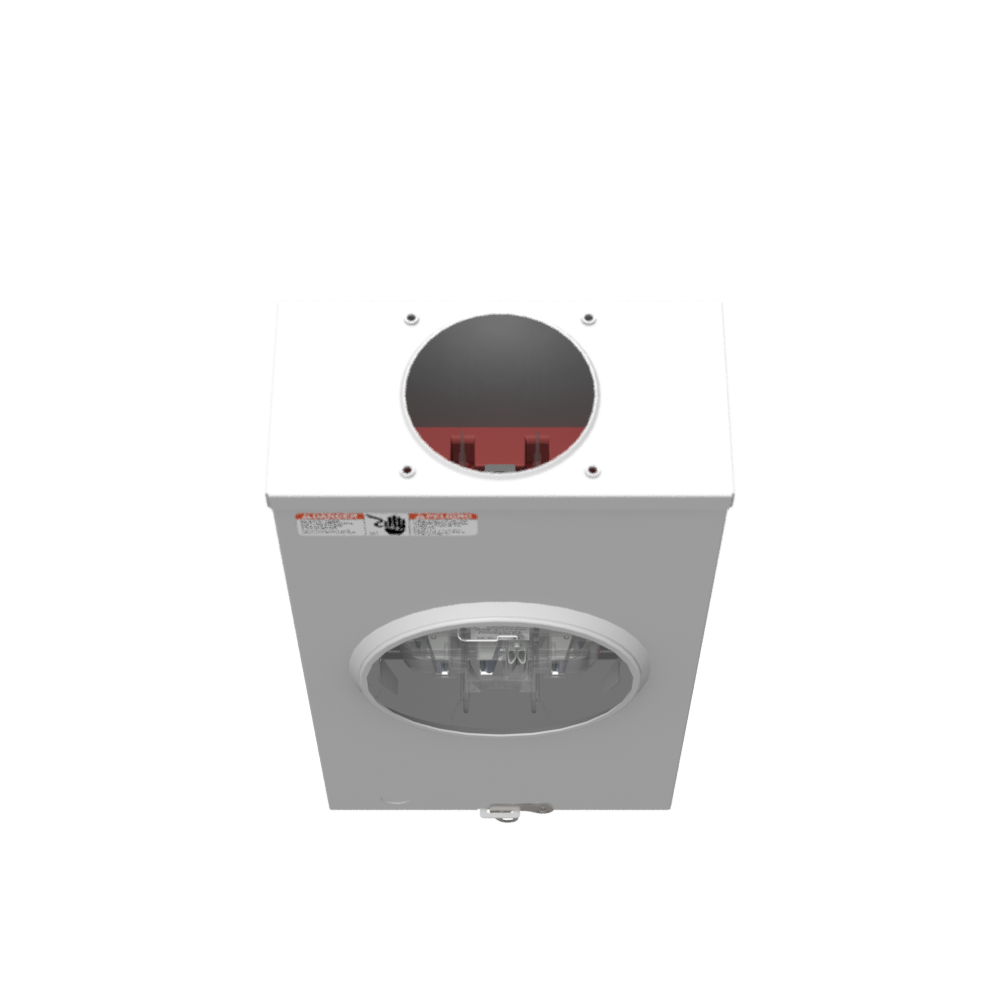

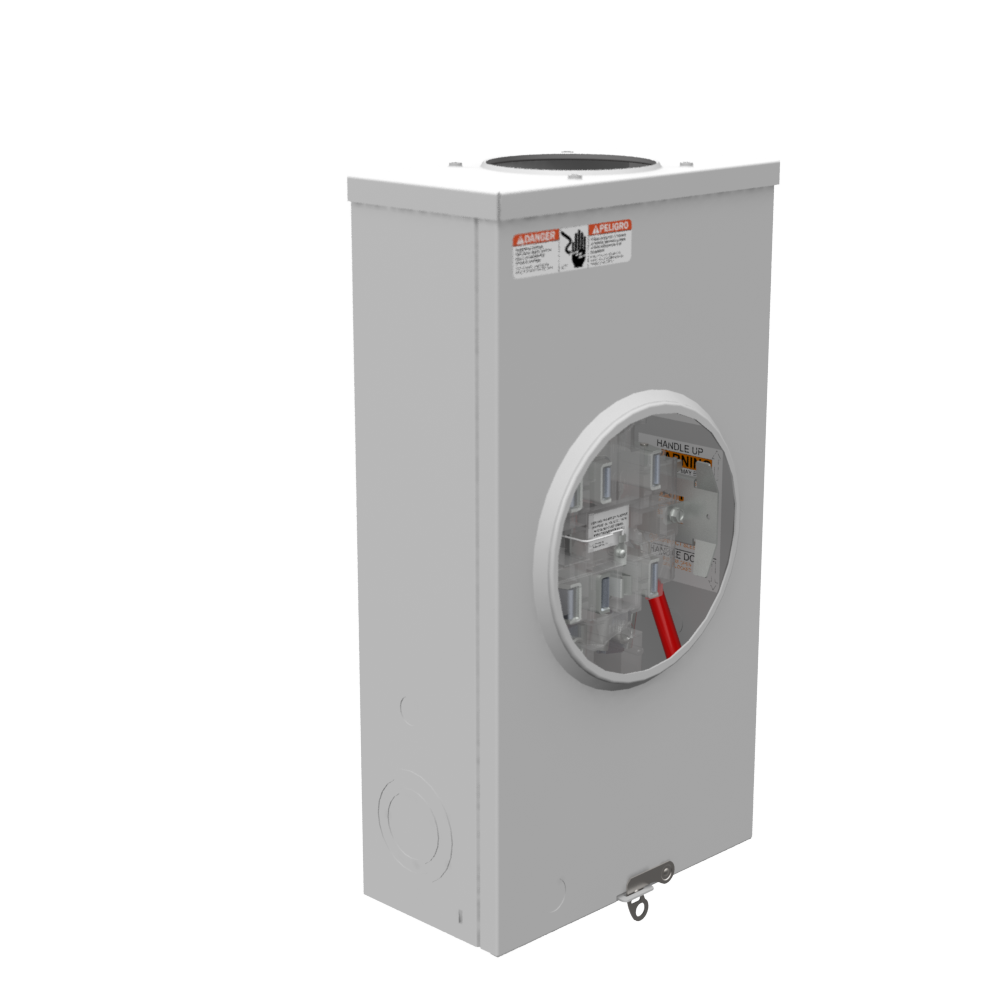

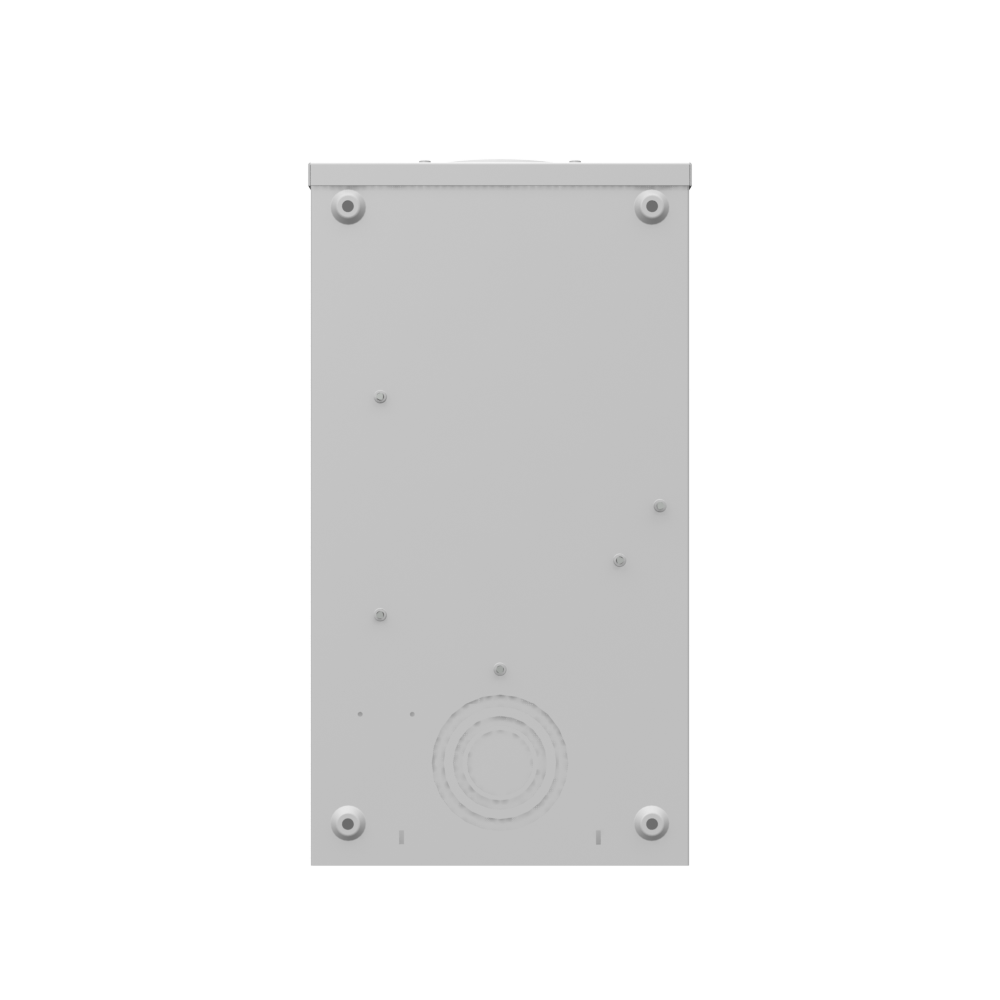

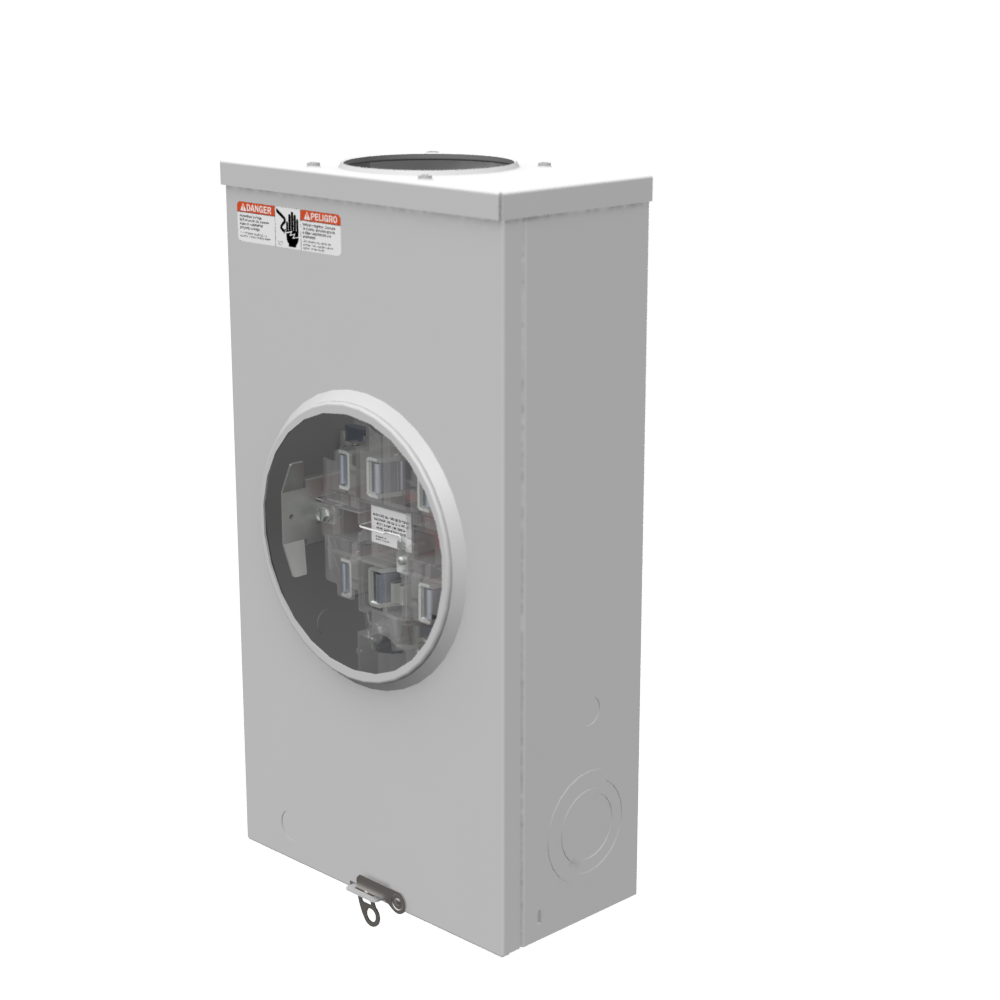

Milbank U2049-R Meter Socket 200A

Product Description

The MILBANK U2049-R is a 200A meter socket designed for meter socket applications. It features a ringless design with a lever bypass and is constructed from G90 galvanized steel with a powder coat finish. This meter socket is UL Listed and suitable for overhead cable entry.

• Rated for 200 continuous Amperes
• Features a lever bypass provision
• Constructed from G90 galvanized steel with powder coat finish

Product Highlights

This meter socket is ideal for use as a meter socket and is UL Listed.

Product Information

Standard Information

• Brand: MILBANK
• Manufacturer Part Number: U2049-R

Technical Specifications

• Amperage Rating: 200 Continuous Ampere
• Application: Meter Socket
• Brand Name: Milbank
• Bypass Provision: Lever Bypass
• Cable Entry: Overhead
• Main Breaker Size: No Main Breaker
• Material: G90 Galvanized Steel with Powder Coat Finish
• Equipment Ground: Grounding Stud
• Frequency Rating: 60 Hertz
• Hub/Closing Plate: Large Hub Opening
• Number of Jaws: 7 Terminal
• Line Side Wire Range: 6 AWG - 350 kcmil
• Load Side Wire Range: 6 AWG - 350 kcmil
• Mounting: Surface Mount
• Number of Main Breakers: 0
• Number of Meter Positions: 1 Position
• Number Of Receptacles: 0
• Phase: 3 Phase
• Standard: UL Listed;Type 3R
• Terminal: Lay in
• Type: Ringless Meter Socket
• Voltage Rating: 600 Volts Alternating Current
• Amps: 200
• Standards: California Proposition 65
• ENCLOSURE MATERIAL: POWDER COATED G90 GALVANIZED STEEL
• APPROVAL: UL
• ENCLOSURE: NEMA 3R
• CURRENT RATING: 200 AMPERE
• CIRCUIT CONFIGURATION: 3-PHASE
• SERVICE TYPE: OVERHEAD
• HUB TYPE: LARGE OPENING
• JAW(S): 7
• BYPASS SWITCH: LEVER BYPASS
• MODEL: U2049
• Category Level 1: Distribution Equipment & Accessories
• Category Level 2: Metering Equipment
• Category Level 3: Safety Socket Bypass Meter Sockets
• Manufactured By: Milbank
