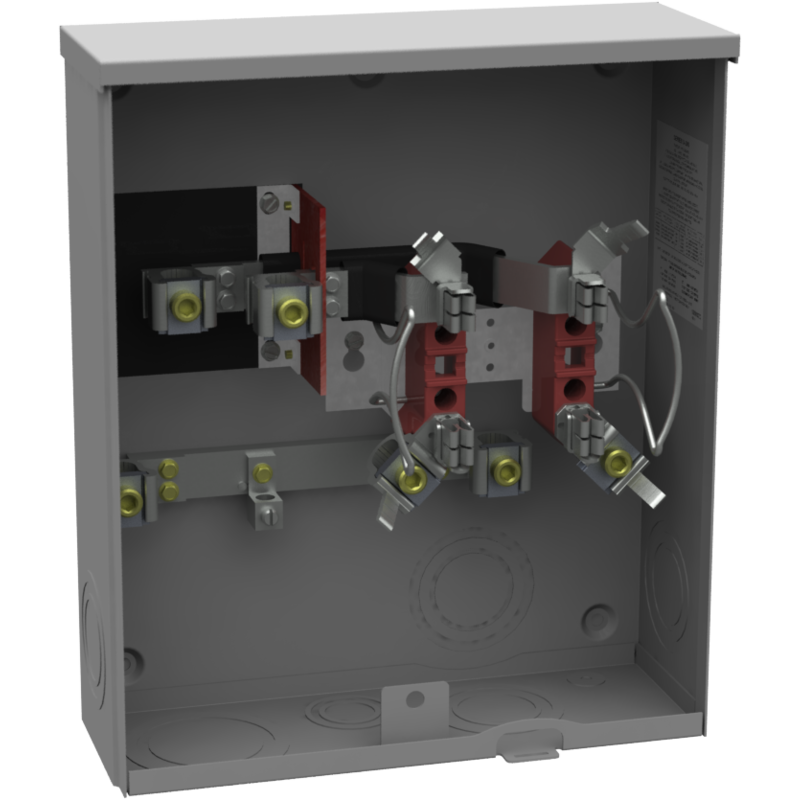

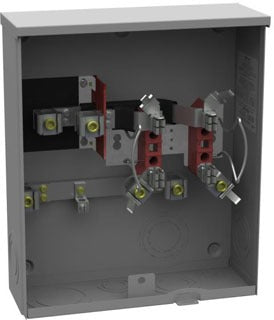

Milbank U1980-O-KK-BLG 200A Meter Socket

Product Description

The Milbank U1980-O-KK-BLG is a 200 Amp meter socket designed for power distribution. This ringless type socket features a plain top hub design and is suitable for underground service applications. It is constructed from G90 galvanized steel, ensuring durability and weather resistance. The socket includes provisions for brackets and supports a wire size of six AWG to 350 kcmil. Its compact dimensions, measuring thirteen inches in length, four and a half inches in width, and fifteen and a quarter inches in height, make it an ideal choice for various installations.

• Rated for 600 VAC at 60 Hz
• Surface mount design for easy installation
• UL approved for safety compliance

Product Highlights

This meter socket is designed for efficiency and reliability in power distribution systems.

Product Information

Standard Information

• Brand: Milbank Manufacturing
• Type: Ringless Meter Socket

Technical Specifications

• UPC: 78457270671
• Size: 13 inches L x 4.5 inches W x 15.25 inches H
• Voltage: 600 Volt
• Amperage: 200 Amp
• Material: Steel
• Standard: Type 3R, UL Listed
• Enclosure: G90 Galvanized Steel with Powder Coat Finish
• Hub Style: Plain Top
• Cable Entry: Underground with Side Wireway
