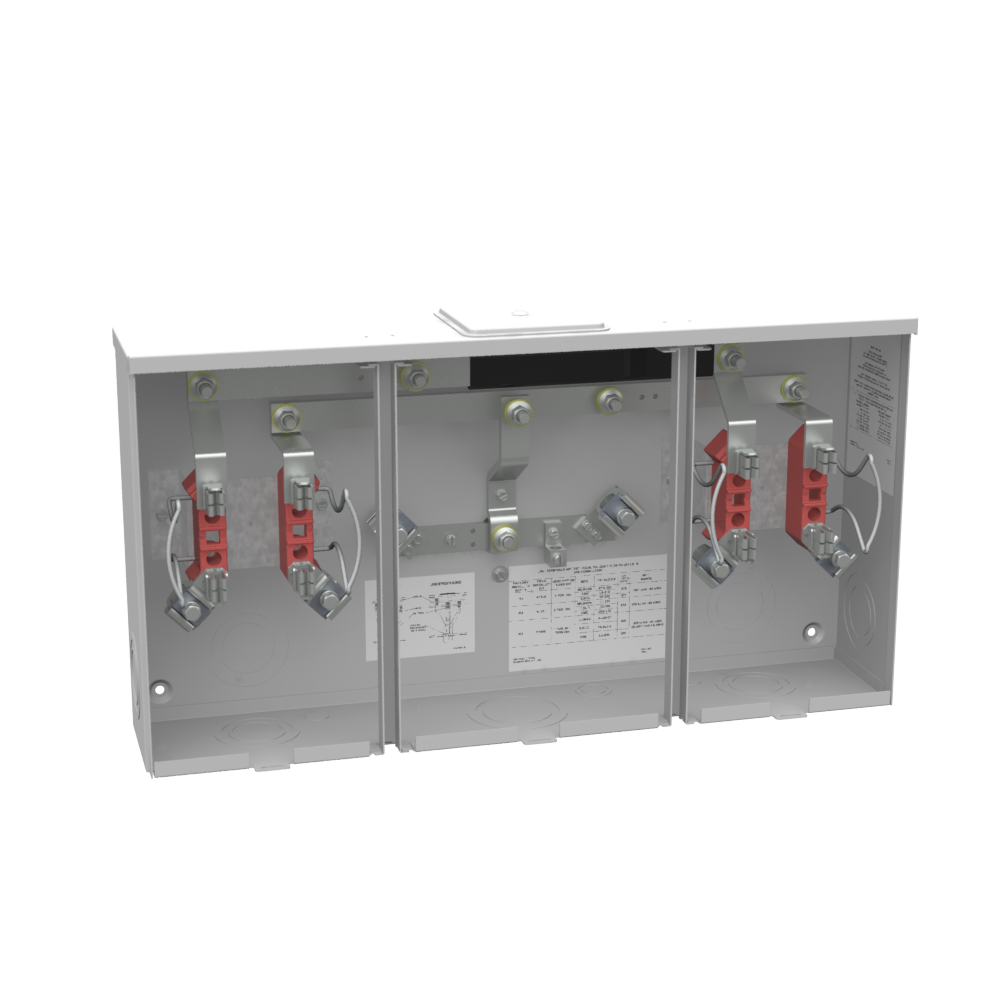

Milbank U1252-X Meter Socket 200 Amp

Product Description

The MILBANK U1252-X is a 200 Amp meter socket. It features a G90 galvanized steel enclosure with a powder coat finish and glass polyester insulation. Designed for overhead or underground cable entry with a center wireway, this ringless meter socket is UL Listed and suitable for surface mounting.

• Ringless meter socket
• Suitable for overhead or underground cable entry
• G90 galvanized steel enclosure with powder coat finish

Product Highlights

The MILBANK U1252-X meter socket is ideal for use as a meter socket.

Product Information

Standard Information

• Brand: MILBANK
• Manufacturer Part Number: U1252-X
• Country of Origin: United States

Technical Specifications

• Catalog Number: U1252-X
• Manufacturer: Milbank
• Brand: Milbank
• Country of Origin: United States
• Made in USA: Yes
• Amperage Rating: 200 Ampere
• Application: Meter Socket
• Bypass Type: No Bypass
• Cable Entry: Overhead or Underground with Center Wireway
• Enclosure: G90 Galvanized Steel with Powder Coat Finish
• Frequency Rating: 60 Hertz
• Insulation: Glass Polyester
• Mounting: Surface Mount
• Number of Jaws: 4 Terminal
• Phase: 1
• Standard: UL Listed;Type 3R
• UPC: 784572133303
• GTIN: 00784572133303
• Item Type: Ringless Meter Socket
• Voltage Rating: 300 Volts Alternating Current
• ECCN: EAR99
• UNSPSC: 39121102
• Main Breaker Size: No Main Breaker
• Material: G90 Galvanized Steel with Powder Coat Finish
• Equipment Ground: Triplex Ground
• Hub/Closing Plate: Large Closing Plate
• Knockouts: True
• Line Side Wire Range: 6 AWG - 350 kcmil
• Load Side Wire Range: 6 AWG - 350 kcmil
• Number of Main Breakers: 0
• Number of Meter Positions: 2 Positions
• Number Of Receptacles: 0
• Terminal: 3/8 Inch Stud
• Type: Ringless Meter Socket
• Height: 14.0 IN
• Length: 5.125 IN
• Width: 26.5 IN
• Amperage: 200 Amp
• Applications: Meter Socket
• Number of Phases: 1 Phase
• Number of Terminations: 4
• Terminal Type: Single Mechanical
• Voltage: 300 Volt
• Hub Style: Large Closing Plate
