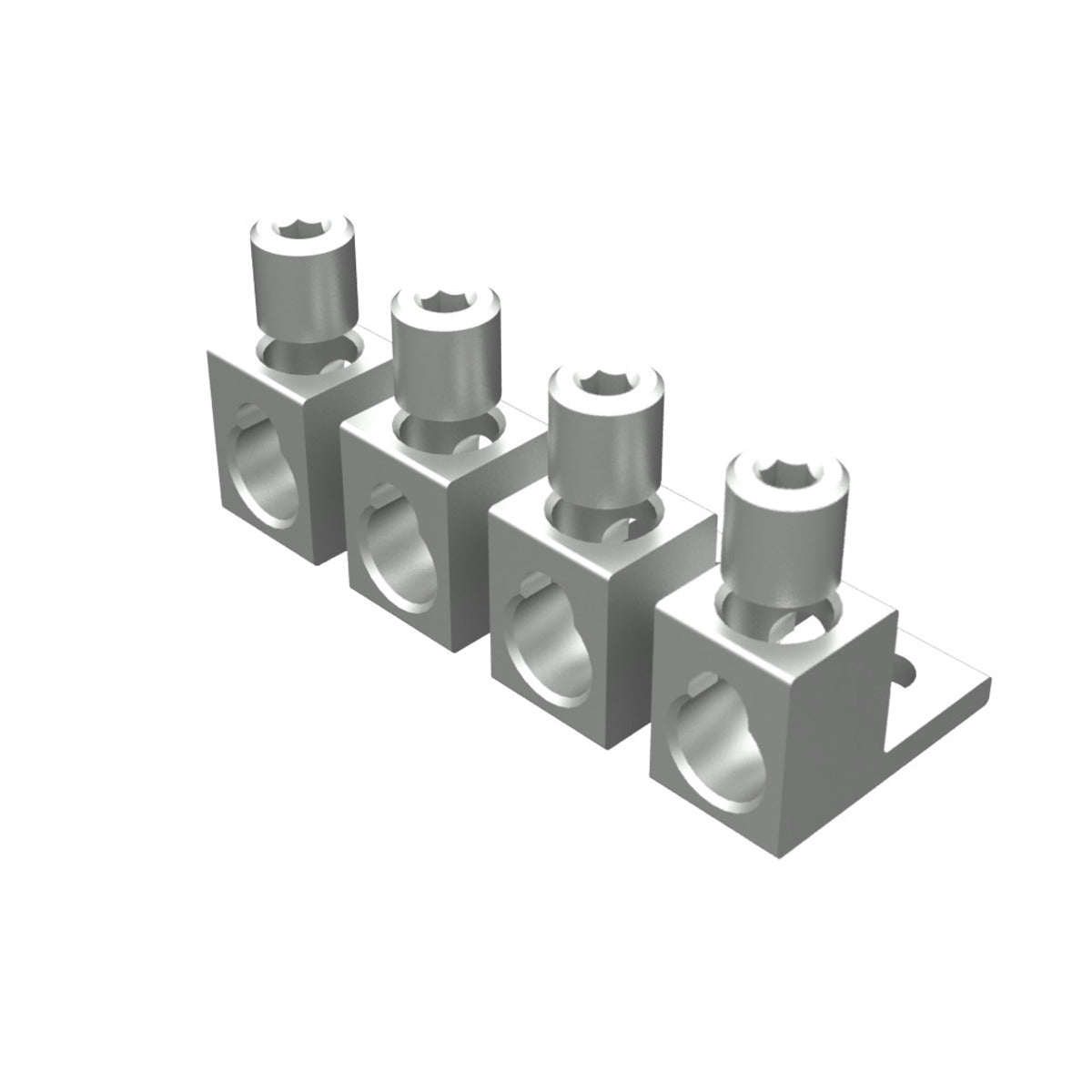

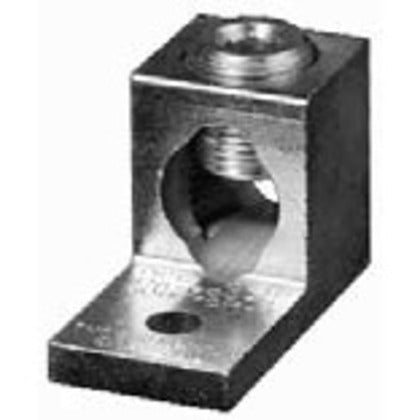

Milbank K4200 lug kit single 4-600kcmil or two 1 aught-250kcmil mechanical .5 stud hole 4 per kit

Product Description

The Milbank K4200 Wire Connector Kit is a metering accessory designed for secure mechanical connections. Constructed from durable aluminum, it features stud mounting and is UL Listed for safety. This kit accommodates a single conductor ranging from 4 AWG to 600 kcmil, or two conductors from 1/0 AWG to 250 kcmil. It is rated for temperatures up to 75 Degrees Celsius and supports voltage up to 600 Volts Alternating Current, making it suitable for various electrical applications.

• Accommodates single 4 AWG to 600 kcmil or two 1/0 AWG to 250 kcmil conductors.
• Features a mechanical connection type and stud mounting for secure installation.
• UL Listed, constructed from aluminum, and rated for 600 Volts AC and 75 Degrees Celsius.

Product Highlights

Metering accessory for secure mechanical wire connections, UL Listed, and suitable for a wide range of conductor sizes.

Product Information

Standard Information

• Brand: MILBANK
• Manufacturer Part Number: K4200
• Country of Origin: United States

Technical Specifications

• MPN: K4200
• Manufacturer: Milbank
• Brand: Milbank
• Country of Origin: United States
• Made in USA: Yes
• Application: Metering Accessory
• Conductor Range: 4 AWG to 600 kcmil or Two 1/0 AWG to 250 kcmil
• Connection Type: Mechanical
• Material: Aluminum
• Mounting Type: Stud
• Standard: UL Listed
• UPC: 784572161368
• GTIN: 00784572161368
• Product Type: Wire Connector Kit
• Temperature Rating: 75 Degrees Celsius
• Voltage Rating: 600 Volts AC
• ECCN: EAR99
• UNSPSC: 39121421
• Insulation: None
• Stud Hole Size: 0.5 inch
• Kit Quantity: 4
