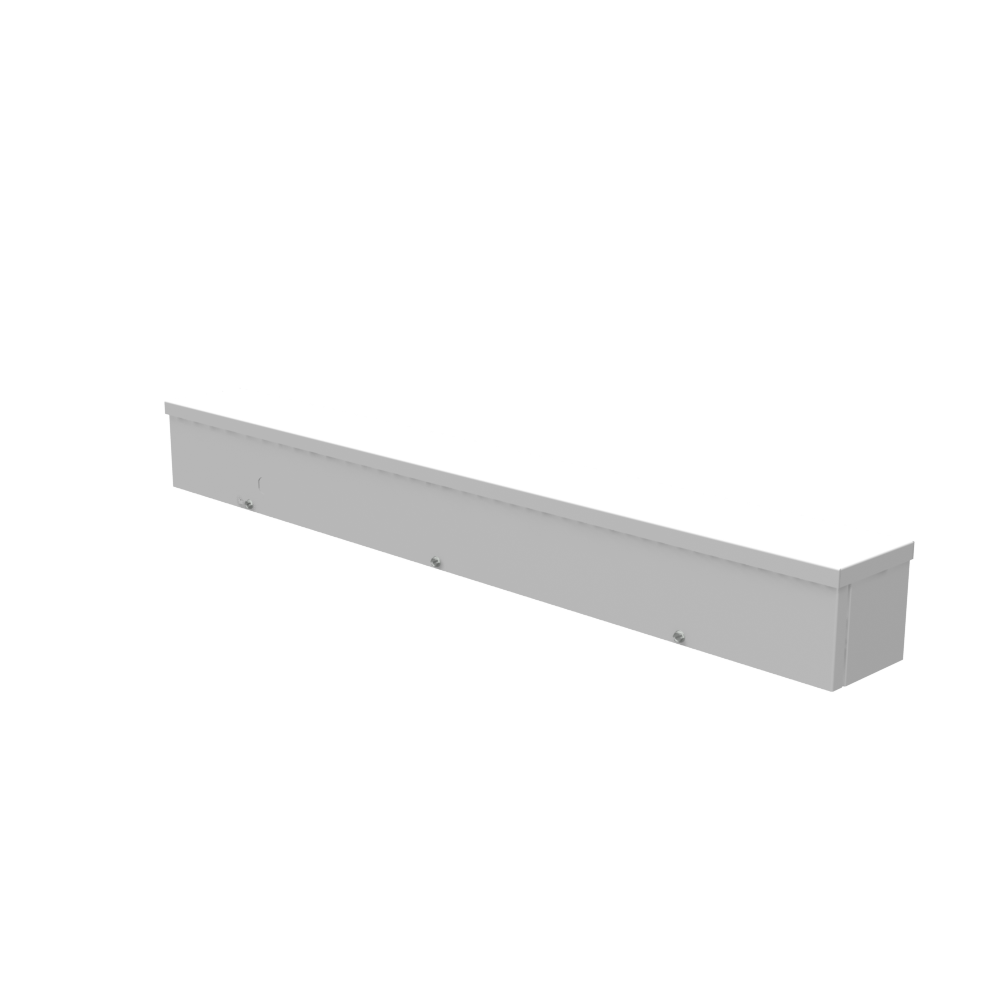

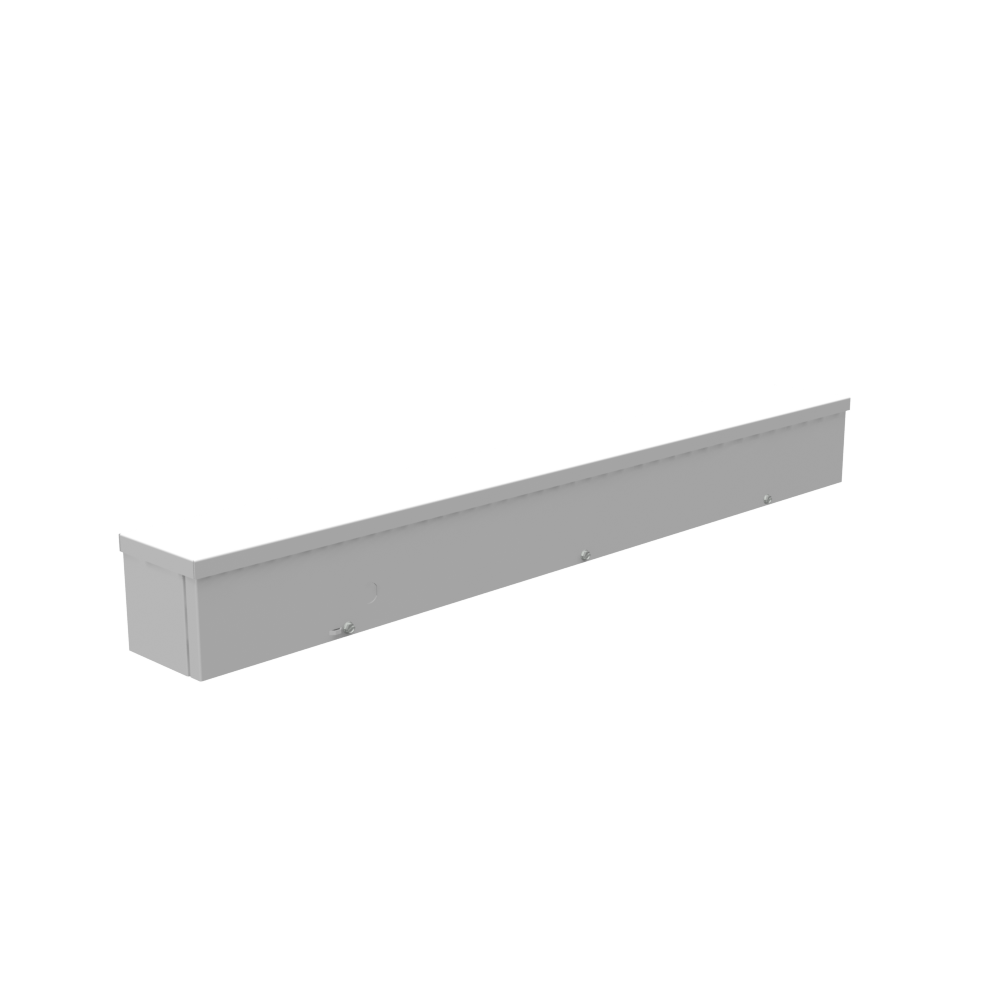

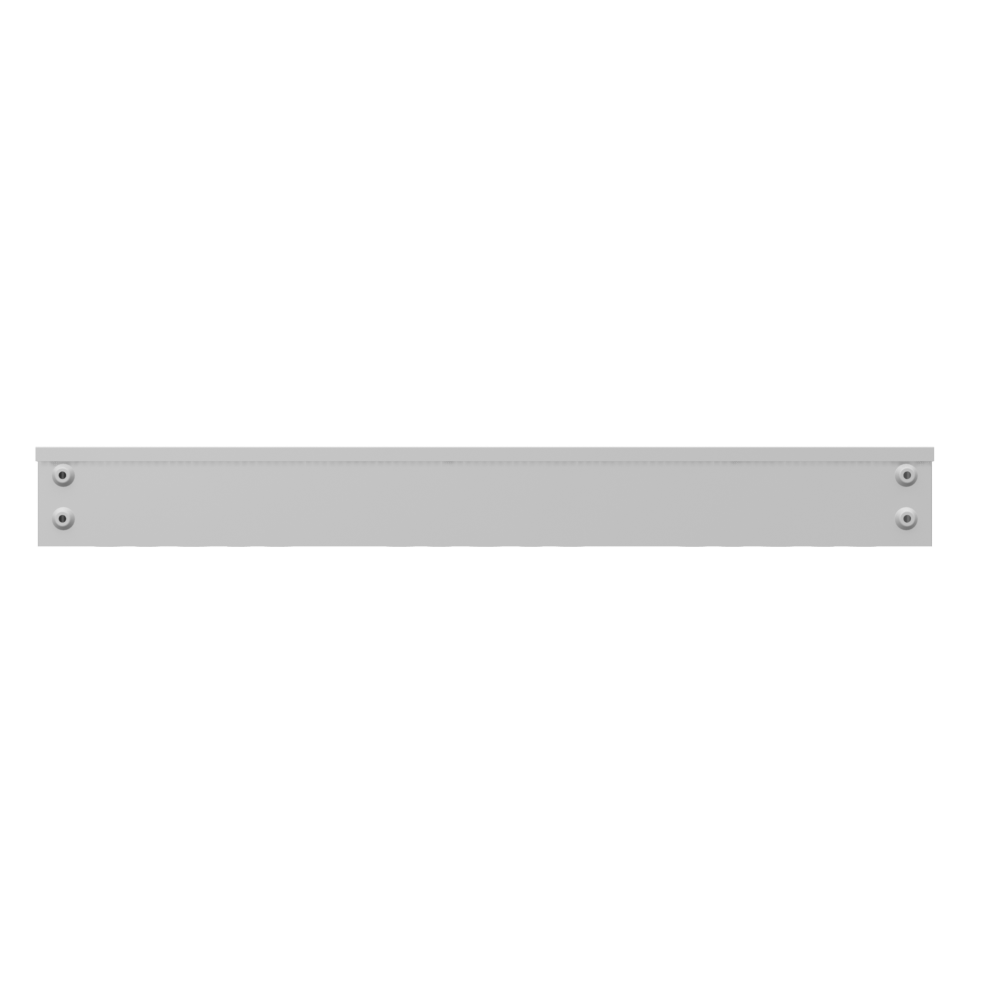

Milbank 4436-GSC3R Wireway 4x36x4

Product Description

The MILBANK 4436-GSC3R wireway is designed to protect wiring in outdoor installations against rain, sleet, or snow, and indoors against dripping water. It is constructed from G90 galvanized steel with an ANSI 61 gray powder coat finish. The cover fits under the drip shield top and is secured with plated steel screws.

• Designed to protect wiring in outdoor installations against rain, sleet, or snow, or indoors against dripping water
• Trough and cover are manufactured from 16 gauge G90 galvanized steel
• Cover is designed to fit under the drip shield top, and is held in-place with plated steel screws

Product Highlights

This wireway features knockouts, embossed mounting holes, and a screw cover for secure and versatile installation.

Product Information

Standard Information

• Brand: MILBANK
• Manufacturer Part Number: 4436-GSC3R
• Country of Origin: US - United States

Technical Specifications

• Application: Wireway
• Brand Name: Milbank
• Cover Type: Screw Cover
• Enclosure: Outdoor Enclosure
• Finish: ANSI 61 Gray Powder Coat Finish
• Height: 4.0 IN
• Knockouts: True
• Length: 36.0 IN
• Material: G90 Galvanized Steel
• NEMA Rating: Type 3R
• Nominal Cross Section: 4x4
• Special Features: KeyLockingCylinderLatchProvision
• Standard: UL Listed
• Straight Section Length: 36
• Type: Wiring Trough
• Width: 4.0 IN
• Number of Knockouts: 5
• Standard & Approvals: UL 870, cUL, RoHS Compliant
• Catalog ID: MLB4436-GSC3R
• Series: GS3R
• ECCN: EAR99
• UNSPSC: 39131710
