MIFAB MI-HUB-42 Regular Shielded No-Hub Coupling

Product Description

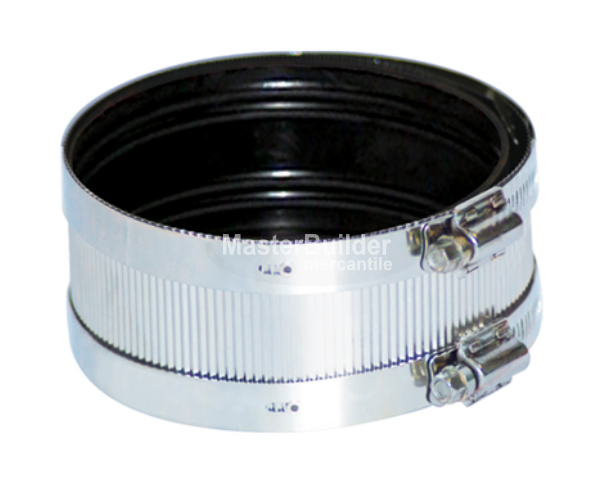

The MIFAB MI-HUB-42 is a four inch by two inch regular shielded no-hub coupling designed for connecting no-hub cast iron pipes and fittings. This coupling provides a reliable seal between connected pipes. It incorporates a stainless steel protective shield and a mechanical interlocking clamp for secure connections. Tightening requires a five sixteenths inch hex head driver.

• Features a stainless steel protective shield.

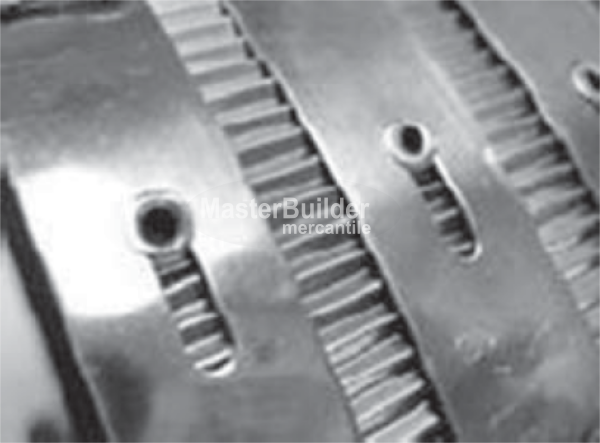

• Employs a mechanical interlocking clamp design.

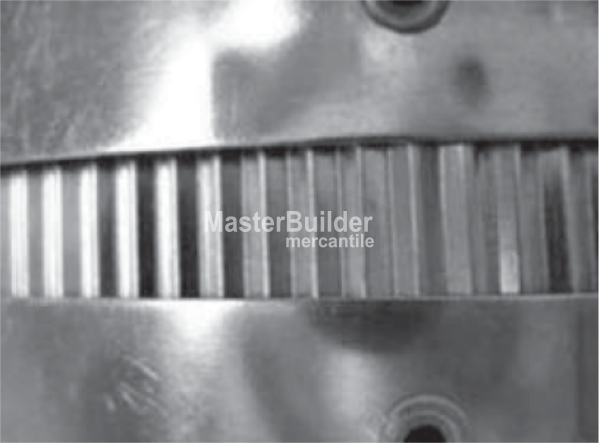

• Utilizes a formed gasket design.

Product Highlights

This coupling is designed for durability and reliability in plumbing applications, making it suitable for various installations.

Product Information

Standard Information

• Brand: MIFAB
• MPN: MI-HUB-42

Technical Specifications

• Gasket Material: Elastomeric compound meeting ASTM C-564
• Bands Material: Type 301 AISI stainless steel, minimum tensile 165,000 psi
• Eyelets Material: Type 301 AISI stainless steel

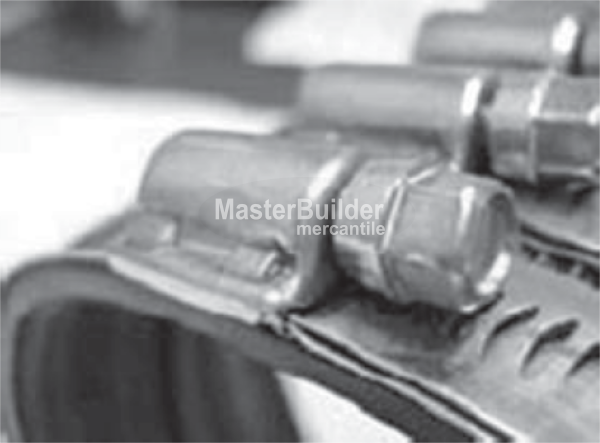

• Screw Housing Material: Type 304 AISI stainless steel

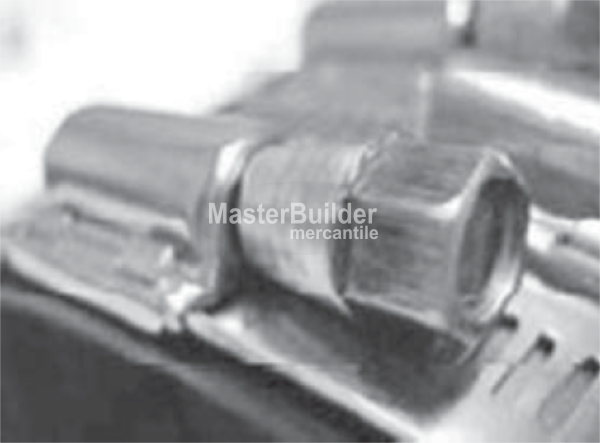

• Screws Material: Type 305 AISI stainless steel, five sixteenths inch hex head/shoulder
• Shield Material: Type 301 AISI stainless steel
• Water Pressure Rating: Maintains four point three psi of water pressure
• Torque Requirement: Tighten bolts to sixty inch pounds minimum/maximum torque
