Midwest Tool rs45508c mslc 400a ringless 31x33

Product Description

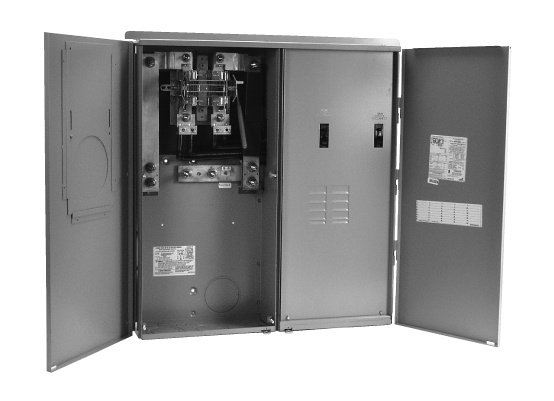

The MIDWEST TOOL RS45508C is a surface mount service equipment with a metered ringless design. It has a current rating of 400 Ampere and a 1-Phase circuit configuration. Constructed from G90 galvanized steel with a zinc coated finish and a NEMA 3R enclosure. This unit is UL approved and adheres to NEMA and NEC standards.

• Surface Mount Service Equipment
• Metered Ringless
• 400 Ampere

Product Highlights

This service equipment is ideal for residential and mobile home applications, providing a durable and corrosion-resistant solution for service entrance needs.

Product Information

Standard Information

• Brand: MIDWEST TOOL
• Manufacturer Part Number: RS45508C
• Country of Origin: UKN

Technical Specifications

• Type: Metered Ringless
• Current Rating: 400 Ampere
• Circuit Configuration: 1-Phase
• Wire Size: 1 AWG to 300 KCMIL Stranded (Copper/Aluminum, Load 1), 1 AWG to 300 KCMIL Stranded (Copper/Aluminum, Neutral N1), 6 to 2/0 AWG (Copper/Aluminum, Ground)
• Material: G90 Galvanized Steel
• Finish: Zinc Coated
• Enclosure: NEMA 3R
• Approval: UL
• Applicable Standard: NEMA, NEC
• Voltage Rating: 120/240 V
• Mounting: Surface
• Amperage: 400 Amp
• Number of Phases: 1 Phase
• Brand Name: Midwest
• Cable_Entry: UG
• Disconnect_Type: Breaker
• Number_Of_Cutouts: 1
• Number_Of_Spaces: 8
• Phase: 1
• Standard: UL Listed
• Sub_Brand: Midwest
• Number of Circuits: 8
• Wiring Configuration: Series
• Feed Type: Underground
• Mounting Type: Surface
• Enclosure Type: NEMA 3R
• Housing Material: G90 Galvanized 16 ga Steel
• Includes: Breaker
• Catalog Number: RS45508C
• UPC: 784567208658
• Metering: Ringless
• Feed: Underground
• AIC: 22,000
• Amps: 400.0 A
• Circuit Protection: Yes
• Hub Provision: No
• Additional Breaker Spaces Per Head: 8
• Load Center: LC88PC
• Loop Feed: No
• Volts: 120/240
