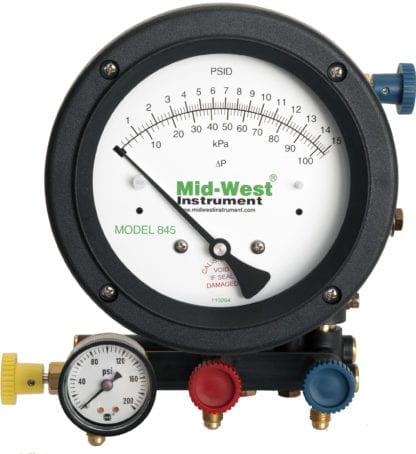

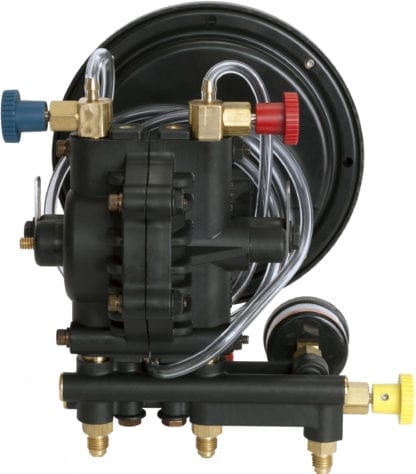

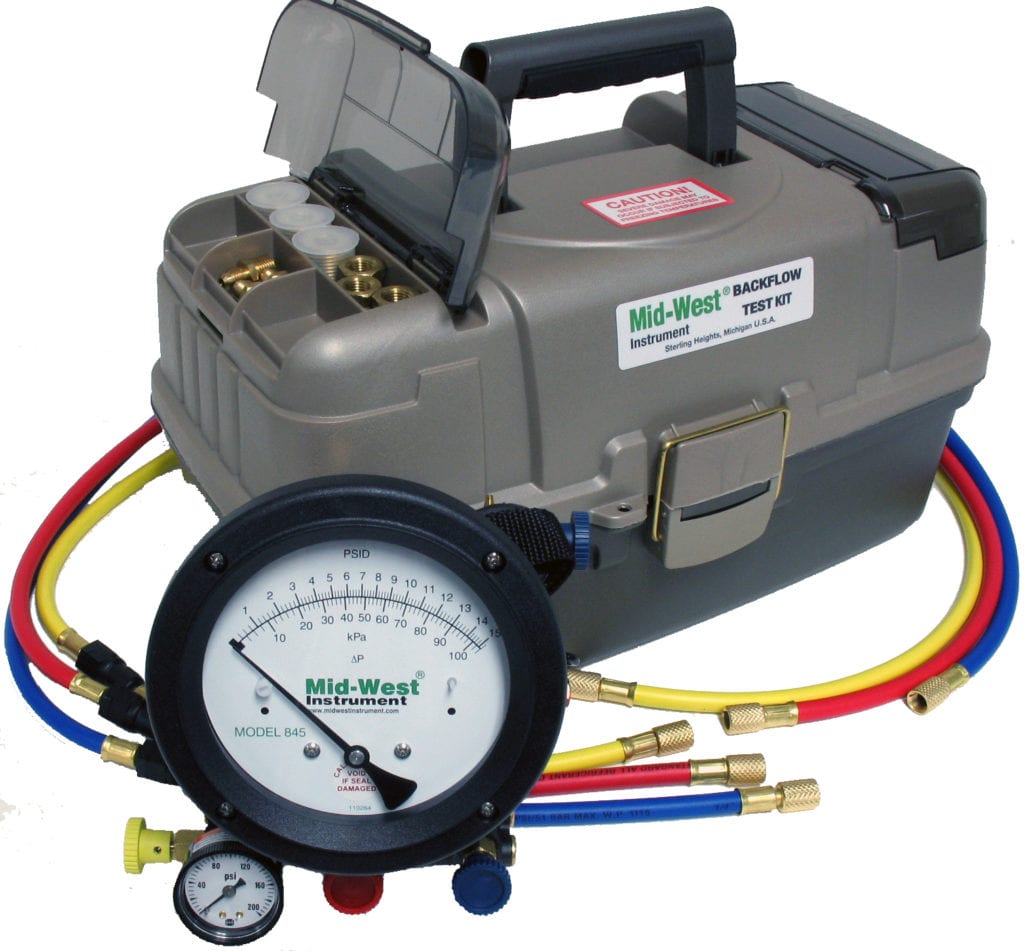

Midwest Instruments 845-5 5-Valve Backflow Test Kit

Product Description

The MIDWEST INSTRUMENTS 845-5 five-valve backflow prevention test kit tests all brands of reduced pressure principle, pressure vacuum breaker, and double check valve backflow prevention assemblies. It performs all test procedures recommended by ASSE, AWWA, CSA, FCCC and HR-USC, and NEWWA. The 845-5 is on the list of Acceptable gauges from FCCC & HR-USC and CA-NV AWWA.

• Over 30 Years of Input from Backflow Technicians
• (5) Valve Test Kit
• Specially Designed for Testing Backflow Prevention Assemblies

Product Highlights

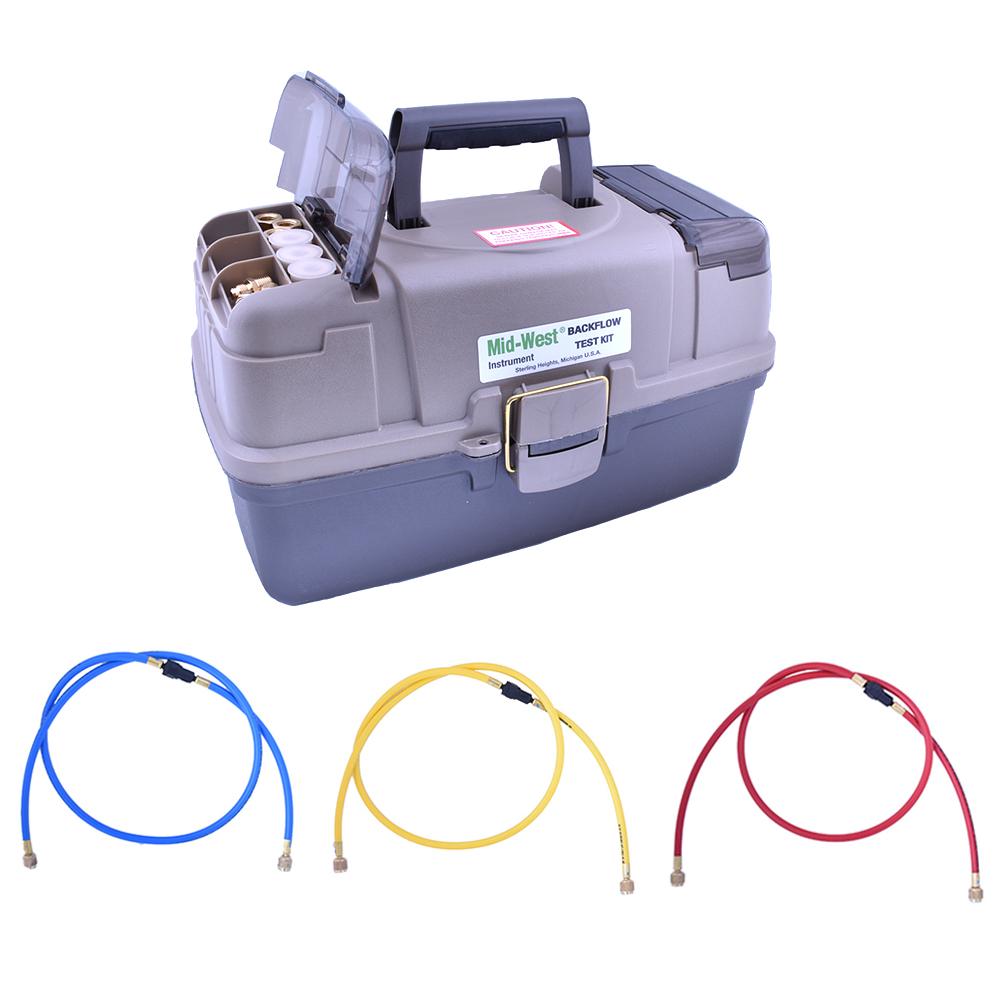

This kit is protected with 90 micron filters to minimize plugging with scale and has soft-seated brass needle valves with replaceable valve seats. It includes a durable molded plastic carrying case and laminated test procedures.

Product Information

Standard Information

• Brand: MIDWEST INSTRUMENTS
• Manufacturer Part Number: 845-5
• Country of Origin: USA

Technical Specifications

• ΔP RANGE: 0-15 PSID / 0-100 KPA
• Gauge Type: Diaphragm Differential Pressure
• Dial Size & Range: (4 1/2") 0-15 PSID / 0-100 KPA
• Differential Pressure Accuracy: ± .2 P.S.I.D. (Descending)
• Working Pressure: 200 PSIG
• Body Material: Glass Reinforced Engineering Thermoplastic
• Wetted Internals: EP Elastomers, Brass and 316 S.S. Metal Parts
• Line Pressure Gauge: 1 1/2" 0-200 PSIG
• Hoses with Inline Filters & Schrader: ¼” brass coupler End Fittings
• Hose Length: Three (3) each / 5' long (color-coded)
• Bleed Tube: One each / 4' long clear bleed tube.
• Adaptor Fittings: (3) sets of brass fittings provided for hookup to all standard size test cocks
• Gauge Weight: 3.6lbs / 1.6kg
• Case: Durable Molded Plastic
• Size: 18 1/2"L x 9"W x 9 3/4"H
• Temperature Limitations: Maximum 150°F/65°C
• Dial size: 4-1/2"
• Differential pressure range: 0-15 PSID / 0-100 KPA
• Carrying case: Durable molded plastic tacklebox
