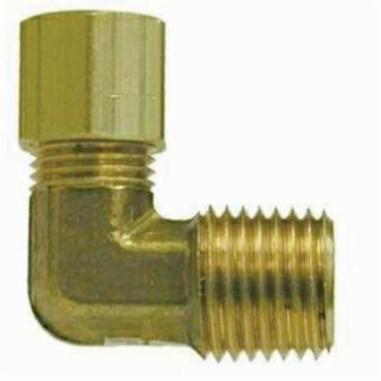

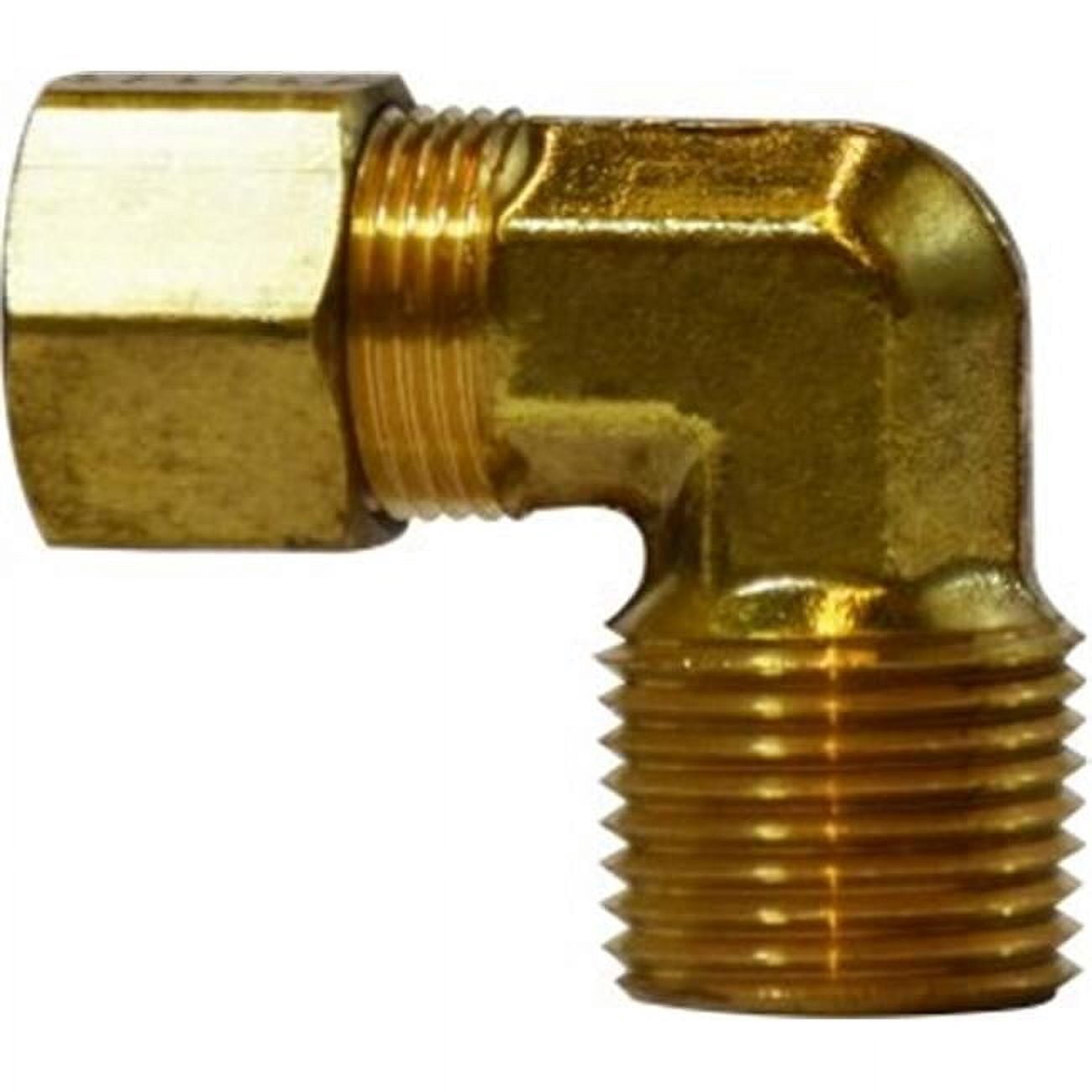

Midland Metal 18224 Brass 1/4 x 1/8 Comp x MIP Elbow Pack of 10

Product Description

Midland Metal 18224 is a brass 90-degree compression-to-MIP elbow fitting supplied as a pack of 10. The fitting connects a 1/4 inch tube (compression) to a 1/8 inch male iron pipe (MIP) thread and is intended for plumbing, irrigation, pneumatic and low- to medium-pressure tubing applications. The fitting is forged, compatible with copper, aluminum and thermoplastic tubing, and is rated to 300 psi at -65 to 250 F.

• 90-degree elbow, 1/4 in tube OD compression x 1/8 in MIP (male iron pipe) connection
• Made of brass (forged); nominal size 1/4 x 1/8; body size 0.37 in with 0.6 x 0.75 in center-to-end
• Pressure rated 300 psi; temperature range -65 to 250 F; compatible with copper, aluminum and thermoplastic tubing

Product Highlights

Forged brass 90-degree compression-to-MIP elbow, 1/4 x 1/8 nominal size, 300 psi, -65 to 250 F; pack of 10.

Product Information

Standard Information

• Brand: MIDLAND METAL
• Manufacturer Part Number: 18224
• Country of Origin: Import

Technical Specifications

• Brand: Midland Metal
• MPN: 18224
• Product Type: Elbow fitting (90 degree)
• Material: Brass
• Material Grade: CA377 (specified on some listings)
• Method of Manufacture: Forged
• Nominal Size: 1/4 x 1/8
• Connection Size 1: 1/4 in (tube OD)
• Connection Type 1: Compression
• Connection Size 2: 1/8 in
• Connection Type 2: Male iron pipe (MIP)
• End Style: Compression x MIP
• Thread: 7/16-24 x 1/8-27
• Pressure Rating: 300 psi
• Temperature Range: -65 to 250 F
• Compatible With: Copper, aluminum and thermoplastic tubing
• Body Size: 0.37 in
• Center to End: 0.6 x 0.75 in
• Dimensional Tolerance: +/-0.02 on all dimensions
• Package Quantity: 10
• Category: Pipe fittings / Hose and pipe fitting
• Manufacturer: Midland Metal Manufacturing
