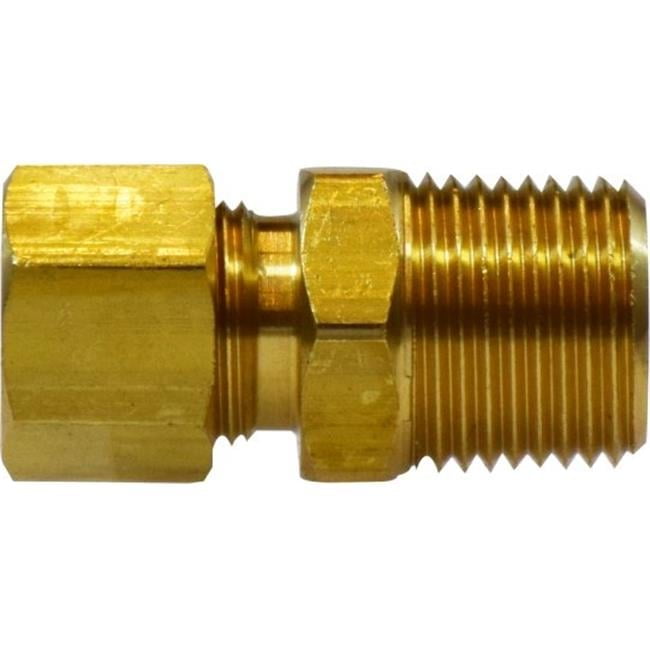

Midland Metal 18193 Male Adapter 1/2 x 1/4 Comp x MIP (Pack 1)

Product Description

Midland Metal 18193 is a brass compression-to-male NPTF (MIP) adapter that connects 1/2 inch tube outside diameter to 1/4 inch male threads. The straight connector features 11/16-20 x 1/4-18 threads, a 0.68 inch hex for tightening, and a center-to-end length of 1.22 inches. It is rated to 200 psi and -65 to 250 °F and is suitable for copper, aluminum, and thermoplastic tubing in plumbing and irrigation applications.

• Brass construction; compression connection (1/2 in tube OD) to 1/4 in male NPTF/MIP thread
• Thread size 11/16-20 x 1/4-18 with 0.68 in hex and 1.22 in center-to-end dimension
• Pressure rating 200 psi; temperature range -65 to 250 °F; compatible with copper, aluminum, and thermoplastic tubing

Product Highlights

Brass compression x MIP male adapter for 1/2 in OD to 1/4 in male threads; 11/16-20 x 1/4-18 thread; 200 psi; -65 to 250 °F; 1.22 in center-to-end.

Product Information

Standard Information

• Brand: MIDLAND METAL
• Manufacturer Part Number: 18193

Technical Specifications

• Brand: Midland Metal
• Manufacturer Part Number (MPN): 18193
• Product Type: Male Adapter
• Connection Size 1: 1/2 in (tube outside diameter)
• Connection Type 1: Compression
• Connection Size 2: 1/4 in
• Connection Type 2: Male NPTF (MIP)
• Thread Size: 11/16-20 x 1/4-18
• Hex Size: 0.68 in
• Material: Brass
• Compatible Tubing: Copper, aluminum, thermoplastic tubing
• Pressure Rating: 200 psi
• Temperature Range: -65 to 250 °F
• Center to End: 1.22 in
• Category: Brass Fittings
• Fitting Type: Compression adapter
