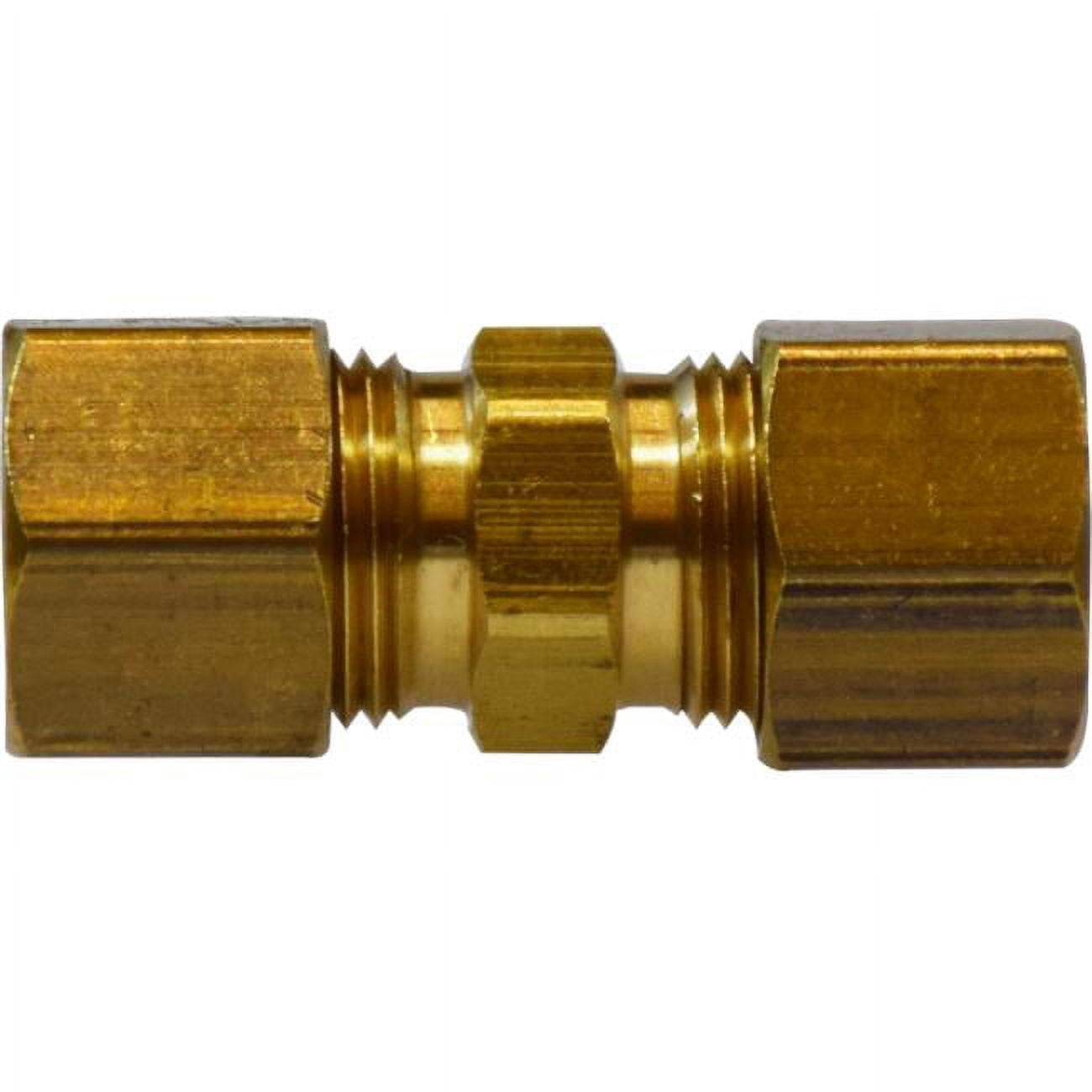

Midland Metal 18068 Compression Tube Union (Nominal 12) 18-068

Product Description

Midland Metal 18068 is a brass compression tube union designed to join tube sections in plumbing and fluid systems. The fitting features a nominal 12 size, 068 hex profile, and compression connections on both ends. It is rated for 200 psi working pressure and a temperature range of 65 to 250 deg F, and is suitable for use with copper, aluminum, and thermoplastic tubing.

• Brass compression union with 068 hex design and compression connections on both ends
• Rated working pressure: 200 psi; temperature range: 65 to 250 deg F
• Compatible with copper, aluminum, and thermoplastic tubing; nominal 12 (approximately 1/2 in) size

Product Highlights

Brass 1/2 in compression union, 200 psi rating, 65 to 250 deg F temperature range

Product Information

Standard Information

• Brand: MIDLAND METAL
• Manufacturer Part Number: 18068
• Country of Origin: Taiwan, Province of China

Technical Specifications

• Brand: Midland Metal
• Manufacturer Part Number: 18068
• Product Type: Compression Tube Union
• Size: Nominal 12 (approximately 1/2 in)
• Connection Type: Compression | Compression
• Material: Brass
• Pressure Rating: 200 psi
• Temperature Range: 65 to 250 deg F
• Hex Size: 068 hex (0.68 in)
• Thread Size: 11/16-20
• Center-to-Center Dimension: 1.25 in
• Weight: 0.160 lb
• For Use With: Copper, aluminum, and thermoplastic tubing
• Origin: Taiwan, Province of China
• Package Quantity: 1
