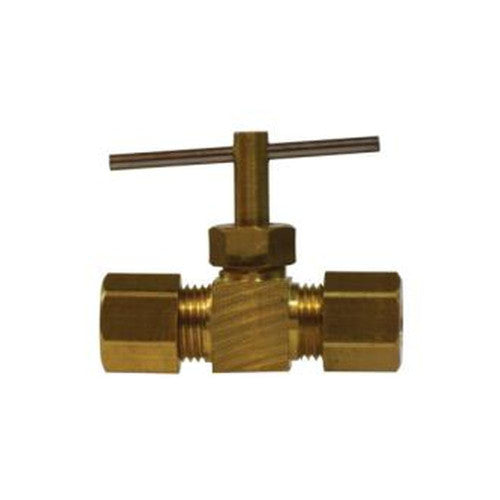

Midland Industries 46021 Needle Valve 1/4 in Compression

Product Description

The MIDLAND INDUSTRIES 46021 Needle Valve features a 1/4 in nominal size and compression connection. Designed for use on instrumentation, hydraulic, and pneumatic systems. It has a maximum working pressure of 150 PSI and is made with a brass body. This valve is provided with steel handles and metal-to-metal seats with fine-thread screwdown.

• 1/4 in nominal size
• Compression connection type
• Maximum working pressure of 150 PSI

Product Highlights

The MIDLAND INDUSTRIES 46021 needle valve is suitable for instrumentation, hydraulic, and pneumatic systems.

Product Information

Standard Information

• Brand: MIDLAND INDUSTRIES
• Manufacturer Part Number: 46021

Technical Specifications

• Brand: MIDLAND INDUSTRIES
• Body Material: Brass
• Connection Type: Compression
• Nominal Size: 1/4 in
• Pressure Class: 150 lb
• Pressure Rating: 150 psi
• Top to Inlet Center: 1.12 in
• Shape (Orientation): Straight
• Ends Configuration: 1/4in Tube Compression, 1/4in Tube Compression
• Material(s): Brass
• Operating Pressure [max]: 150 psi
• Product Type: Needle Valves
• Size: 1/4"
